TECH LIGHTING 700FJHEL2524S-LED FJ-HELIOS 25 24 IN SN-LED LED Lighting Solution

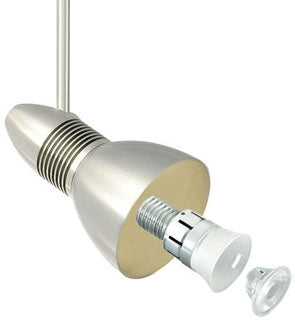

The TECH LIGHTING 700FJHEL2524S-LED is a 6-watt directional LED head designed for precision lighting applications. Suitable for integration with lighting solutions offered by electrical distributors and switchgear suppliers, this fixture head features a field-replaceable LED module with a screw-in base, minimizing waste and simplifying maintenance. Its aluminum heat sink ensures effective thermal management, while the head's 360° rotation and 260° pivot capability provide flexible beam direction for targeted illumination. This product is ideal for indoor dry locations and compatible with a variety of accessory styles for customization.

Specifications

• Power Consumption: Initial 6 watts
• Color Temperature: 3000° K
• Lumens: 350 net lumens
• Lumens per Watt: 55 lms/watt
• Color Rendering Index: >85 CRI
• Rated Average Life: >30,000 hours to L70
• Beam Spread Options: 25° and 40°
• Candle Power: 25° - 748; 40° - 550
• Dimming: 10% with low-voltage electronic or magnetic dimmer
• Warranty: 5 years
• Product Weight: 0.29 lbs
• Dimensions: Length 2.2" (55 mm)
• ETL Listed for indoor dry locations

Features

• Field-replaceable LED lamp module included
• Aluminum heat sink for efficient thermal management
• 360° rotation and 260° pivot for precise beam control
• Accessory compatible for customization (accessories sold separately)
• Dimmable to 10% for flexible lighting control
• Low-voltage operation at 12 volts
• Includes 4" round flush canopy
