TECH LIGHTING 700FJHEL2518Z-LED FJ-HELIOS 25 18 IN BZ-LED Directional LED Head

The TECH LIGHTING 700FJHEL2518Z-LED is a 6-watt directional LED head designed for precise beam control in lighting solutions. Ideal for use in architectural and accent lighting, this LED head is compatible with Tech Lighting’s low-voltage systems and is suitable for indoor dry locations. It offers versatility for electrical distributors and switchgear suppliers looking to provide customizable lighting options with field-replaceable LED modules and accessory compatibility.

Specifications

• Power Consumption: 6 watts
• Color Temperature: 3000 K
• Lumens: 350 net lumens
• Lumens per Watt: 55 lm/W
• Color Rendering Index (CRI): >85
• Rated Average Life: >30,000 hours to L70
• Beam Spread Options: 25° and 40°
• Candle Power: 25° - 748; 40° - 550
• Dimming: Dimmable to 10% with low-voltage electronic or magnetic dimmers
• Warranty: 5 years
• Product Weight: 0.29 lbs
• Dimensions: Length 2.2" (55 mm)
• Voltage: 12 volts
• Certification: ETL Listed for indoor dry locations

Features

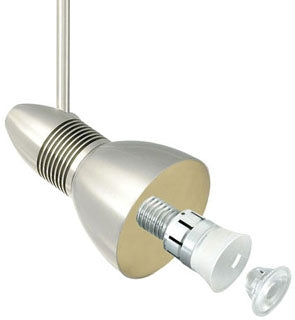

• Field-replaceable LED lamp module with screw-in base for easy maintenance
• Aluminum heat sink for effective thermal management
• Head rotates 360° and pivots 260° for precise beam direction
• Compatible with a variety of accessory styles and colors (sold separately)
• Lenses and louvers usable only with Round Glass Shield and Tinkerbell accessories
• Includes 4" round flush canopy
