TECH LIGHTING 700FJHEL2506S-LED FJ-HELIOS 25 06 IN SN-LED Directional LED Head

The TECH LIGHTING 700FJHEL2506S-LED FJ-HELIOS is a 6 watt directional LED head designed for customizable lighting solutions. It is suitable for indoor dry locations and ideal for electrical distributors and switchgear suppliers seeking efficient, low-voltage LED lighting components. The LED module is field-replaceable with a screw-in base, and the integrated aluminum heat sink ensures effective thermal management. The head rotates 360° and pivots 260°, allowing precise beam direction. Compatible with a variety of accessory styles and colors, it supports dimming to 10% with low-voltage electronic or magnetic dimmers, making it a versatile choice for wire and cable lighting applications.

Specifications

• Power Consumption: Initial 6 watts
• Color Temperature: 3000° K
• Lumens: 350 net lumens
• Lumens per Watt: 55 lms/watt
• Color Rendering Index: >85 CRI
• Rated Average Life: >30,000 hours to L70
• Center Beam Candle Power: 25° - 748; 40° - 550
• Dimming: 10%
• Warranty: 5 years
• Product Weight: 0.2900 lbs

Features

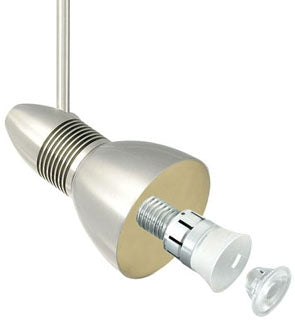

• Field-replaceable LED lamp module with screw-in base
• Aluminum heat sink for thermal management
• 360° rotation and 260° pivot for precise beam control
• Compatible with multiple accessory styles and colors (sold separately)
• Dimmable to 10% with low-voltage electronic or magnetic dimmers
• ETL listed for indoor dry locations
• Includes 4" round flush canopy
