TECH LIGHTING 700FJHEL2503Z-LED FJ-HELIOS 25 03 IN BZ-LED Directional LED Head

The TECH LIGHTING 700FJHEL2503Z-LED FJ-HELIOS is a 6-watt directional LED head designed for precision lighting applications. Ideal for electrical distributors and lighting solution providers, this fixture offers adjustable beam direction with 360° rotation and 260° pivot to target illumination effectively. The LED module is field-replaceable with a screw-in base, and the integrated aluminum heat sink ensures efficient thermal management, minimizing waste at the end of the lamp module life. Suitable for indoor dry locations, this product supports dimming to 10% with compatible low-voltage electronic or magnetic dimmers.

Specifications

• Power Consumption: Initial 6 watts
• Color Temperature: 3000°K
• Lumens: 350 net lumens
• Lumens per Watt: 55 lms/watt
• Color Rendering Index (CRI): >85
• Rated Average Life: >30,000 hours to L70
• Beam Angles: 25° and 40° optics
• Candle Power: 25° - 748; 40° - 550
• Dimming: 10%
• Warranty: 5 years
• Product Weight: 0.2900 lbs
• UPC: 884655040471

Features

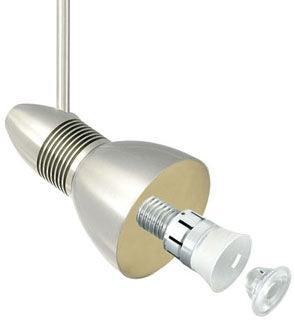

• Field-replaceable LED lamp module with screw-in base
• Aluminum heat sink for effective thermal management
• Head rotates 360° and pivots 260° for precise beam control
• Compatible with a variety of accessory styles and colors (sold separately)
• Dimmable to 10% with low-voltage electronic or magnetic dimmers
• ETL listed for indoor dry locations
