TECH LIGHTING 700FJ4SQC024 FJ 4 IN SQ CNPY CH 120/24 Canopy Lighting Solutions

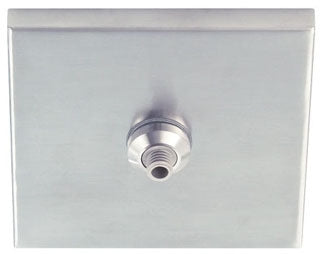

The TECH LIGHTING 700FJ4SQC024 is a 4-inch square flush canopy designed for indoor dry locations. It mounts to a standard 4-inch junction box with a round plaster ring, providing a secure and compliant installation. This canopy integrates an electronic transformer that fits inside the junction box and features one FreeJack port, suitable for ceiling or wall mounting. Ideal for electrical distributors and switchgear suppliers offering wire and cable and lighting solutions, this product supports 120V input and 24V output voltage configurations.

Specifications

• Product Weight: 0.8 lbs
• Voltage: 120V in / 24V out
• Dimensions (Transformer): Halogen ballast 2.66”L x 1.30”H x 0.83”D; LED driver 2.76”L x 1.62”H x 0.91”D
• Mounting: Standard 4" junction box with round plaster ring
• Number of Ports: One FreeJack port
• Installation Location: Ceiling or wall
• Compatibility: Compatible with LED elements when model number ends with “-LED” or “-LED277”

Features

• Electronic transformer included, fits inside junction box
• Supports dimming with low-voltage electronic dimmer for compatible LED models
• Standard incandescent dimmer compatible for non-LED models
• Suitable for indoor dry locations only
• Grounding in accordance with local electrical code required
• For wood canopies, minimum 12-inch clearance required between canopy and pendant or head to prevent heat damage (applicable note)
