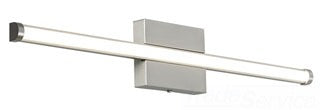

TECH LIGHTING 700BCRAER324S-LED930-277 BC-RAE 300LM/FT 24 SN-930-277 LED Bath Bar Lighting

The Tech Lighting 700BCRAER324S-LED930-277 is a bath bar fixture designed for high-quality, slim-profile LED illumination suitable for residential and commercial lighting applications. This product is ideal for electrical distributors and lighting solution providers seeking advanced lighting with excellent color rendering and efficient light output. It features a special co-extruded remote phosphor LED channel integrated into a sleek backplate, delivering flawless, even illumination with a profile less than 1 inch deep. The fixture is compatible with 277-volt input and designed for damp locations, making it suitable for bathroom environments.

Specifications

• Length: 24 inches
• Finish: Satin Nickel
• LED Lamp: LED 90 CRI 3000K
• Voltage: 277 Volt
• Light Output: 300 lumens per foot
• Power Consumption: 3.9 watts per foot
• Product Weight: 2.5 lbs
• Mounting: Mounts to a 4" square electrical box with round plaster ring or octagonal electrical box
• Suitable Location: Damp locations

Features

• Special co-extruded remote phosphor LED channel for even illumination and high color reproduction
• Amazingly slim profile, less than 1 inch deep
• Flawless, even illumination optimized for vanity and bath lighting
• Compatible with remote mounted transformer (sold separately)
• Includes 2” square by 3” deep J-Box for easy installation
• ETL listed for safety and performance compliance
• Installation designed for electrical distributors and switchgear suppliers, facilitating quick and code-compliant mounting
