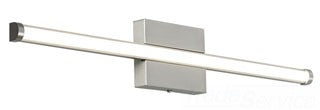

TECH LIGHTING 700BCRAER324S-LED840-277 BC-RAE 300LM/FT 24 SN-840-277 LED Bath Bar Lighting Solution

The TECH LIGHTING 700BCRAER324S-LED840-277 BC-RAE is a specialized LED bath bar designed for high-quality, slim-profile illumination in bathroom settings. This lighting solution features a co-extruded remote phosphor LED channel that provides even, flawless light output with excellent color reproduction. Suitable for installation by electrical distributors and switchgear suppliers, it is ideal for integration with mirrors or vanity areas requiring precise lighting. The fixture operates at 277 volts and is designed for damp locations, making it a reliable choice for bathroom environments.

Specifications

• Manufacturer Part #: 700BCRAER324S-LED840-277
• Length: 24 inches
• LED Output: 300 lumens per foot
• LED Power: 3.9 watts per foot
• Color Temperature: 4000K (LED840)
• Voltage: 277 Volt
• Finish: Satin Nickel
• Product Weight: 2.5 lbs
• Suitable for Damp Locations
• Mounting: 4" square electrical box with round plaster ring or octagonal electrical box

Features

• Special co-extruded remote phosphor LED channel for a slim profile under 1 inch deep
• Flawless, even illumination with excellent color rendering
• Designed to adapt to virtually any mirror for custom vanity lighting
• Includes a 2” square by 3” deep J-Box for easy installation
• Requires remote mounted transformer (sold separately) for operation
• ETL listed for safety and compliance with electrical codes
