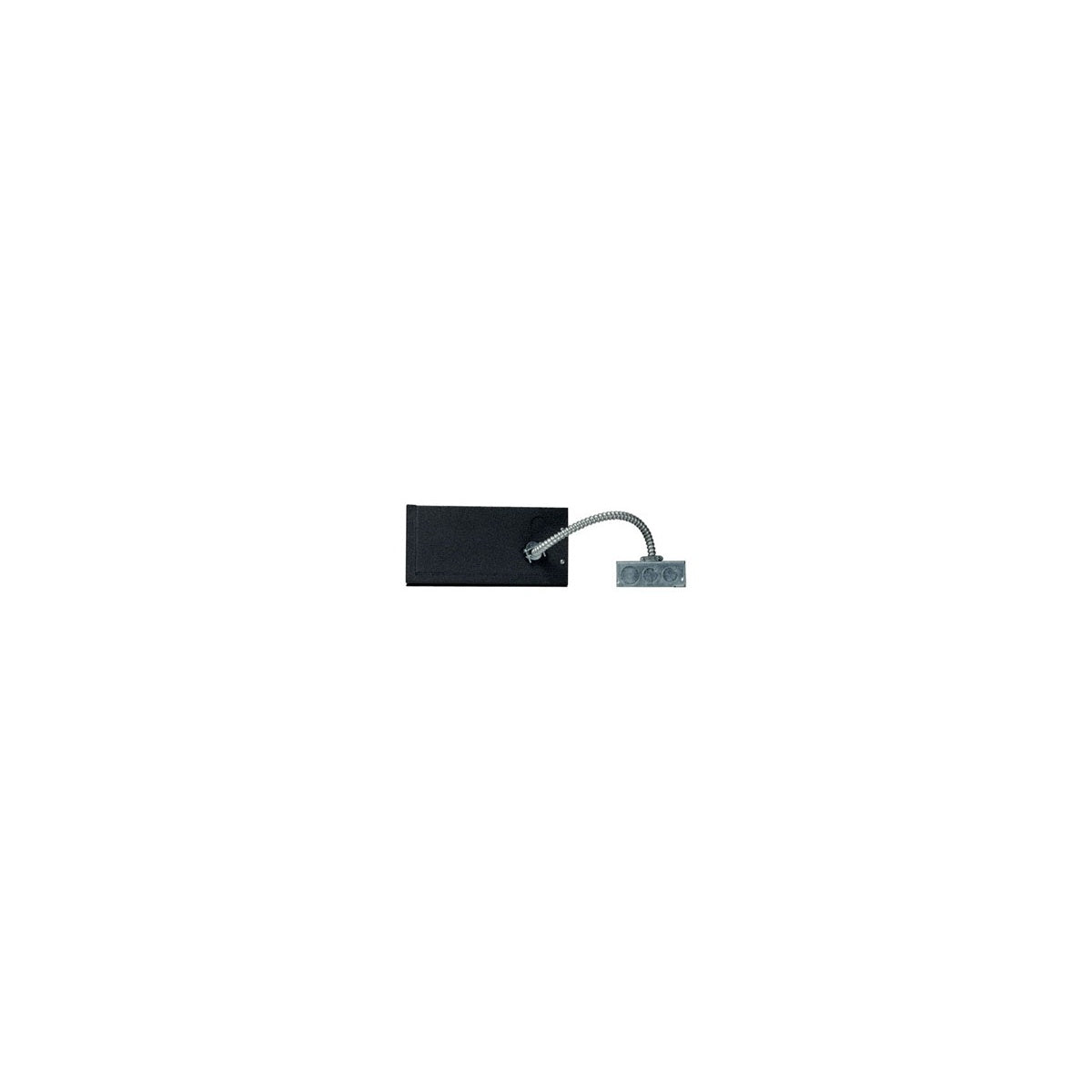

TECH LIGHTING 700AT6024T277 AT 600W 277V IN 24V OUT Remote Transformer

This remote magnetic transformer by Tech Lighting converts standard 120 or 277 volt line-voltage to 24 volts, providing the necessary voltage for powering low-voltage lighting systems such as MonoRail, Kable Lite, Wall MonoRail, or FreeJack. Designed for use by electrical distributors and lighting solution providers, this transformer supports lamp loads up to 600 watts and is suitable for wire and cable installations requiring a remote transformer. It is intended for installation in an accessible remote location, such as above ceilings or in closets, ensuring compliance with switchgear supplier standards.

Specifications

• Input Voltage: 277V line-voltage
• Output Voltage: 24V low-voltage
• Wattage: 600 watts
• Transformer Type: Magnetic
• Weight: 17.04 lb (7.73 kg)
• Dimensions: 11.5" (292 mm) L x 6.1" (155 mm) W x 5.1" (130 mm) H
• Compatible with: MonoRail, Kable Lite, Wall MonoRail, FreeJack low-voltage lighting systems
• Installation Location: Remote, accessible (e.g., above ceiling or closet)

Features

• Fast-acting secondary circuit breaker for short circuit protection and easy reset
• Can be hardwired or ordered with a 16-foot power cord with plug
• Requires single-feed canopy or power feed option (sold separately)
• Supports 24V lamps exclusively
• Low-voltage wire size recommendations provided for voltage drop management
