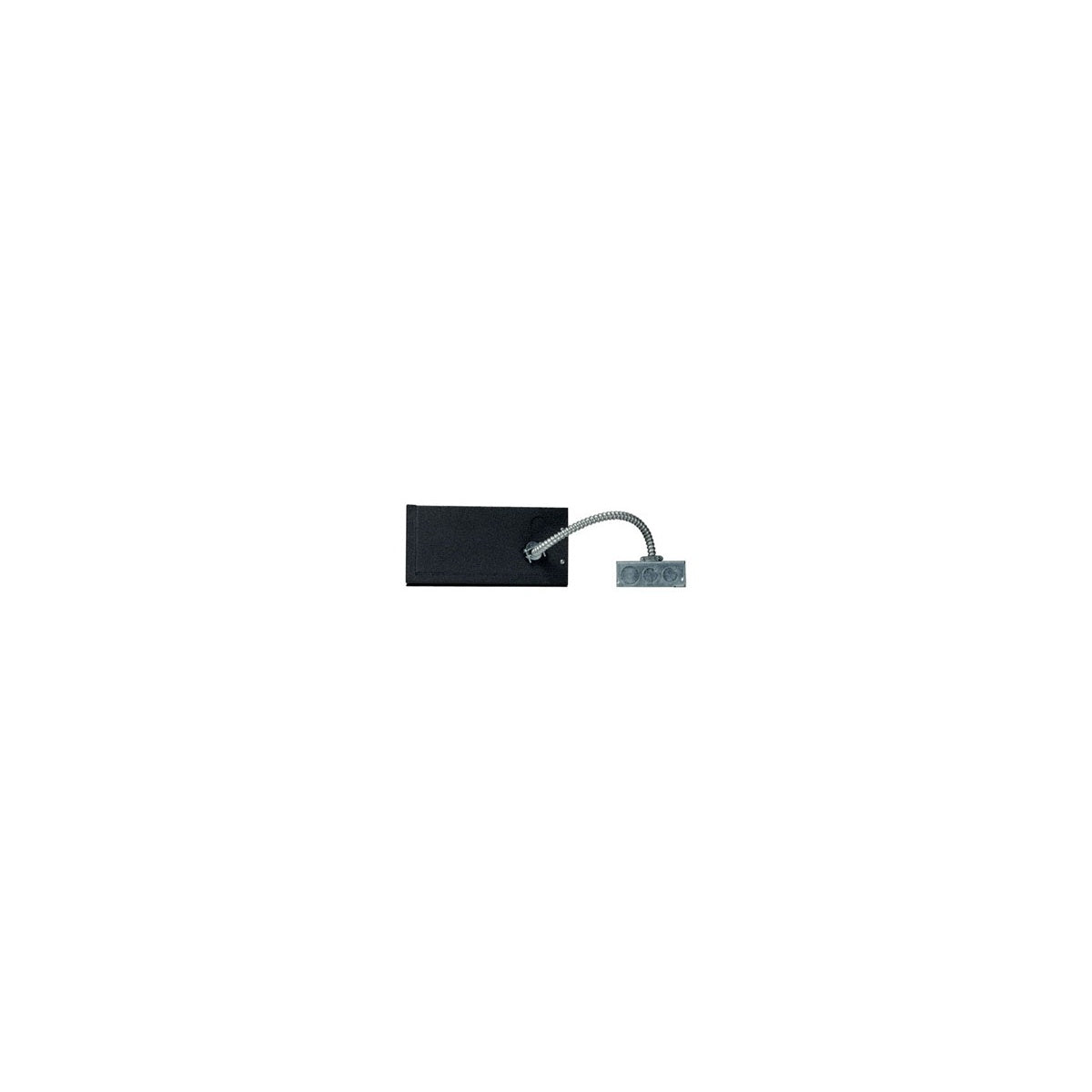

TECH LIGHTING 700AT6024P AT 600W 24V Transformer

This remote magnetic transformer from Tech Lighting converts standard 120 or 277 volt line-voltage to 24 volts, providing the necessary voltage for powering low-voltage lighting systems such as MonoRail, Kable Lite, Wall MonoRail, or FreeJack. Designed for electrical distributors and lighting solutions providers, it supports up to 600 watts of lamp load and is suitable for wire and cable installations requiring reliable voltage transformation. This product is ideal for switchgear suppliers needing a plug-in transformer option with a 16-foot power cord for flexible installation.

Specifications

• Manufacturer: Tech Lighting
• Manufacturer Part #: 700AT6024P
• Input Voltage: 120/277V
• Output Voltage: 24V
• Wattage: 600 Watts
• Transformer Type: Magnetic
• Installation: Remote, accessible location (e.g., above ceiling or closet)
• Weight: 17.04 lb (7.73 kg)
• Plug-In Transformer with 16' power cord included
• Compatible with 24V lamps only

Features

• Fast-acting secondary circuit breaker for short-circuit protection with reset capability
• Can be hardwired or used as a plug-in unit for installation flexibility
• Must be used with single-feed canopy or power feed option (sold separately)
• Low-voltage wire size table available for proper conductor gauge selection based on installation distance
