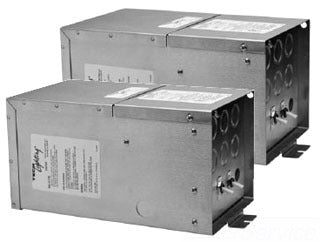

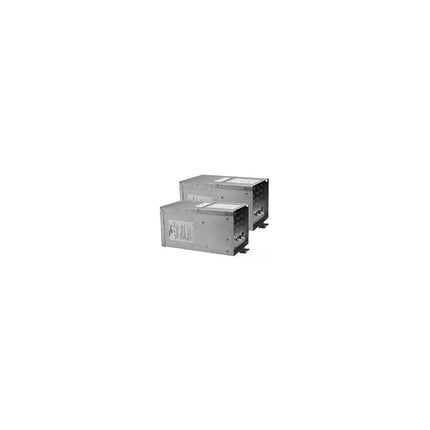

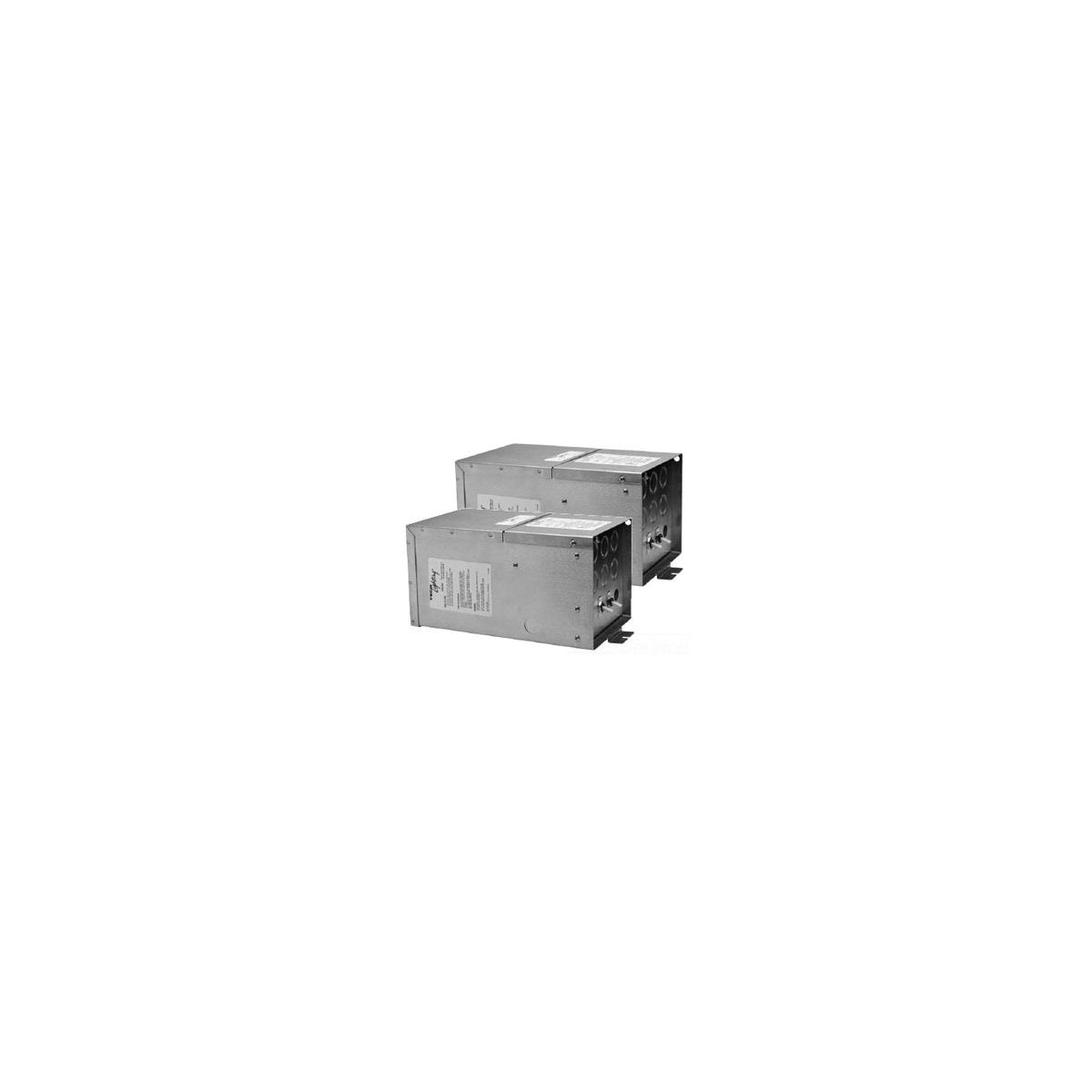

TECH LIGHTING 700AT4X300T277 AT 4X300W 277V-IN 12V-OUT XFMR Remote Transformer

This remote magnetic transformer from Tech Lighting converts 277 volts input to 12 volts output, designed specifically for powering low-voltage lighting systems such as Two-Circuit MonoRail. It is suitable for installation in accessible locations behind ceilings or walls and is ideal for electrical distributors and lighting solutions providers requiring reliable wire and cable voltage conversion. The transformer supports up to four 300 watt low-voltage magnetic loads, totaling 1200 watts, and features fast-acting secondary circuit breakers for system safety.

Specifications

• Input Voltage: 277 Volts
• Output Voltage: 12 Volts
• Wattage: 1200 Watts (4 x 300W)
• Type: Magnetic AC
• Dimensions: 6.1" (155 mm) H x 5.9" (150 mm) W x 12.5" (318 mm) L
• Product Weight: 24.2 lb (10.97 kg)
• Manufacturer Part #: 700AT4X300T277

Features

• Dual-feed transformer with four 120V input lines for balanced power distribution
• Equipped with fast-acting secondary circuit breakers to safely interrupt power during short circuits
• Compatible with up to four low-voltage magnetic dimmers, each controlling up to 300 watts
• Designed for remote installation in accessible locations such as ceilings or closets
• Requires use with 12 volt lamps and compatible dual-feed Two-Circuit canopy or power feed options (sold separately)
• Optional debuzzing dimming coils available to reduce audible noise during dimming
• 277 volt input option available for specific electrical system requirements
