TECH LIGHTING 700AT4X300T AT 4X300W 2-CIR 12V MAG. XFMR
SKU: #73909
Part: #700AT4X300T
UPC: 756460556983
TECH LIGHTING 700AT4X300T AT 4X300W 2-CIR 12V MAG. XFMR
SKU: #73909
Part: #700AT4X300T
UPC: 756460556983
Description

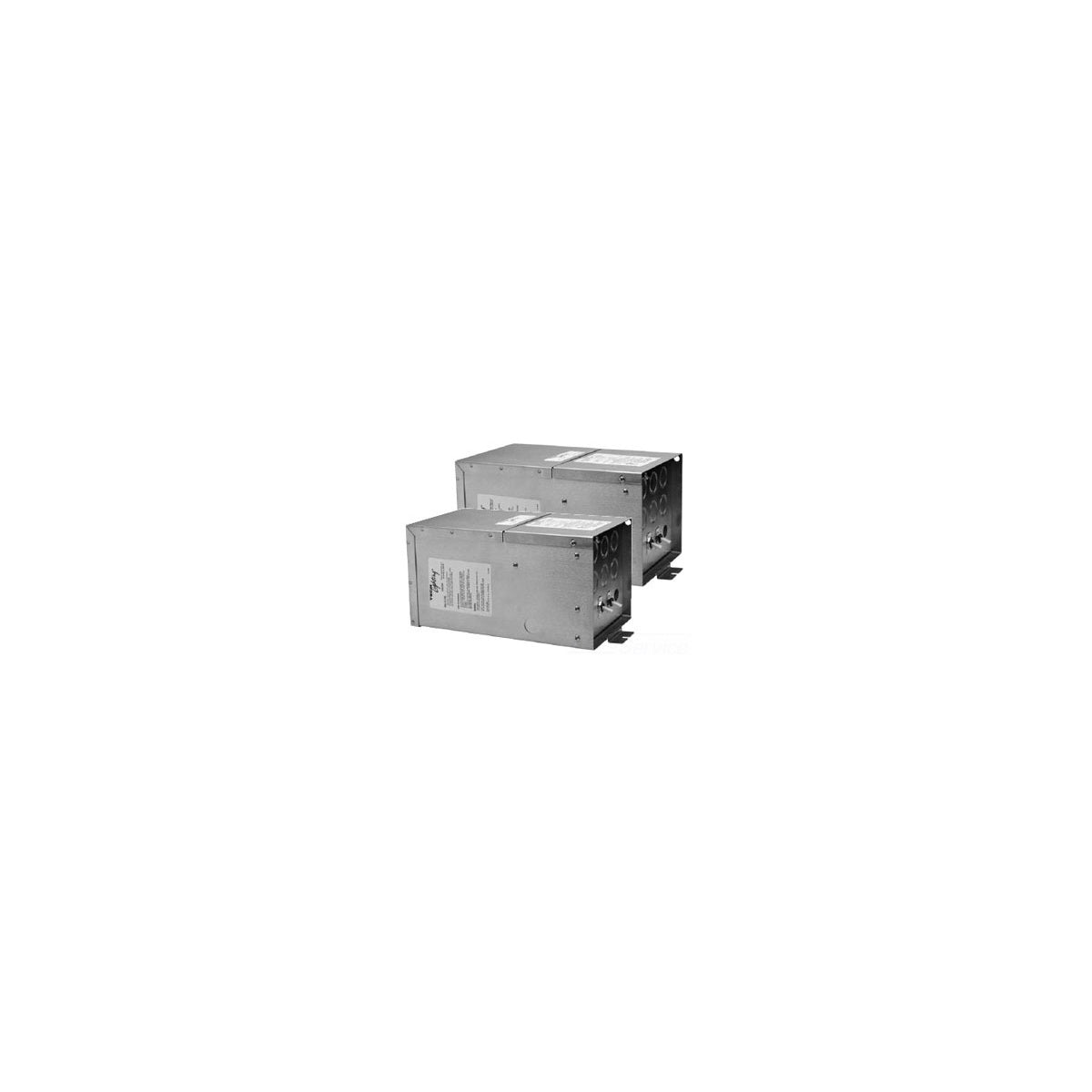

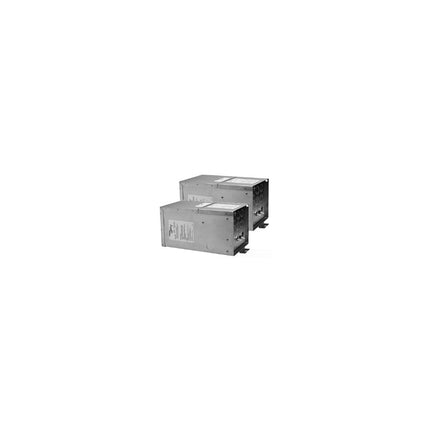

TECH LIGHTING 700AT4X300T AT 4X300W 2-CIR 12V MAG. XFMR Remote Transformer
This remote magnetic transformer from Tech Lighting converts standard 120 volt line voltage to 12 volts, designed to power a Two-Circuit MonoRail low-voltage lighting system. It is suitable for electrical distributors and lighting solutions providers requiring reliable wire and cable components or switchgear suppliers needing low-voltage power conversion. The transformer is intended for installation in accessible remote locations such as above ceilings or inside closets, supporting dual-feed operation with four 120V input lines and dimmable with compatible magnetic dimmers.
Specifications
- Manufacturer: Tech Lighting
- Manufacturer Part #: 700AT4X300T
- Input Voltage: 120 Volts
- Output Voltage: 12 Volts
- Wattage Capacity: 1200 Watts (4 x 300 Wats)
- Type: Magnetic AC Transformer
- Weight: 24.20 lb (10.97 kg)
- Dimensions: 6.1" H x 5.9" W x 12.5" L (155 mm x 150 mm x 318 mm)
- Dual-Feed Configuration: Four 120V input lines
Features
- Fast-acting secondary circuit breakers for system protection and reset capability after short circuits
- Compatible with low-voltage magnetic dimmers, each controlling up to 300 watts
- Supports dual-circuit MonoRail low-voltage lighting systems
- Installation flexibility with remote mounting behind ceilings or walls
- Optional 277 volt input available
- Requires use with 12 volt lamps and dual-feed Two-Circuit canopy or power feed options (sold separately)
