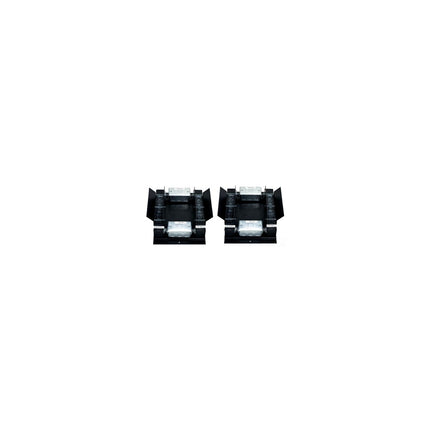

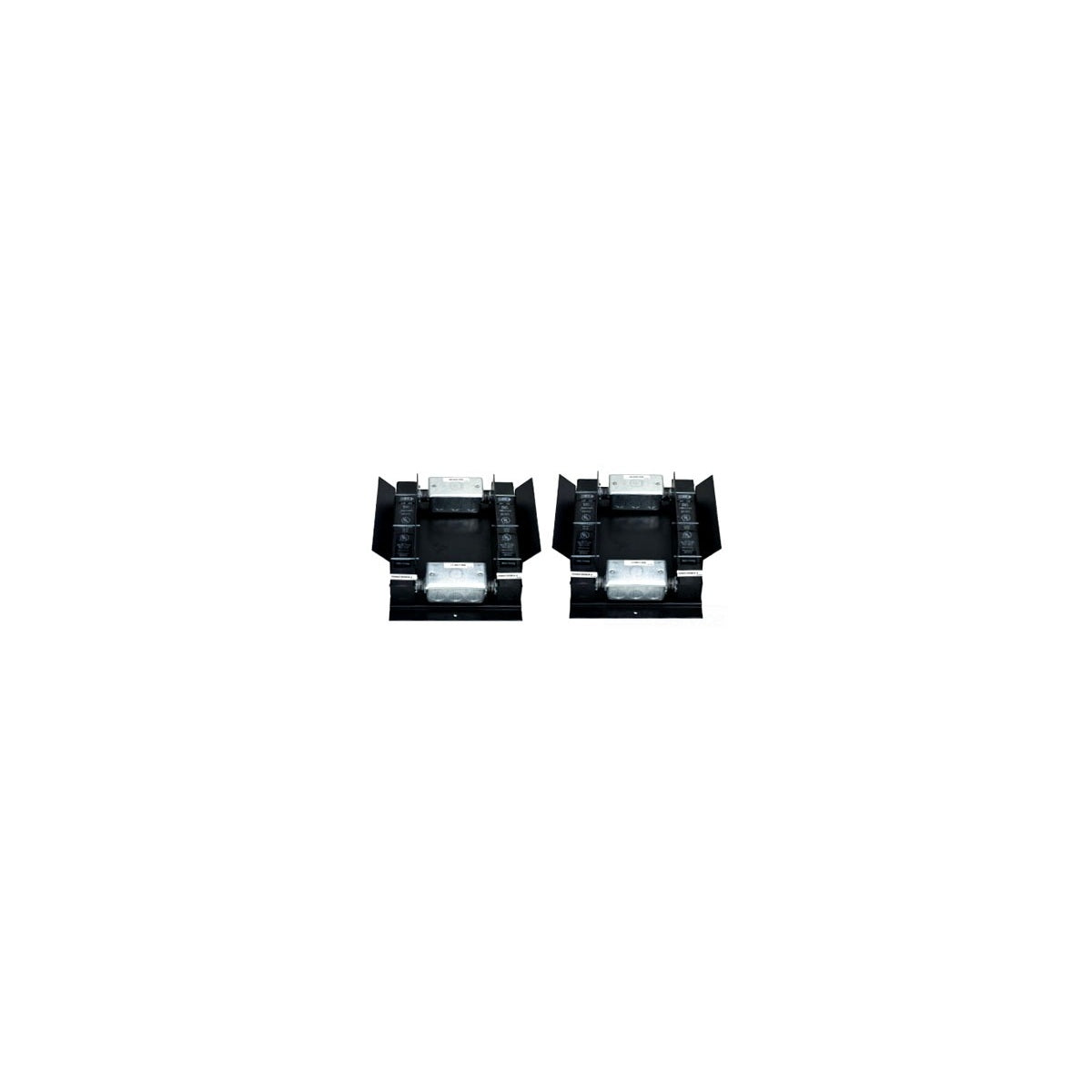

TECH LIGHTING 700AT4X300EL AT 4X300W 2-CIR 12V Electronic Remote Transformer

The TECH LIGHTING 700AT4X300EL is a two-circuit remote electronic transformer designed to convert standard 120 volt line voltage to 12 volts, providing reliable power for Two-Circuit MonoRail low-voltage lighting systems. It is ideal for professional electrical distributors and lighting solutions providers requiring efficient wire and cable management and switchgear supply for low-voltage applications. This dual-feed transformer supports up to 1200 watts and features built-in short circuit and overload protection for safe operation.

Specifications

• Input Voltage: 120 Volt
• Output Voltage: 12 Volt
• Wattage: 1200 Watts
• Type: Electronic DC
• Weight: 5.04 lb (2.28 kg)
• Dimensions: 13" (330 mm) length x 9" (228 mm) width x 4" (101 mm) height
• Manufacturer Part #: 700AT4X300EL

Features

• Dual-feed transformer supporting two 120 volt input lines
• Dimmable with four 600 watt low-voltage electronic dimmers (each dimmer controls up to 300 watts)
• Fast-acting short circuit and overload protection with resettable breakers
• Mounts on a plate with junction boxes for secure installation
• Designed for remote installation in accessible locations such as above ceilings or in closets
• Compatible with Two-Circuit MonoRail low-voltage lighting systems
• Requires use of 12 volt lamps and compatible dual-feed canopy or power feed options (sold separately)
