Description

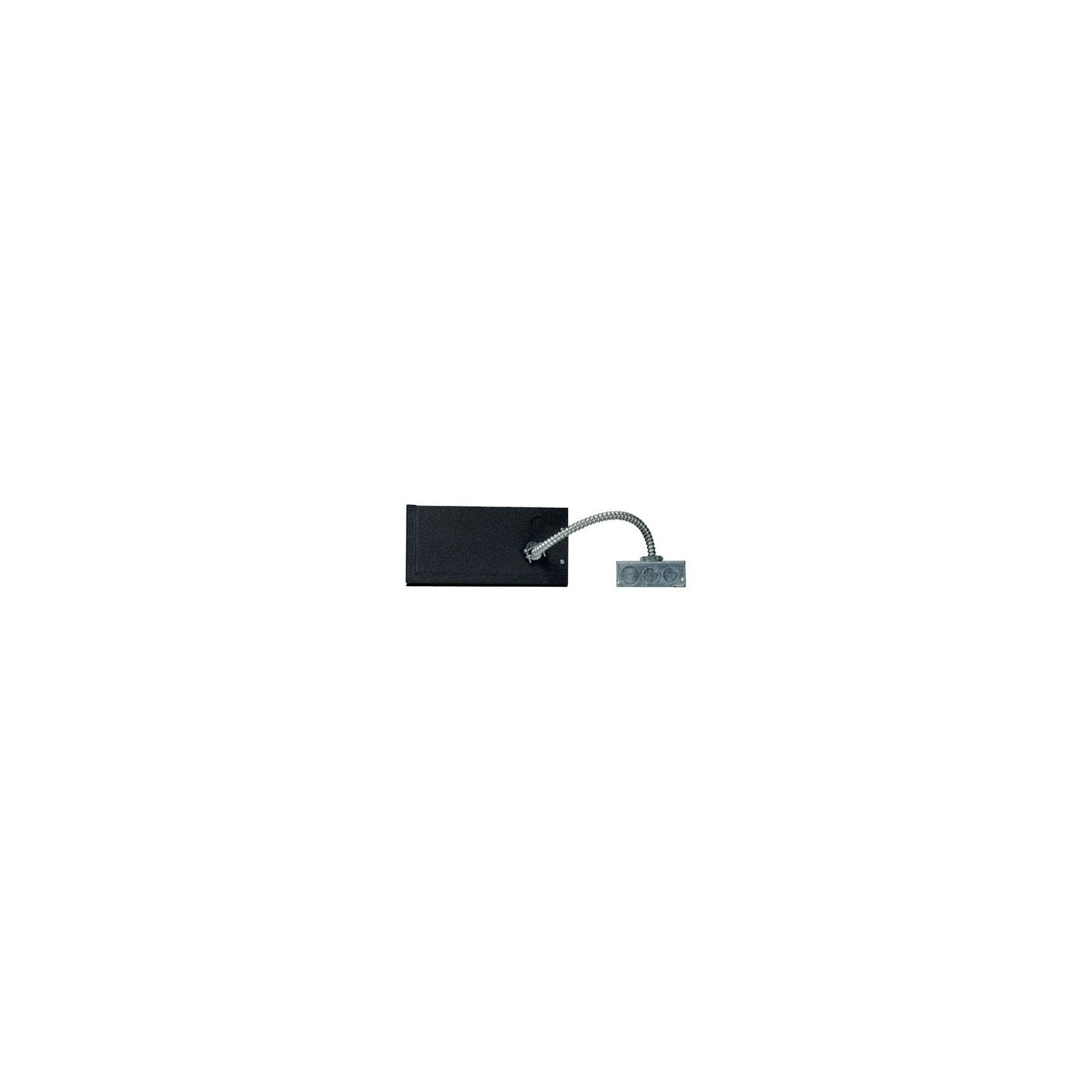

TECH LIGHTING 700AT3024T AT 300W XFMR 24V 2-W 1-CIR Remote Transformer
The TECH LIGHTING 700AT3024T is a 300-watt low-voltage magnetic remote transformer designed for use in low voltage lighting systems. Suitable for installation in accessible locations behind ceilings or walls, this transformer is ideal for electrical distributors and lighting solutions providers requiring reliable wire and cable voltage conversion. It operates at 120V input and outputs 24V, making it compatible with various low voltage lighting fixtures. This model supports single feed wiring with one circuit and two wires, and is intended for indoor dry locations only.
Specifications
- Manufacturer: Tech Lighting
- Manufacturer Part #: 700AT3024T
- Input Voltage: 120V
- Output Voltage: 24V
- Wattage: 300 Watts
- Type: Magnetic AC
- Number of Circuits: 1 Circuit
- Number of Wires: 2 Wires
- Product Weight: 9.02 lbs
- UPC: 756460556884
- Installation Location: Indoor dry locations only
- Certification: ETL Listed
Features
- Designed for low voltage lighting systems with magnetic dimmers
- Compatible with low voltage magnetic dimmers; dimmer must be derated as per manufacturer instructions
- Includes mounting bracket for secure installation on solid surfaces
- Equipped with a circuit breaker for short circuit protection and reset capability
- Requires canopy or special power feed for installation (not included)
- Supports single feed wiring for straightforward system integration
- Requires proper wire sizing to minimize voltage drop; wire size recommendations provided in installation instructions
- Installation must comply with local electrical codes and be performed by qualified electricians
