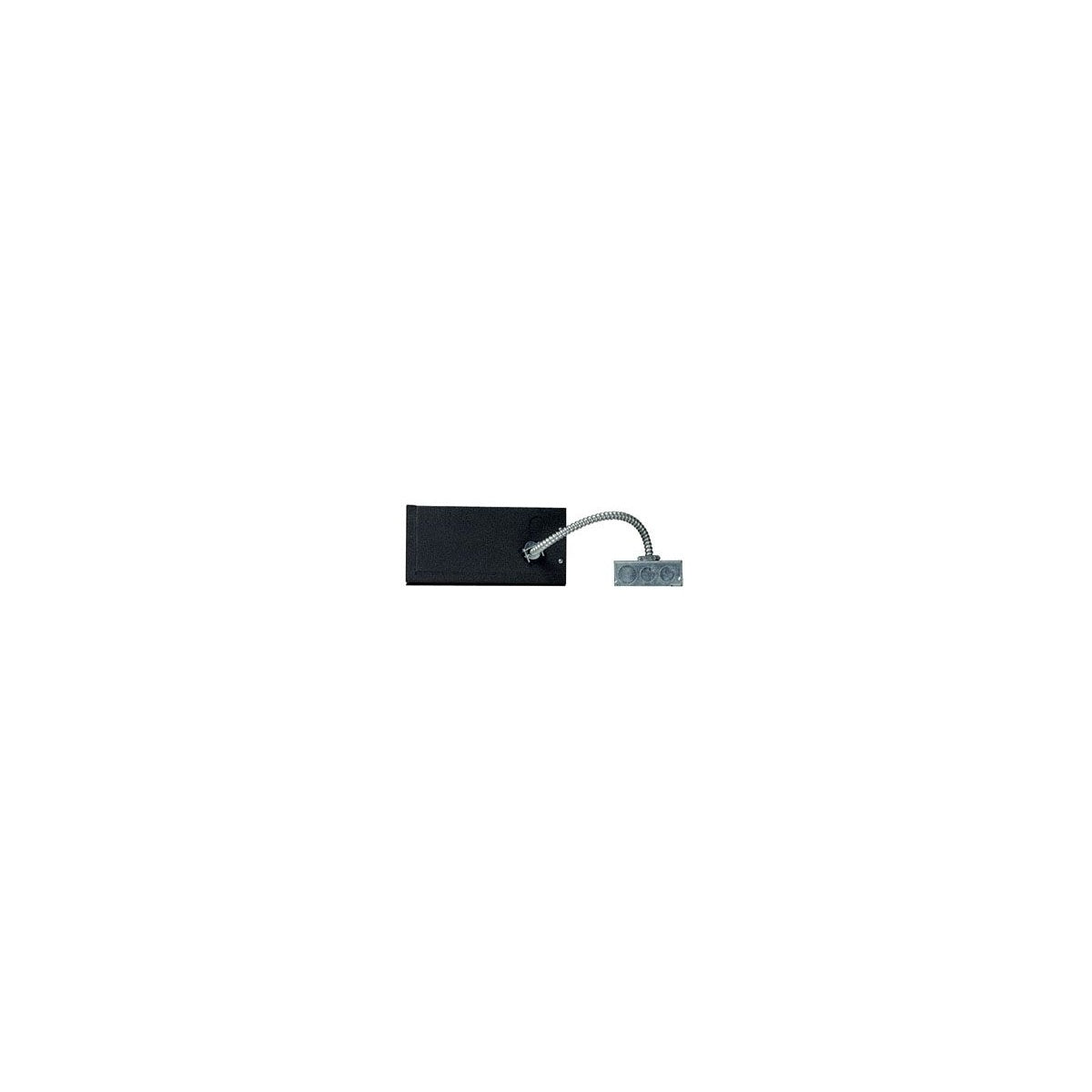

TECH LIGHTING 700AT300T277 AT 300W 277V IN 12V OUT Transformer

The TECH LIGHTING 700AT300T277 is a remote magnetic transformer designed for low-voltage lighting systems. It converts 277V input voltage to 12V output and supports a maximum load of 300 watts. This transformer is suitable for use by electrical distributors and switchgear suppliers providing lighting solutions that require reliable low-voltage power conversion for wire and cable applications in indoor dry locations.

Specifications

• Manufacturer: Tech Lighting
• Manufacturer Part #: 700AT300T277
• Input Voltage: 277V
• Output Voltage: 12V
• Wattage: 300W
• Dimensions (W x H x L): 4.3 in x 4.1 in x 4.3 in
• Product Weight: 6 lbs
• UPC: 756460556907

Features

• ETL listed for indoor dry locations
• Remote transformer designed for accessible installation behind ceiling or wall
• Compatible with low-voltage magnetic dimmers only; using incompatible dimmers may cause failure
• Includes mounting bracket with keyhole slots for secure installation
• Requires use of minimum 90¬∞C supply conductors
• Recommended wiring practices to reduce voltage drop and ensure proper operation
• Maximum load of 300 watts; do not exceed 70% of rated load due to inrush current
• Ground wire connection for safety compliance
• Detailed installation instructions provided for safe and code-compliant setup
