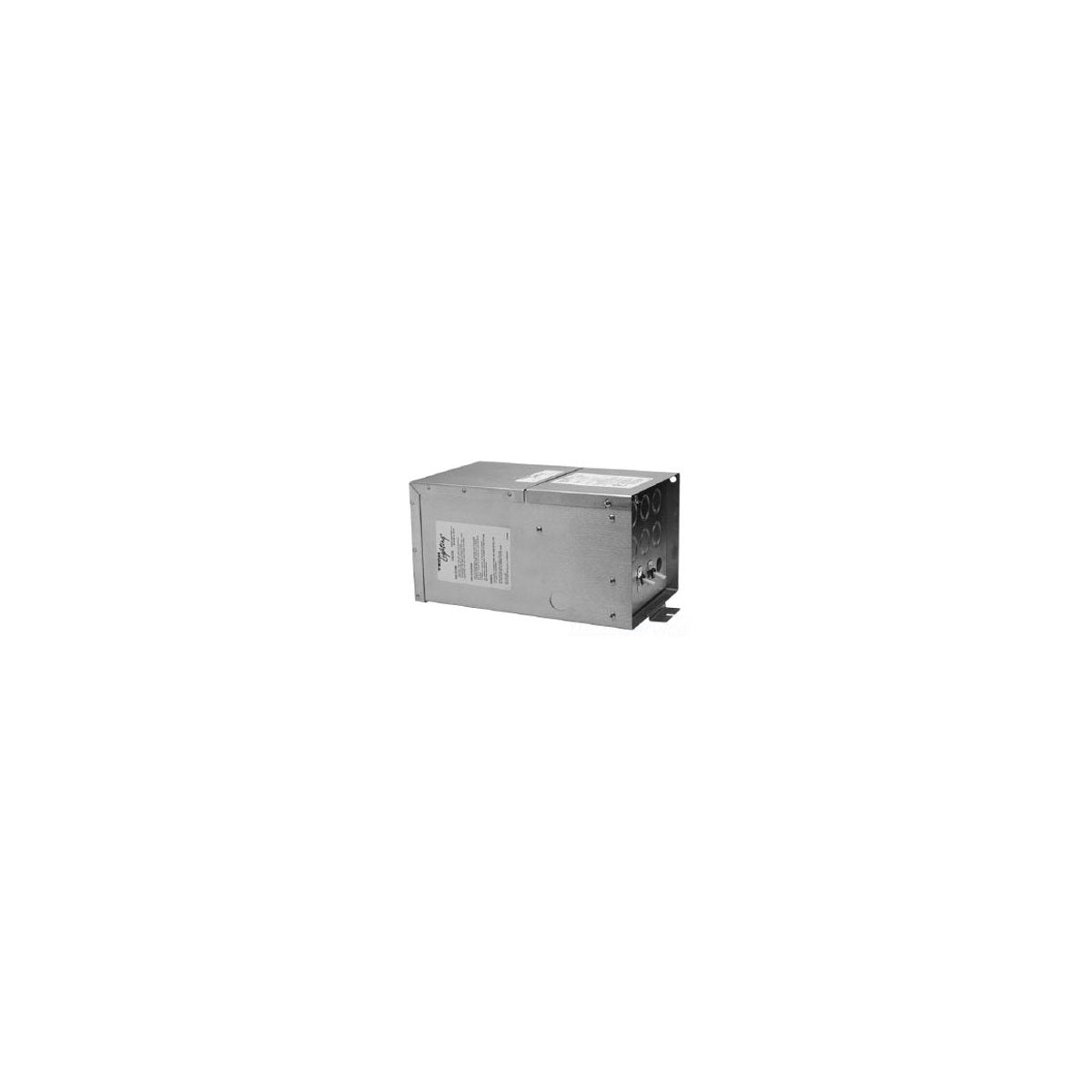

TECH LIGHTING 700AT2X300T277 AT 2X300W 277V-IN 12V-OUT XFMR Remote Transformer

This remote magnetic transformer by Tech Lighting converts 277 volt line voltage to 12 volts, designed to power low-voltage lighting systems such as the Two-Circuit MonoRail. It is suitable for installation in accessible remote locations like above ceilings or inside closets, providing reliable electrical distribution for lighting solutions. The transformer is compatible with wire and cable installations requiring a step-down voltage and is ideal for switchgear suppliers needing a compact, durable transformer for low-voltage applications.

Specifications

• Input Voltage: 277 Volt
• Output Voltage: 12 Volt
• Wattage: 2 x 300 Watts (600 Watts total)
• Type: Magnetic AC Transformer
• Dimensions: 6.1" H x 5.9" W x 12.5" L (155 mm x 150 mm x 318 mm)
• Product Weight: 24.2 lb (10.97 kg)
• Manufacturer Part #: 700AT2X300T277

Features

• Equipped with fast-acting secondary circuit breakers for short circuit protection and easy reset
• Dimmable with two 600 watt low-voltage magnetic dimmers (each dimmer controls up to 300 watts)
• Designed for use with 12 volt lamps and compatible with Two-Circuit MonoRail lighting systems
• Requires installation within 20 feet of power feed to reduce voltage drop; voltage drop chart provided for wire gauge selection
• Suitable for remote installation behind ceilings or walls for concealed electrical distribution
