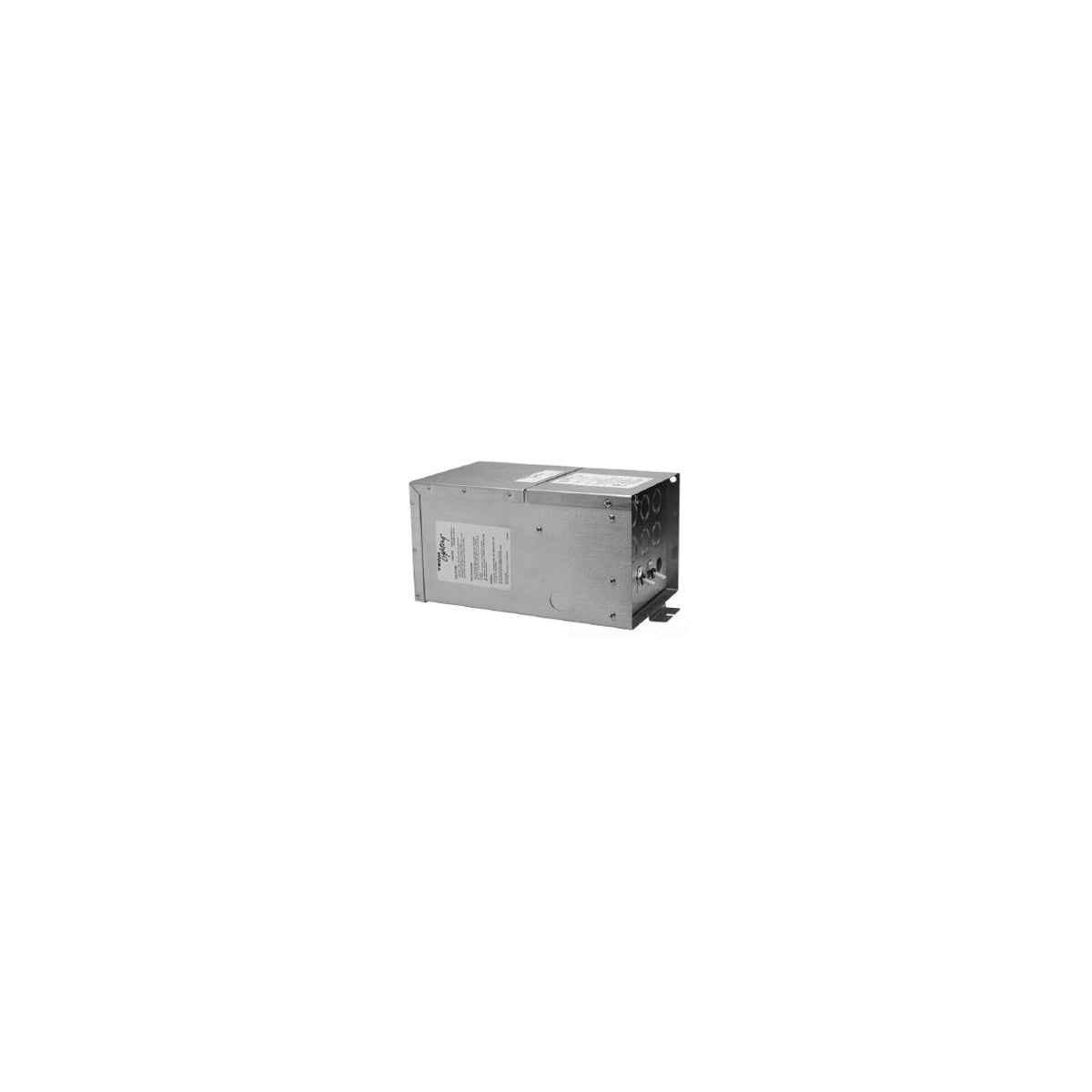

TECH LIGHTING 700AT2X300T AT 2X300W 2-CIR 12V MAGNETIC TRANSFORMER

This remote magnetic transformer from Tech Lighting converts standard 120 volt line voltage to 12 volts, designed specifically to power a Two-Circuit MonoRail low-voltage lighting system. Suitable for electrical distributors and lighting solutions providers, it supports up to 600 watts of lamp load and includes fast-acting secondary circuit breakers for safety. The transformer is intended for installation in an accessible remote location such as above a ceiling or in a closet, facilitating integration with wire and cable systems and switchgear suppliers.

Specifications

• Manufacturer: Tech Lighting
• Manufacturer Part #: 700AT2X300T
• Input Voltage: 120 Volts
• Output Voltage: 12 Volts
• Wattage: 600 Watts
• Dimensions: 6.1" H x 5.9" W x 12.5" L (155 mm x 150 mm x 318 mm)
• Product Weight: 24.2 lb (10.97 kg)
• UPC: 756460556778

Features

• Two-circuit magnetic transformer designed for low-voltage lighting systems
• Equipped with fast-acting secondary circuit breakers for short circuit protection and reset capability
• Dimmable with two 600 watt low-voltage magnetic dimmers (each dimmer controls up to 300 watts)
• Compatible with Two-Circuit MonoRail lighting applications
• Requires use of 12 volt lamps and compatible with single-feed Two-Circuit canopy or other power feed options (sold separately)
• Installation recommended within 20 feet of power feed to minimize voltage drop
• Optional 277 volt input available
• Debuzzing dimming coils available separately to reduce audible noise during dimming
