TECH LIGHTING 700AT2X150T AT 2X150W 2-CIR 12V MAG. XFMR Remote Transformer

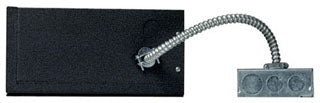

This remote magnetic transformer converts standard 120 volt line-voltage to 12 volts, providing the necessary voltage for powering a Two-Circuit MonoRail low-voltage lighting system. It is designed for installation in an accessible remote location such as above the ceiling or in a closet. Suitable for electrical distributors and lighting solutions requiring low-voltage power conversion, this transformer supports wire and cable setups with appropriate gauge conductors based on distance.

Specifications

• Manufacturer: Tech Lighting
• Manufacturer Part #: 700AT2X150T
• Input Voltage: 120V
• Output Voltage: 12V
• Wattage: 2 x 150 Watts (300 Watts total)
• Type: Magnetic AC Transformer
• Product Weight: 24.2 lb (10.98 kg)
• UPC: 884655066044

Features

• Provides power for Two-Circuit MonoRail low-voltage lighting systems
• Includes fast-acting secondary circuit breakers for short circuit protection and reset capability
• Requires use of 12 volt lamps
• Must be installed within 20 feet of run or power feed for optimal performance
• Supports proper gauge conductor wiring based on distance to minimize voltage drop
• Compatible with single-feed Two-Circuit canopy or other power feed options (sold separately)
• Recommended to use no more than 70% of maximum wattage when powering LED fixtures due to inrush current
