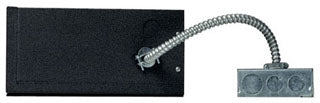

TECH LIGHTING 700AT075P AT 75W XFMR PLUG-IN Transformer

This remote transformer from Tech Lighting converts standard 120V line voltage to 12V low voltage, providing the necessary power for MonoRail, Kable Lite, Wall MonoRail, or FreeJack low-voltage lighting systems. Designed for use by electrical distributors and switchgear suppliers, it delivers a single 75-watt output suitable for powering low-voltage lamps. The transformer features a fast-acting secondary circuit breaker that protects the system by shutting off power in the event of a short circuit, which can be reset once the fault is cleared. It must be installed in an accessible remote location such as above a ceiling or in a closet within 20 feet of the power feed, following proper wire gauge recommendations to ensure safety and performance.

Specifications

• Input Voltage: 120V
• Output Voltage: 12V
• Wattage: 75 Watts
• Transformer Type: Magnetic AC
• Weight: 8.41 lb (3.81 kg)
• Installation: Remote, accessible location
• Compatible Lighting Systems: MonoRail, Kable Lite, Wall MonoRail, FreeJack

Features

• Single 75-watt output for low-voltage lighting applications
• Fast-acting secondary circuit breaker for short circuit protection
• Plug-in transformer design for simplified installation
• Requires use with single feed canopy or power feed option (sold separately)
• Recommended maximum 70% load when used with LED fixtures to prevent inrush current issues
