TBLED3T95YRG/D10/7PRS LED Street Light

The TBLED3T95YRG/D10/7PRS is a high-performance LED street lighting fixture manufactured by RAB, designed for outdoor pole mounting applications. It delivers efficient and reliable illumination with a clear acrylic lens and a robust cast gray painted metal housing, suitable for electrical distributors and lighting solutions providers focusing on wire and cable and switchgear supplier markets. This fixture supports universal voltage operation and includes a 7-pin receptacle for photocell and dimming controls.

Specifications

• Manufacturer: RAB
• Model Number: TBLED3T95YRG/D10/7PRS
• Input Wattage: 93 watts
• Lumens: 9,667 lumens
• Efficacy: 104 lumens per watt
• Color Temperature: 3000 kelvins
• Color Rendering Index (CRI): 71
• Lens Material: Clear Acrylic
• Ambient Temperature Rating: 104 degrees Fahrenheit
• Minimum Starting Temperature: -40 degrees Celsius
• Product Weight: 10.8 lbs

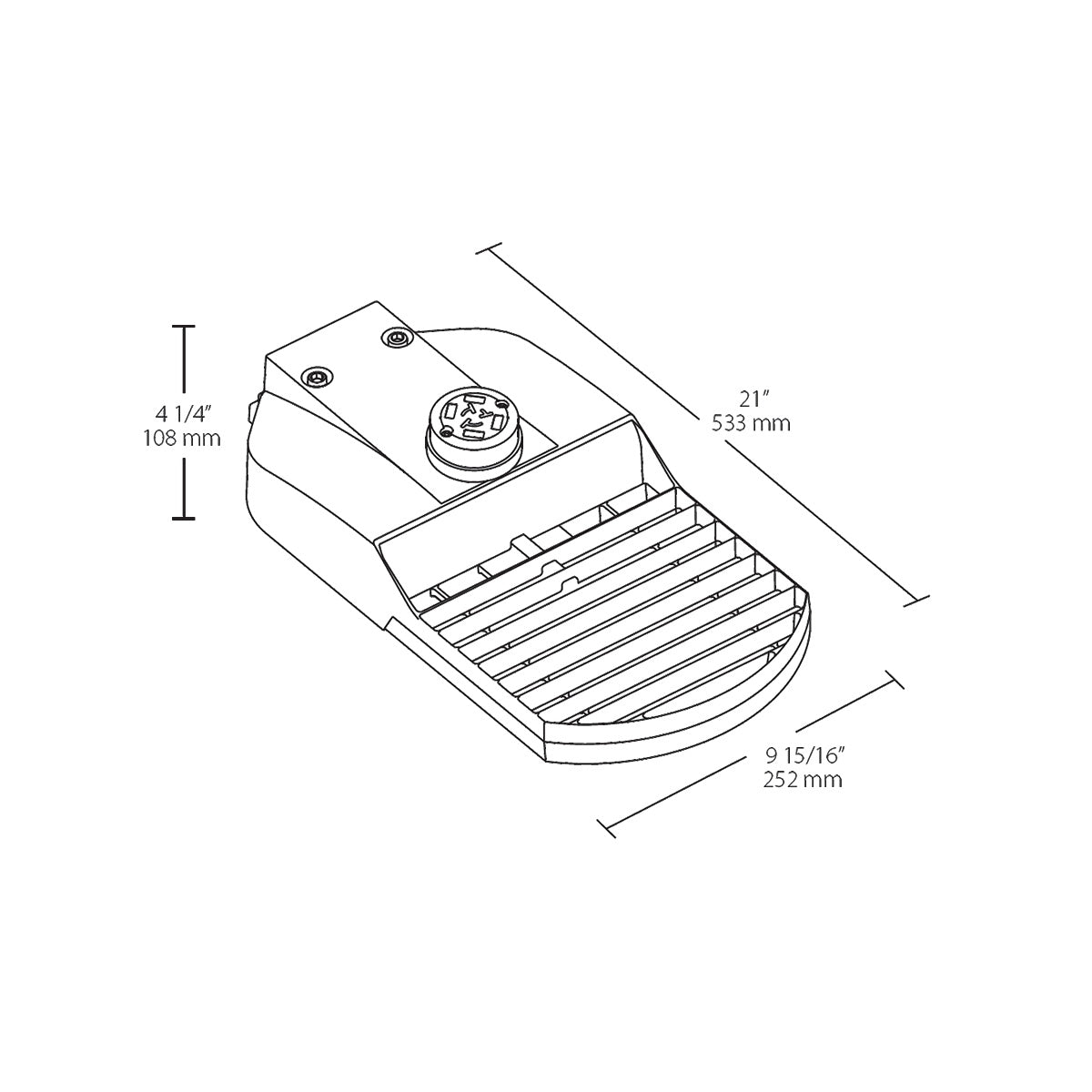

• Dimensions: 21" length x 9 15/16" width x 4 1/4" height (533 mm x 252 mm x 108 mm)
• UPC: 019813508214

Features

• High-efficiency LED driver (RDD-G096-A3500-240C) optimized for 120-277V operation
• Universal voltage driver with 0-10V dimmable wiring capability
• Equipped with 7-pin receptacle for photocell and twist-lock photocell options
• Durable cast gray painted metal housing with gray painted plastic door and finned metal heat sink for thermal management
• Tool-less entry latches for easy installation and maintenance
• Adjustable mounting angles (-5°, -2.5°, 0°, 2.5°, 5°) for precise aiming on pole tenons
• 10KV surge protector integrated for electrical protection
• Compliant with National Electrical Code (NEC) and local codes for safe installation
• Suitable for ambient temperatures up to 104°F and starting temperatures as low as -40°C
