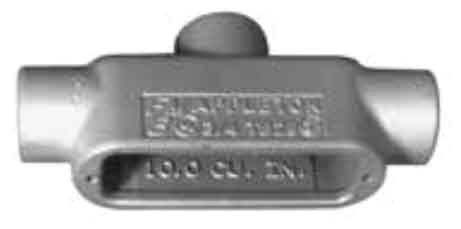

TB-150, IMC/Rigid Conduit Body for Electrical Conduit Systems

The TB-150 IMC/Rigid Conduit Body by O-Z Gedney is designed for use with rigid conduit and intermediate metal conduit (IMC) systems. It serves as a conduit fitting that facilitates changes in direction, branch connections, and access points for conductor splicing and maintenance. This product is suitable for electrical distributors and switchgear suppliers requiring durable and reliable conduit components for lighting solutions, wire and cable routing, and industrial electrical installations.

Specifications

• Application: For Rigid Conduit And IMC
• Material: Malleable Iron
• Finish: Zinc Electroplated With Aluminum Enamel
• Installation: Threaded
• Hub Size: 1-1/2"
• Length: 9-1/4 IN
• Width: 2-5/8 IN
• Product Weight: 3.9300 lbs
• Manufacturer: O-Z Gedney
• Manufacturer Part #: TB150

Features

• Serves as pulling fitting and allows conductor access for splicing and maintenance
• Connects and changes direction of conduit runs, enabling branch connections
• Constructed from high-strength, corrosion-resistant malleable iron
• Accurately tapped, tapered threads provide tight, rigid joints and excellent ground continuity
• Smooth, rounded integral bushings protect conductor insulation
• Raintight when used with Appleton™ cover and gasket (per Spec 5 series standards)
