Tamper-Resistant USB Receptacle, Type A/C, 20 Amp 125 Volt, Hospital Grade, White - Lev-Lok
SKU: #371749
Part: #M58AC-HGW
UPC: 078477434093
Tamper-Resistant USB Receptacle, Type A/C, 20 Amp 125 Volt, Hospital Grade, White - Lev-Lok
SKU: #371749
Part: #M58AC-HGW
UPC: 078477434093
Description

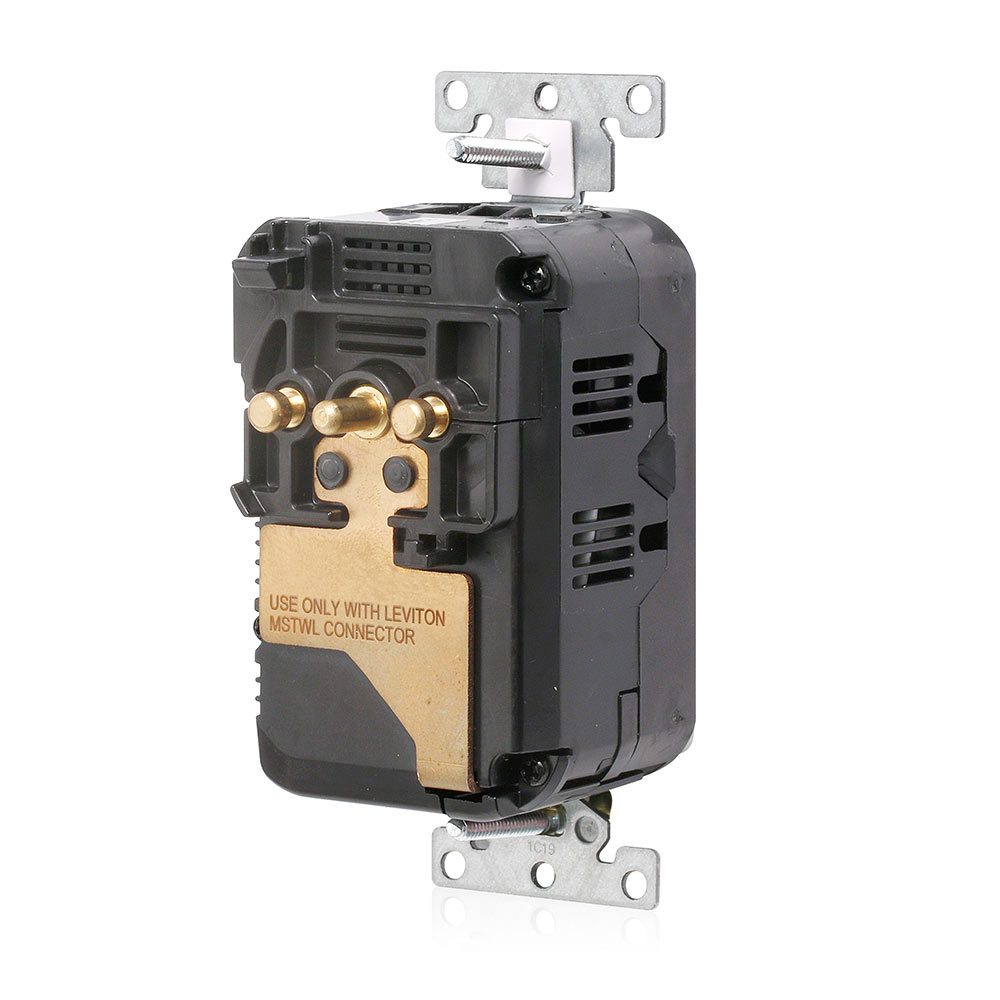

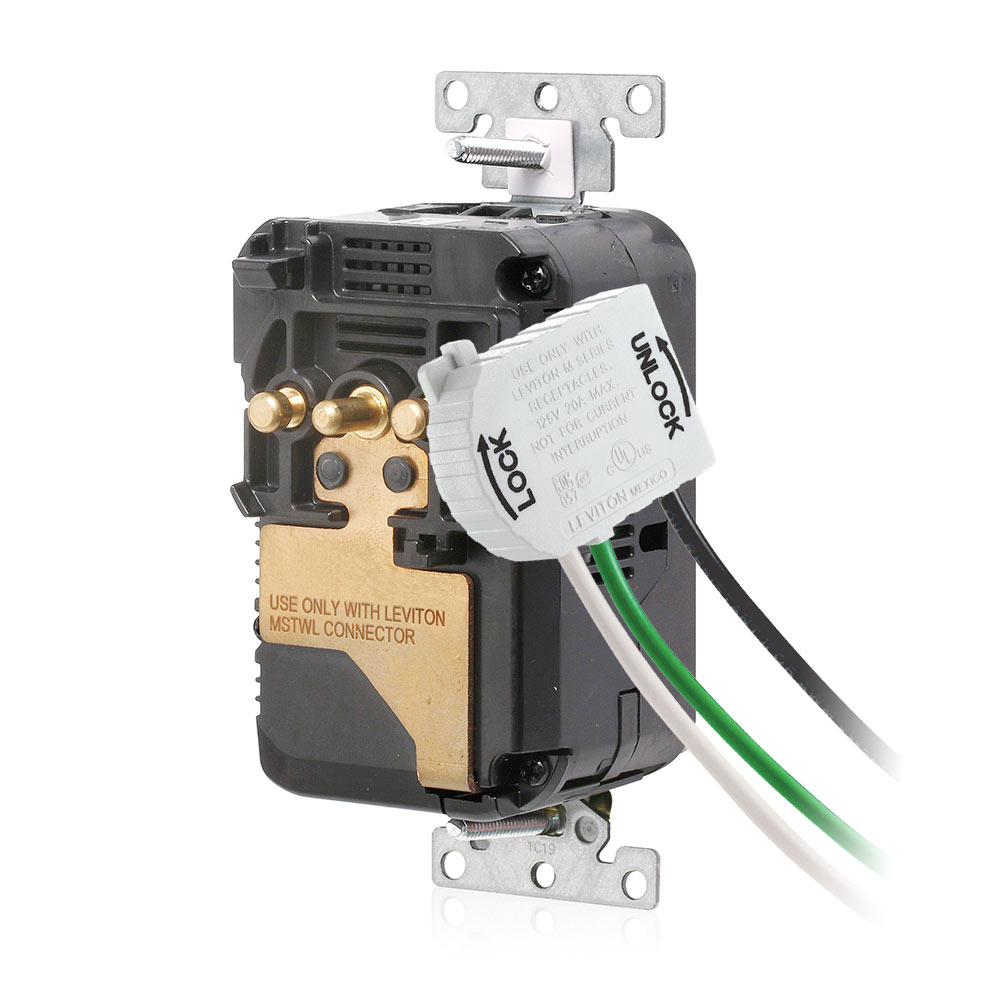

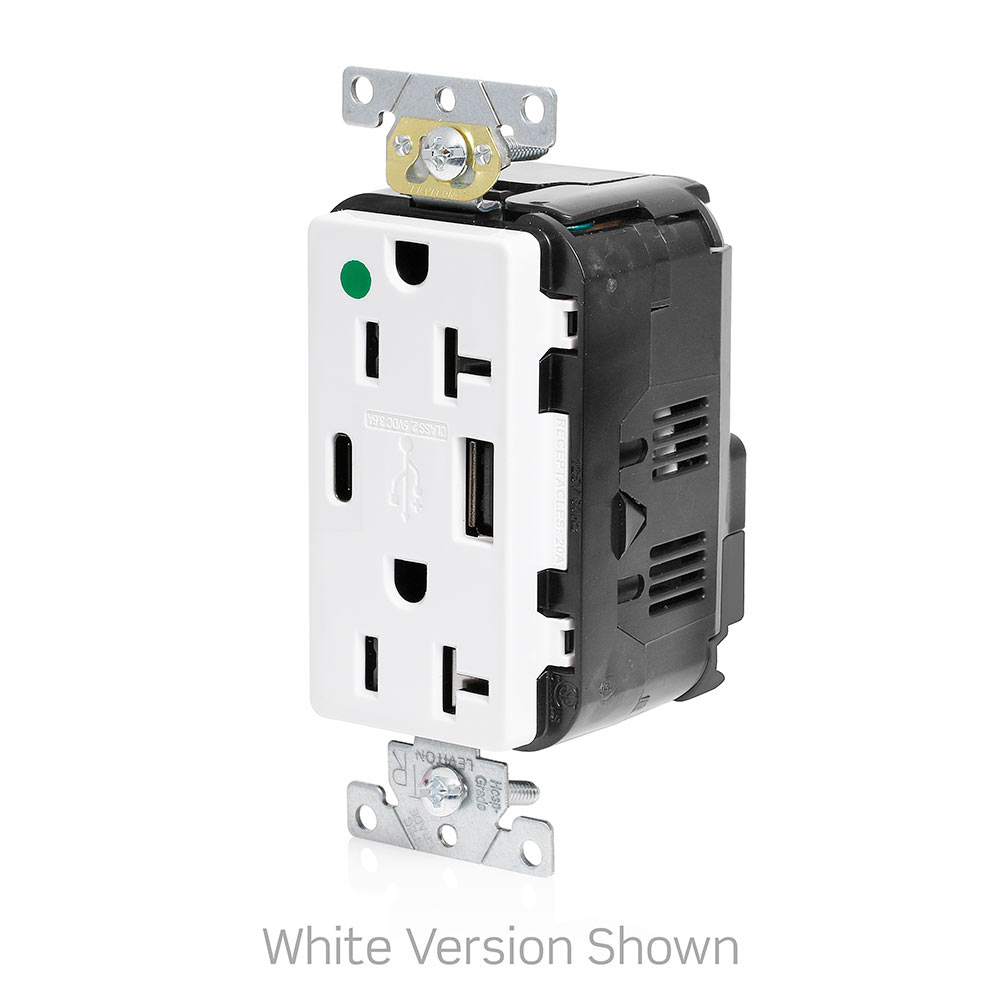

Tamper-Resistant USB Receptacle, Type A/C, 20 Amp 125 Volt, Hospital Grade, White - Lev-Lok USB Receptacle
This Lev-Lok combination tamper-resistant duplex Decora receptacle integrates dual-port USB Type A and Type C charging capabilities, designed for healthcare and commercial applications. It provides reliable 20A, 125V power with hospital-grade durability and enhanced safety features. Ideal for electrical distributors, lighting solutions providers, wire and cable suppliers, and switchgear suppliers seeking a versatile device for modern installations requiring USB charging and tamper-resistant protection.
Specifications
- Amperage: 20 amperes
- Voltage: 125 VAC
- NEMA Configuration: 5-20R
- Device Type: Combination Device
- Grade: Heavy-Duty Hospital
- Number of Poles: 2
- Number of Wires: 3
- Grounding: Self-Grounding
- Dielectric Voltage Withstands: 2000 volts
- Horsepower Rating: 1 horse power
- Body Material: PBT Thermoplastic polyester resin
- Face Material: Thermoplastic
- Flammability Class: Rated V-0 Per UL 94
- Operating Temperature: -10°C to 40°C
- Manufacturer: Leviton
- Manufacturer Part Number: M58AC-HGW
- Country of Origin: China
- Product Weight: 0.3960 lb
- USB Cable Compatibility: Type A or Type C
- Total USB Charging Power: 25 W, 5.1 A total
Features
- Tamper-resistant shutters comply with NEC Article 406.12
- Dual USB ports spaced for simultaneous use and reduced cable stress
- USB Type-C port provides faster charging aligned with emerging mobile device standards
- Impact and chemical resistant PBT face for extended service life in demanding environments
- Brass self-grounding clip for reliable grounding connection
- Improved strap design for enhanced mechanical support, even with ears removed
- Hospital grade construction ensures compliance with healthcare facility requirements
