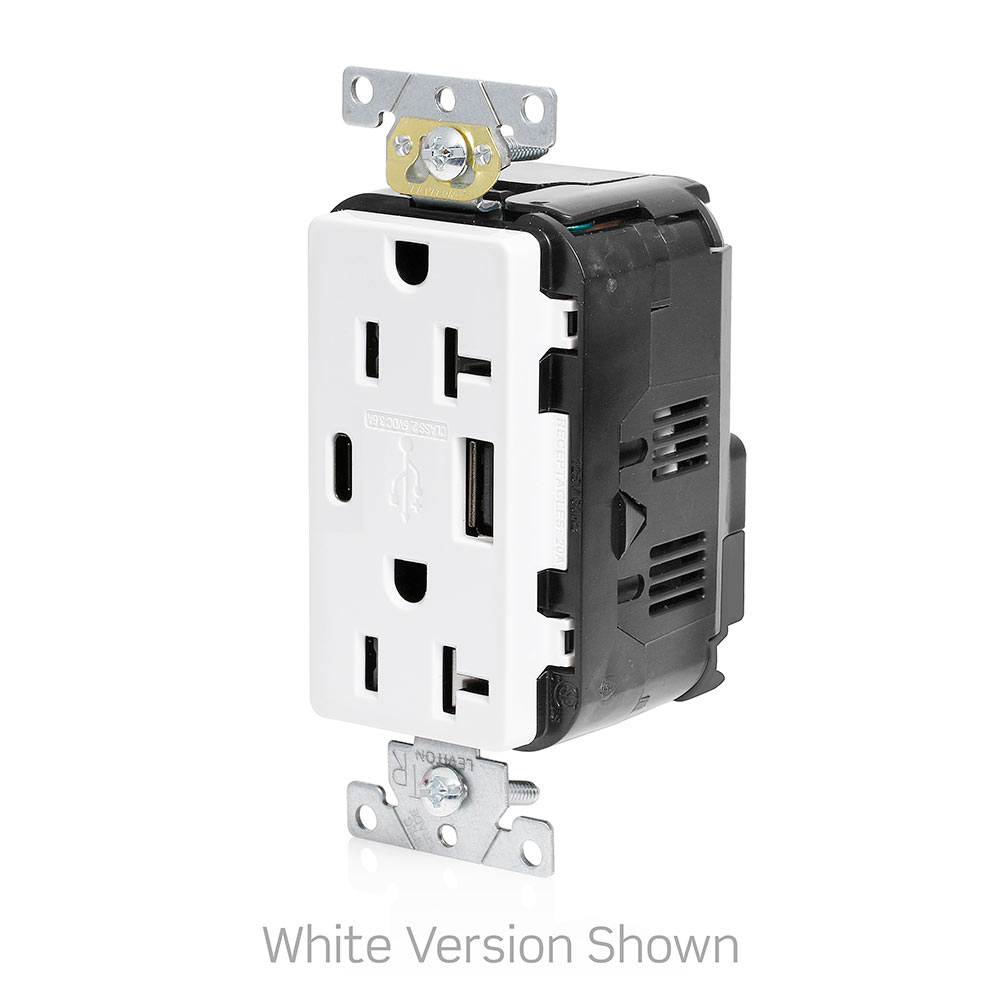

Tamper-Resistant USB Receptacle, Type A/C, 20 Amp 125 Volt, Commercial Grade, White - Lev-Lok USB Charging Receptacle

This Lev-Lok combination tamper-resistant duplex Decora receptacle integrates dual-port USB Type A and Type C charging capabilities with a NEMA 5-20R, 20A-125V electrical receptacle. Designed for commercial specification-grade applications, it supports simultaneous charging of multiple USB devices and provides reliable power distribution in health care, hospitality, educational, and commercial environments. The device is compatible with Leviton's MSTWL wiring device module, facilitating secure installation and integration for electrical distributors and switchgear suppliers.

Specifications

• Amperage: 20 amperes
• Voltage: 125 VAC
• Device Type: Combination Device
• Grade: Commercial Specification
• NEMA Configuration: 5-20R
• Number of Poles: 2
• Number of Wires: 3
• Grounding: Self-Grounding
• Dielectric Voltage Withstand: 2000 volts
• Horsepower Rating: 1 horse power
• Face Material: Thermoplastic
• Body Material: PBT Thermoplastic polyester resin
• Flammability Class: Rated V-0 Per UL 94
• Operating Temperature: -10¬∞C to 40¬∞C
• USB Charging Power: 25 W total, 5.1 A combined USB charging current
• USB Cable Compatibility: Type A and Type C
• Certification/Listing: cCSAus, NOM-ANCE
• Standards: UL 498, UL 1310, CSA C22.2 Nos. 42 and 223, NEMA WD-1 & WD-6, ANSI C-73
• Warranty: 5-Year Limited
• Country of Origin: China

Features

• Tamper-resistant shutters comply with NEC Article 406.12 requirements
• Dual USB ports spaced for simultaneous use and reduced USB cable stress
• USB Type-C port provides faster charging aligned with emerging mobile device standards
• Brass self-grounding clip enhances grounding reliability
• Impact and chemical resistant PBT face for extended service life
• Improved strap design for greater support, even if mounting ears are removed
• Compatible with most USB-powered devices including tablets, smartphones, and laptops

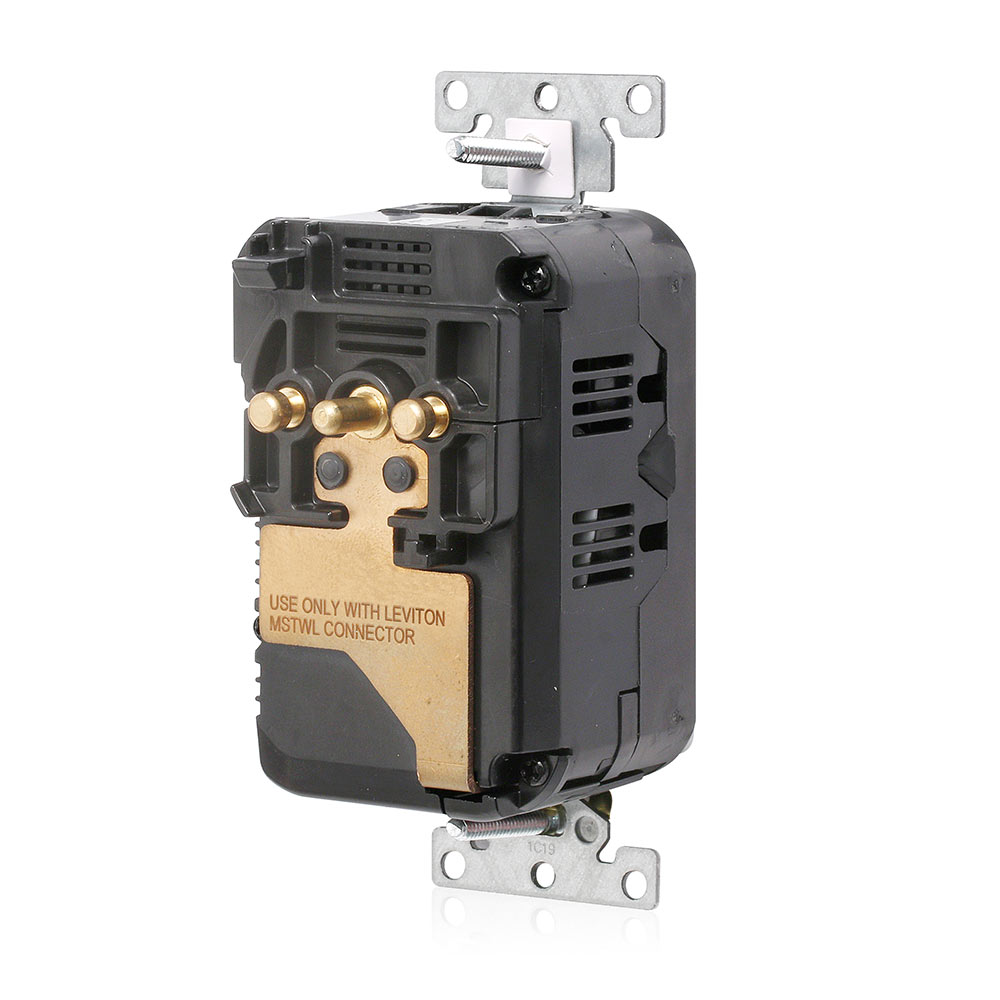

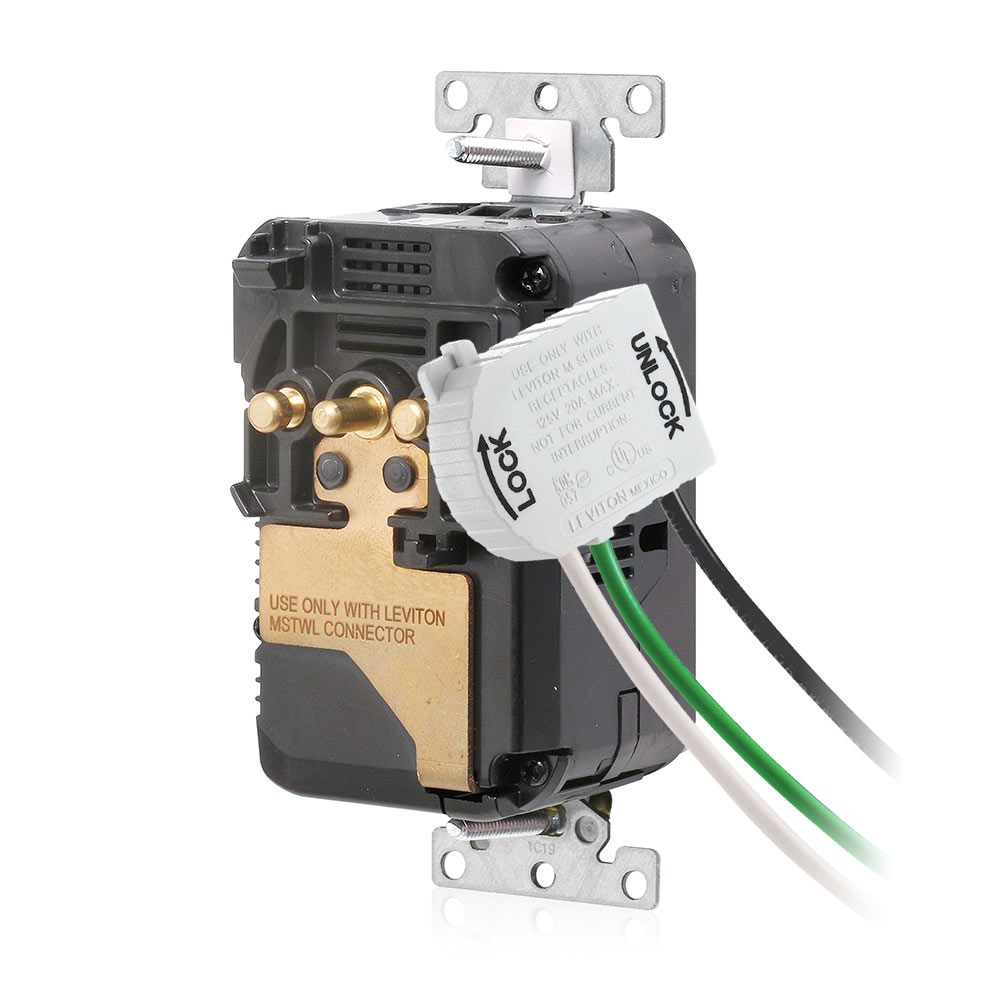

• Requires mating MSTWL Lev-Lok wiring device module for installation (sold separately)

Downloads & Links

• Lev-Lok USB Receptacle PB Q-1181
• PK-A3304-10-02-2A-W
• CATSTD-M58AC-000-D01
• CATSTD-M58AC-000-M01
• Straight Blade Receptacle Catalog Q-1101H
• Lev-Lok Brochure Q-360U (1)
• CATSTD-M58AC-000-M02
• CATSTD-M58AC-000-D02
• CATSTD-M58AC-000-D02
• CATSTD-M58AC-000-D01
