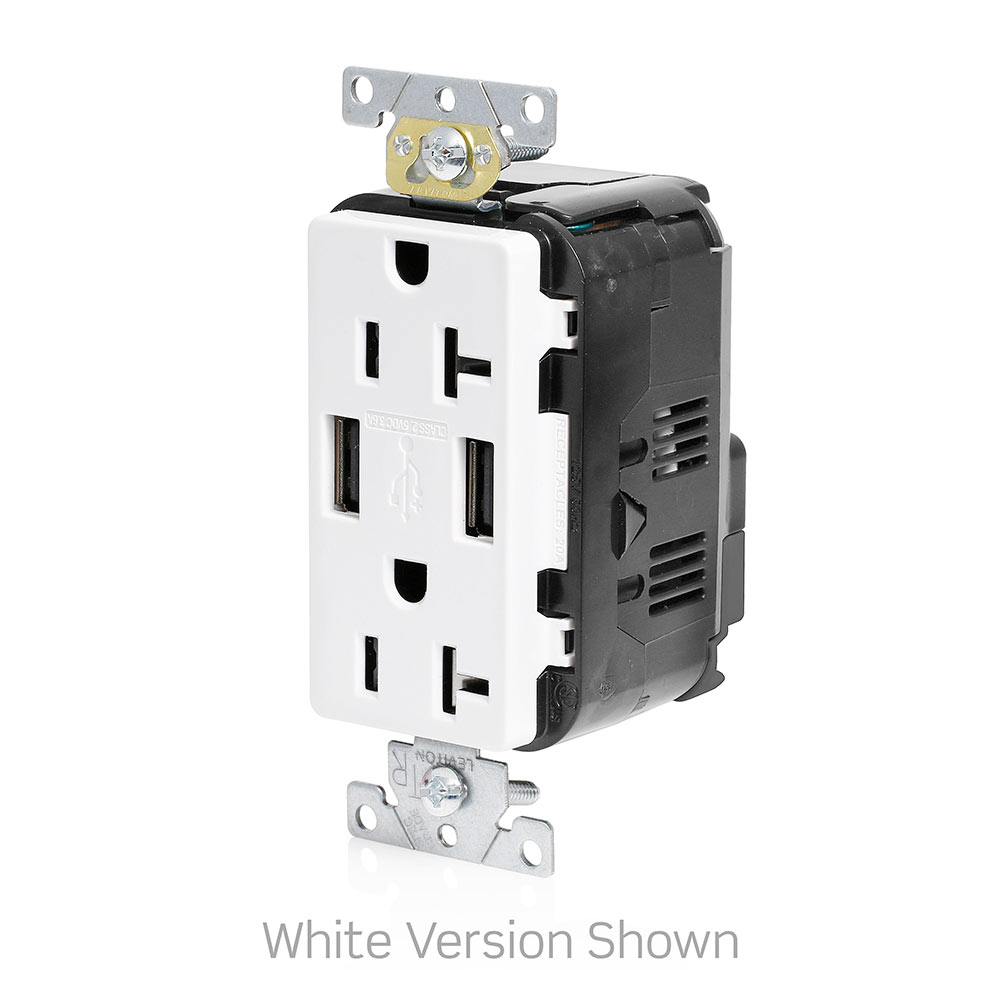

Tamper-Resistant USB Receptacle, Type A/A, 20 Amp 125 Volt, Commercial Grade, White - Lev-Lok

This Lev-Lok combination tamper-resistant duplex Decora receptacle integrates dual-port USB Type A-A charging, designed for commercial electrical distribution and lighting solutions. It supports a 20A, 125V, 2-pole, 3-wire grounding configuration with self-grounding capability. Ideal for wire and cable installations requiring secure, reliable power and USB charging in commercial and institutional environments.

Specifications

• Amperage: 20 amperes
• Voltage: 125 VAC
• Device Type: Combination Device
• Grade: Commercial Specification
• NEMA Configuration: 5-20R (WD-1)
• Number of Poles: 2
• Number of Wires: 3
• Grounding: Self-Grounding
• Dielectric Voltage Withstand: 2000 volts
• Horsepower Rating: 1 horse power
• Operating Temperature: -10°C to 40°C
• Body Material: PBT Thermoplastic polyester resin
• Face Material: Thermoplastic
• Flammability Class: Rated V-0 per UL 94
• Manufacturer Part #: M58AA-W
• Country of Origin: China
• Product Weight: 0.3960 lbs

Features

• Tamper-resistant shutters comply with NEC Article 406.12
• Dual USB Type A ports provide a combined total of 3.6A charging power
• USB ports spaced for simultaneous use and reduced cable stress
• Impact and chemical resistant PBT face ensures long service life
• Brass self-grounding clip for reliable grounding connection
• Improved mounting strap design for greater support, even with ears removed
• Commercial specification grade suitable for demanding applications

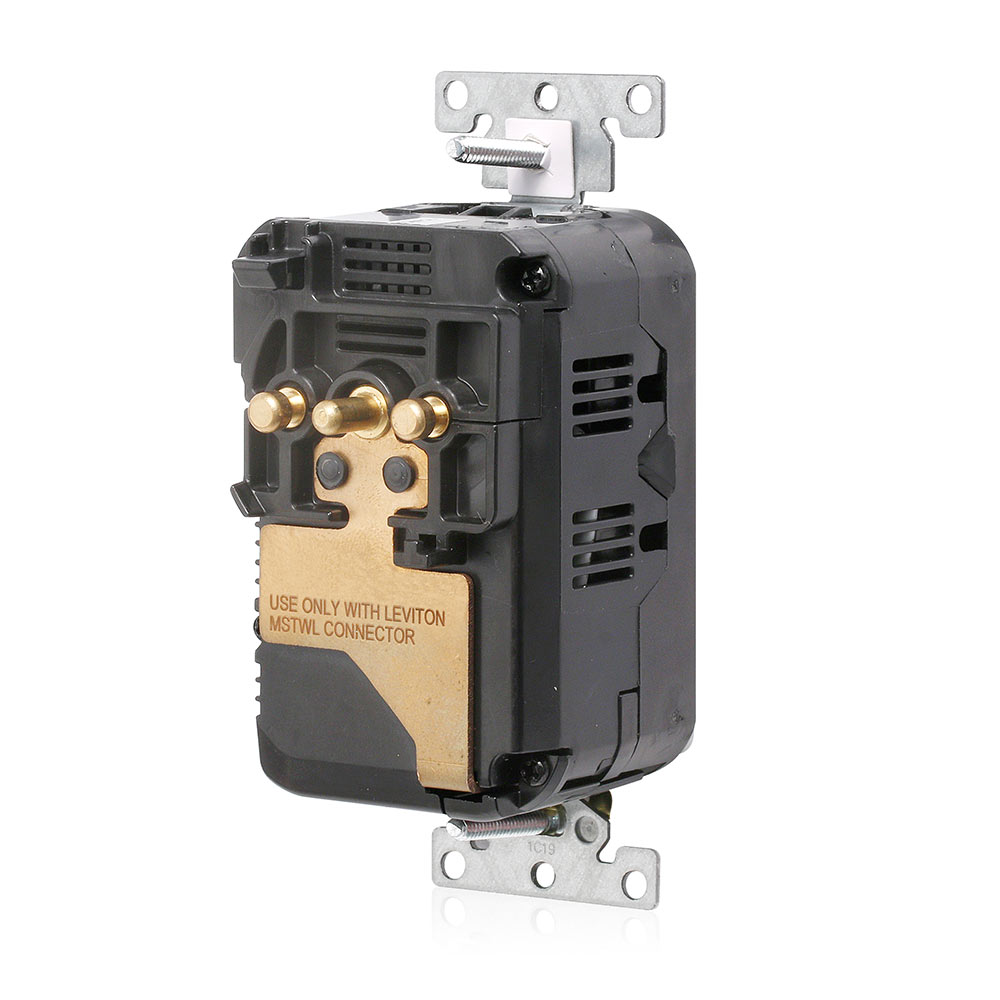

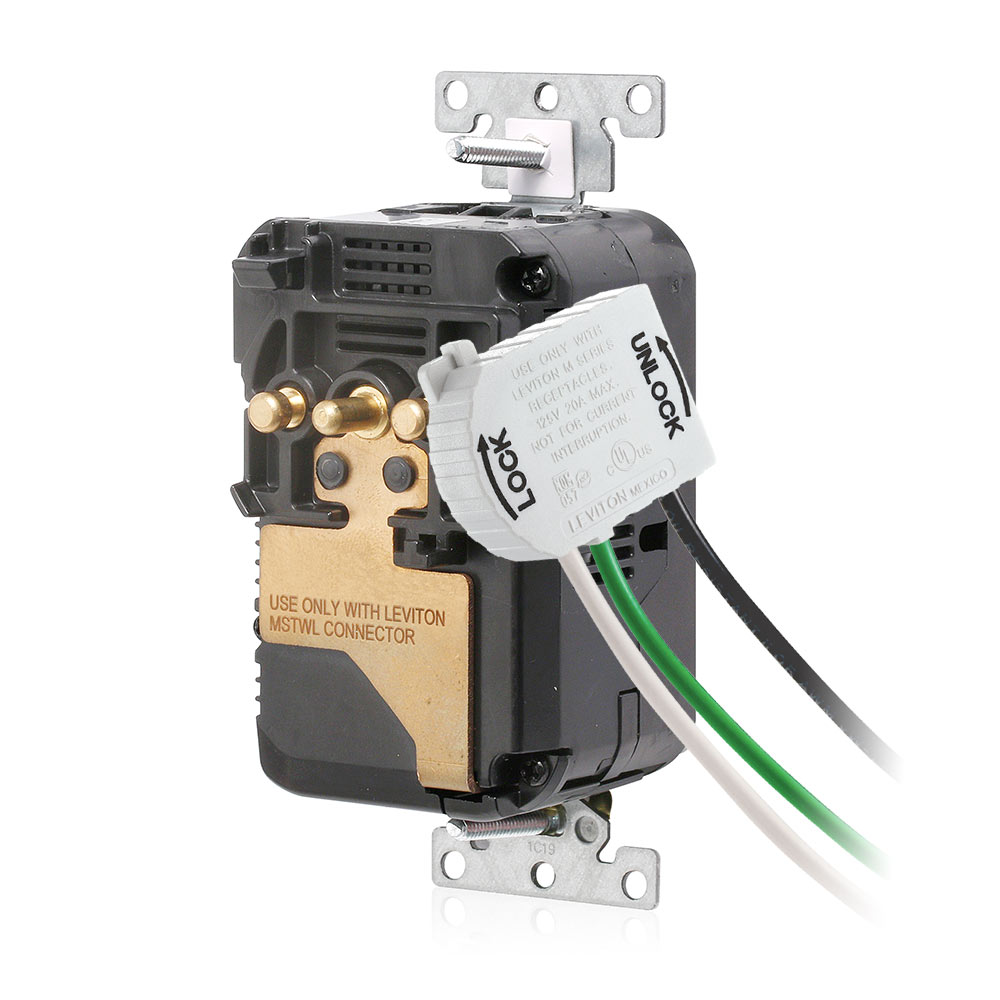

• Compatible with Lev-Lok MSTWL wiring device modules (sold separately)
• 5-Year limited warranty

Downloads & Links

• Lev-Lok USB Receptacle PB Q-1181
• CATSTD-M58AA-000-D01
• Lev-Lok Brochure Q-360U (1)
• CATSTD-M58AA-000-D02
• CATSTD-M58AA-000-M01
• product-cleaning-instructions
• CATSTD-M58AA-000-D02
• Straight Blade Receptacle Catalog Q-1101H
• CATSTD-M58AA-000-M02
• PK-A3304-10-02-2A-W
• CATSTD-M58AA-000-D01
