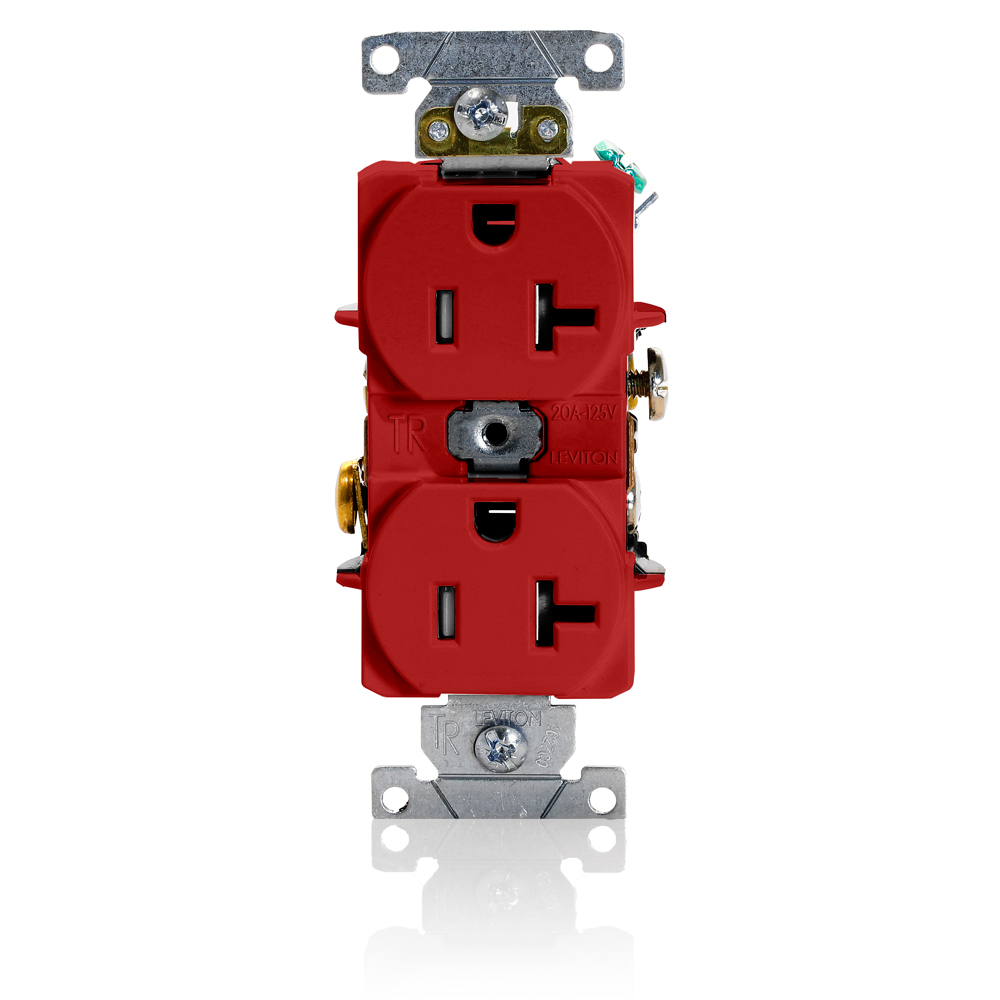

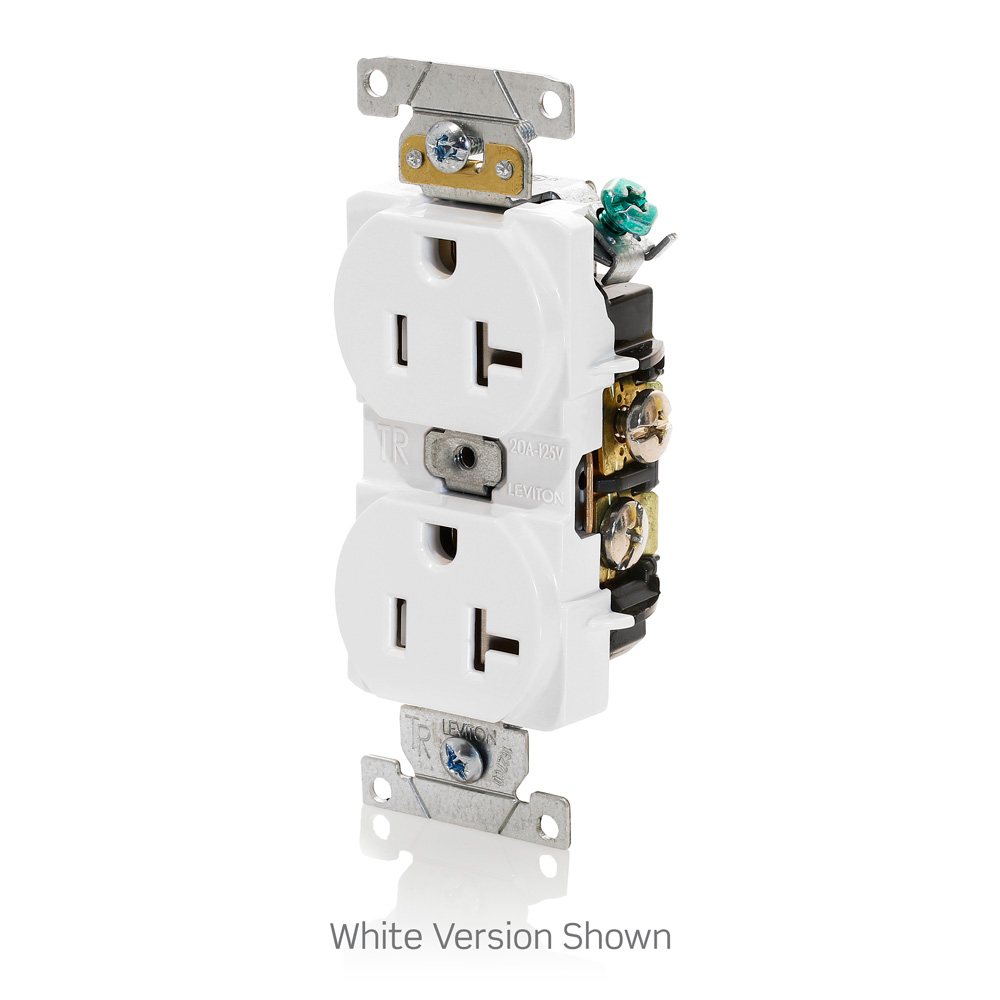

Tamper-Resistant Duplex Receptacle, 20 Amp, 125 Volt - Industrial Electrical Outlet

This Tamper-Resistant Duplex Receptacle is a heavy-duty industrial specification grade electrical outlet designed for commercial and institutional applications. It provides reliable power distribution with a 20 amp, 125 volt rating and complies with National Electrical Code Article 406 for tamper-resistant receptacles. Suitable for use by electrical distributors, lighting solutions providers, wire and cable suppliers, and switchgear suppliers, this device supports back or side wiring installations and features self-grounding for enhanced safety.

Specifications

• Amperage: 20 amperes
• Voltage: 125 volts
• Device Type: Duplex Receptacle Outlet
• Grade: Heavy-Duty Industrial Specification
• Grounding: Self-Grounding
• Number of Poles: 2
• Number of Wires: 3
• Wire Type: Stranded Building Wire
• Dielectric Voltage: 3000 volts
• Horsepower Rating: 1 horse power
• Operating Temperature: -40¬∞C minimum, maximum continuous 75¬∞C (without impact)
• Body Material: PBT Polyester Blend
• Face Material: PBT Polyester Blend
• Flammability Class: Rated V-0 Per UL 94
• Mounting Strap: Steel (Galvanized G60)
• Terminal Clamp: Brass
• Terminal Screws: #8 Triple-Drive Brass
• Ground Clip: Brass
• Line Contacts: 0.030‚Äù Phosphor Bronze
• Terminal Accommodation: #14 - #10 AWG
• Termination: Back and Side Wire
• Certification/Listing: cULus, NOM-ANCE
• Applicable Standards: UL 498, Fed Spec W-C 596, CSA C22.2 No. 42
• RoHS Compliant
• Country of Origin: Mexico
• Product Weight: 0.2194 lb
• Manufacturer: Leviton
• Manufacturer Part #: T5362-R
• Warranty: 10 Years

Features

• Patented tamper-resistant safety shutter mechanism prevents insertion of foreign objects
• Brass self-grounding clip permanently staked for secure and reliable grounding
• Wide receptacle face shelf provides exceptional support to wallplates or box covers
• ‚ÄúUniversal‚Äù strap design with multiple ‚Äúbreak-off‚Äù tabs eliminates interference with virtually any cover or wall plate
• Oversized brass terminal screw heads provide superior clamping force and electrical conductivity

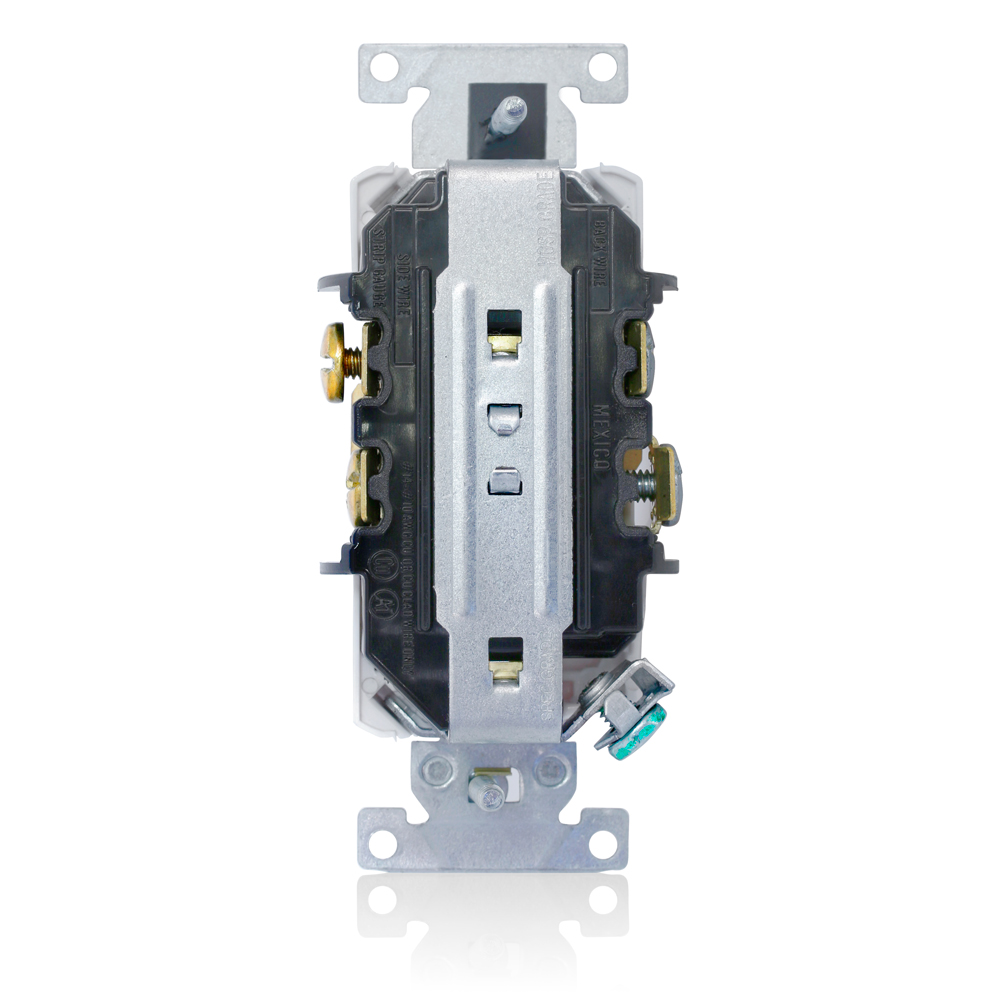

• External wiring clamps allow for back or side wiring with visual verification of termination for faster, easier installation
• Body and face made of impact-resistant advanced engineering polymer for extreme durability
• Molded-in ribs prevent terminal screws from making contact with wall box
• Self-grounding when installed in a properly grounded metallic box
• Compatible with solid or stranded wire types
