Performance Overview

• Load Capacity: 300 lbs
• Reach Height: 10 ft
• Type: Type IA Duty Rating
• Style: Twin
• Size: 6 ft
• Performance Rating: 4 star

Features

• Slip-resistant foot pads attached to the EDGE® structure

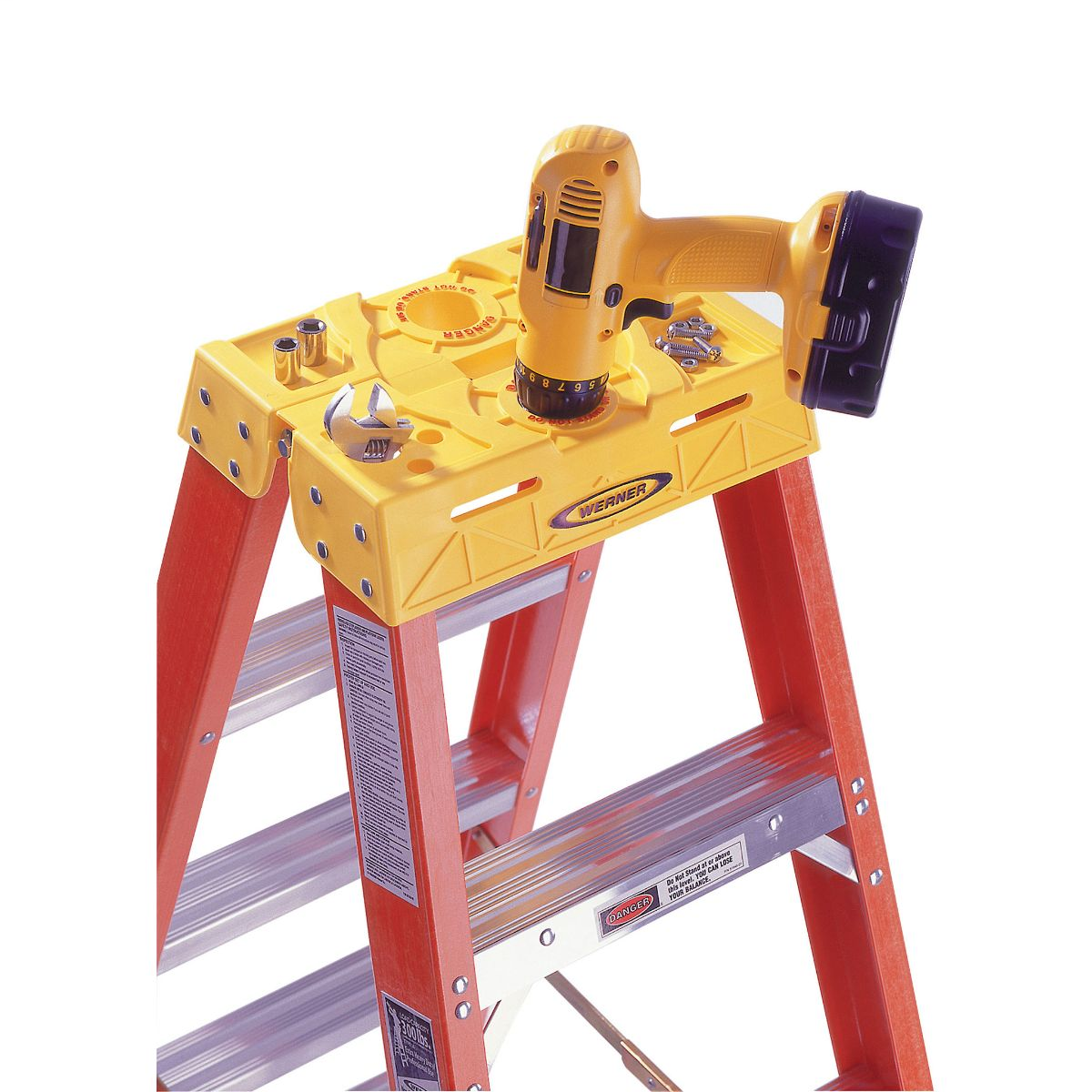

• High performance dual HolsterTop paint and tool holder
• EDGE® molded brace and foot pad combination provides enhanced bracing strength and increased protection against damage

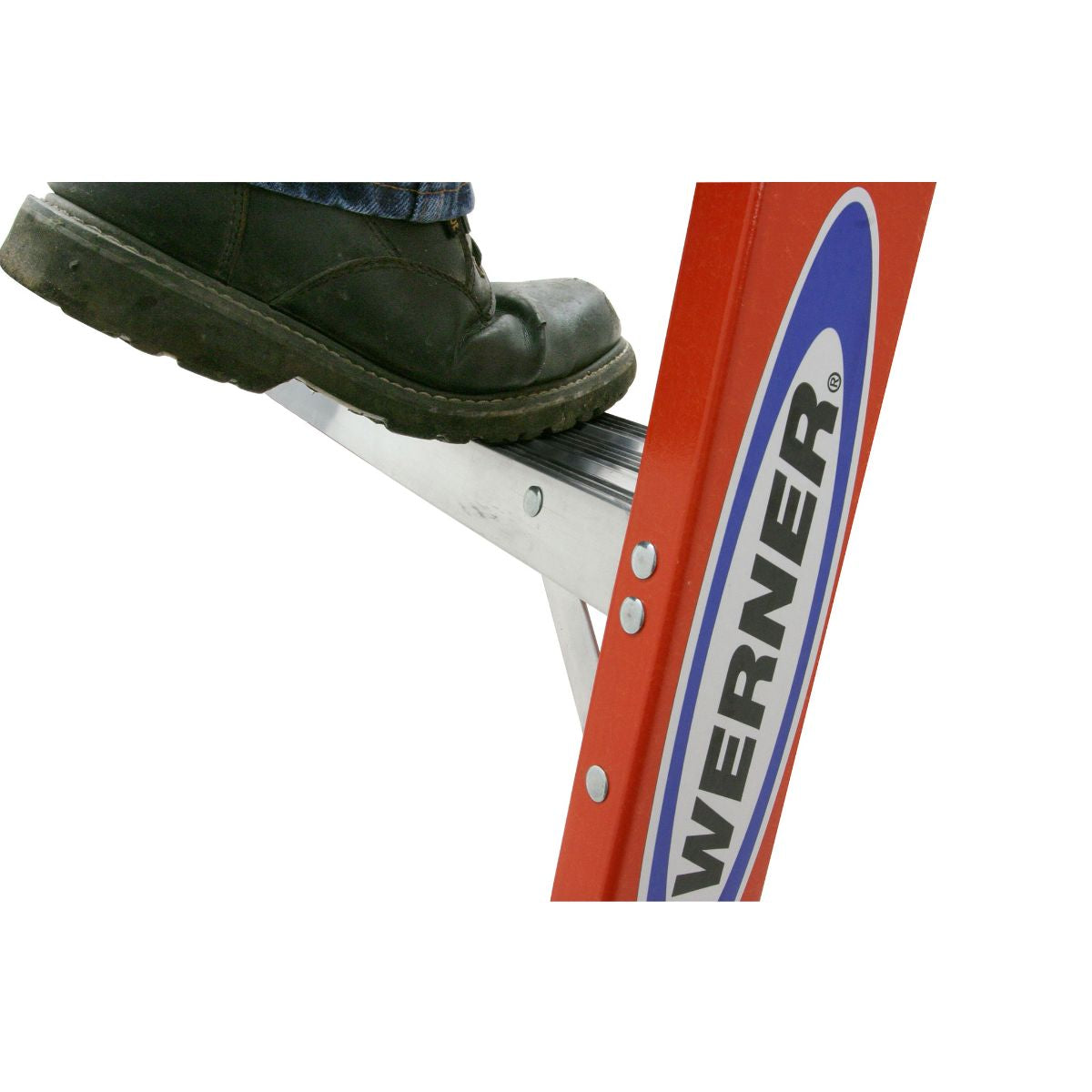

• Double riveted slip-resistant TRACTION-TRED® steps
• Heavy duty internal spreaders
• Every rivet backed up by metal, metal plates or washers to protect rails
• All steps are knee-braced
• *Energy Diffusing Geometry
• 4 rivets attach top to each rail
• Maximum load per side, including person and materials, shall not exceed duty rating of ladder
• Design for one or two-person jobs

Specifications

• Spreader Material: Steel
• Performance Rating: 4 star
• Load Capacity: 300 lbs
• Size: 6 ft
• Material: Fiberglass
• Reach Height: 10 ft
• Approx. Cu. Ft. Per Unit: 8
• With Pail Shelf: No
• Approx. Width: 23-3/8 in
• Approx. Shipping Wt. Lbs.: 27
• Edge Bracing: Heavy
• Type: Type IA Duty Rating
• Certifications: ANSI A14.5 (2007); OSHA
• Description of Top Features: 2 Paint tray slots, 6 tool holes, 2 drill holes, 2 @ quart paint can, gallon paint can, 2 parts trays
• Max. Standing Height: 3 ft 10 in
• Approx. Spread: 50-1/8 in

Dimensions

• Rear Flange Dimension: 1-3/16 in
• Top Dimension: 8-1/2 in x 13 in
• Steps Dimension: 3 in
• Front Flange Dimension: 1-3/16 in
• Rear Rails Dimension: 3-1/8 in
• Front Rails Dimension: 3-1/8 in

Accessories

• 21-22 Grating Shoes

Additional T6200 Series Models

• T6204
• T6205
• T6206
• T6210
• T6203
• T6208
• T6212
