T6-1000 Electrical Tester with FieldSense Technology

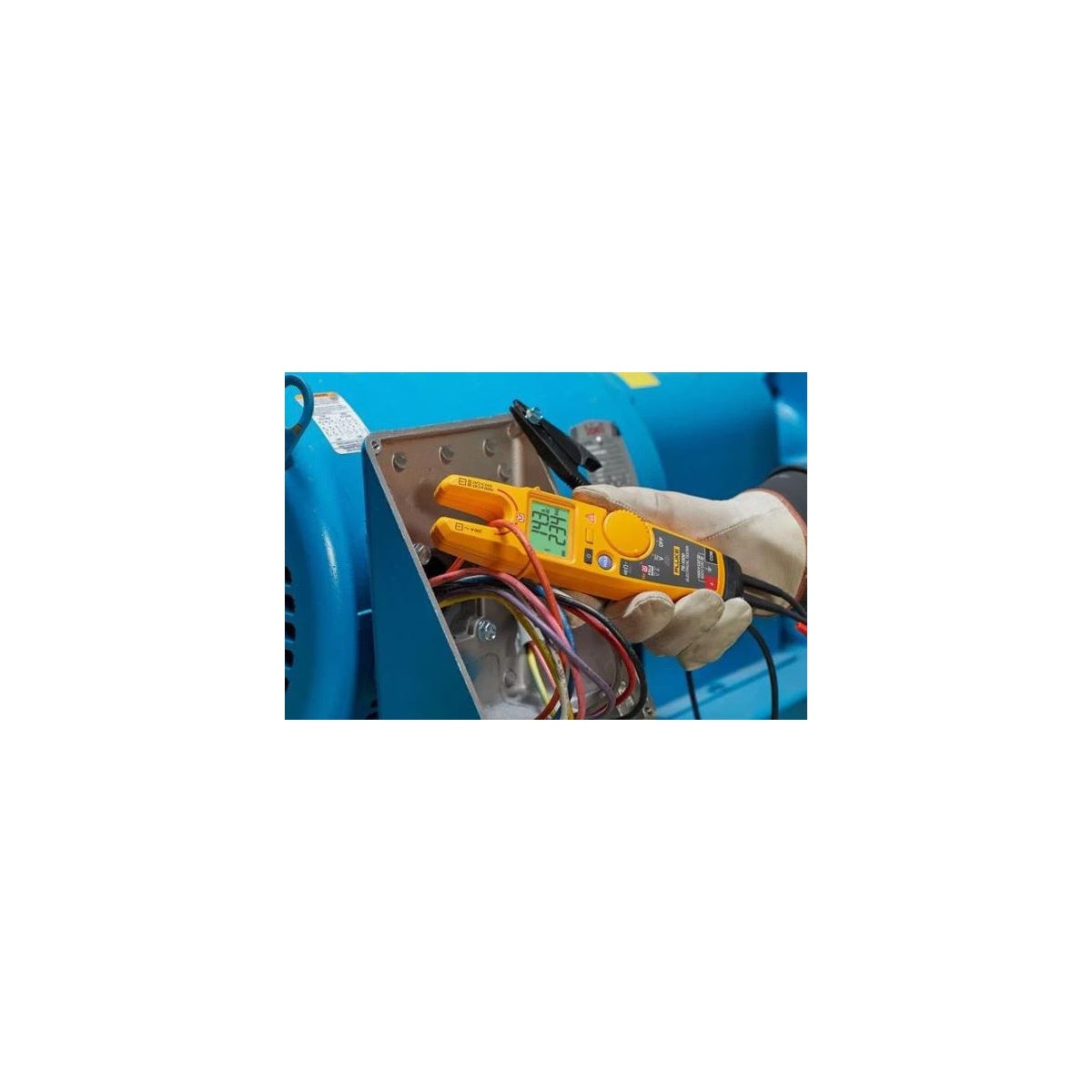

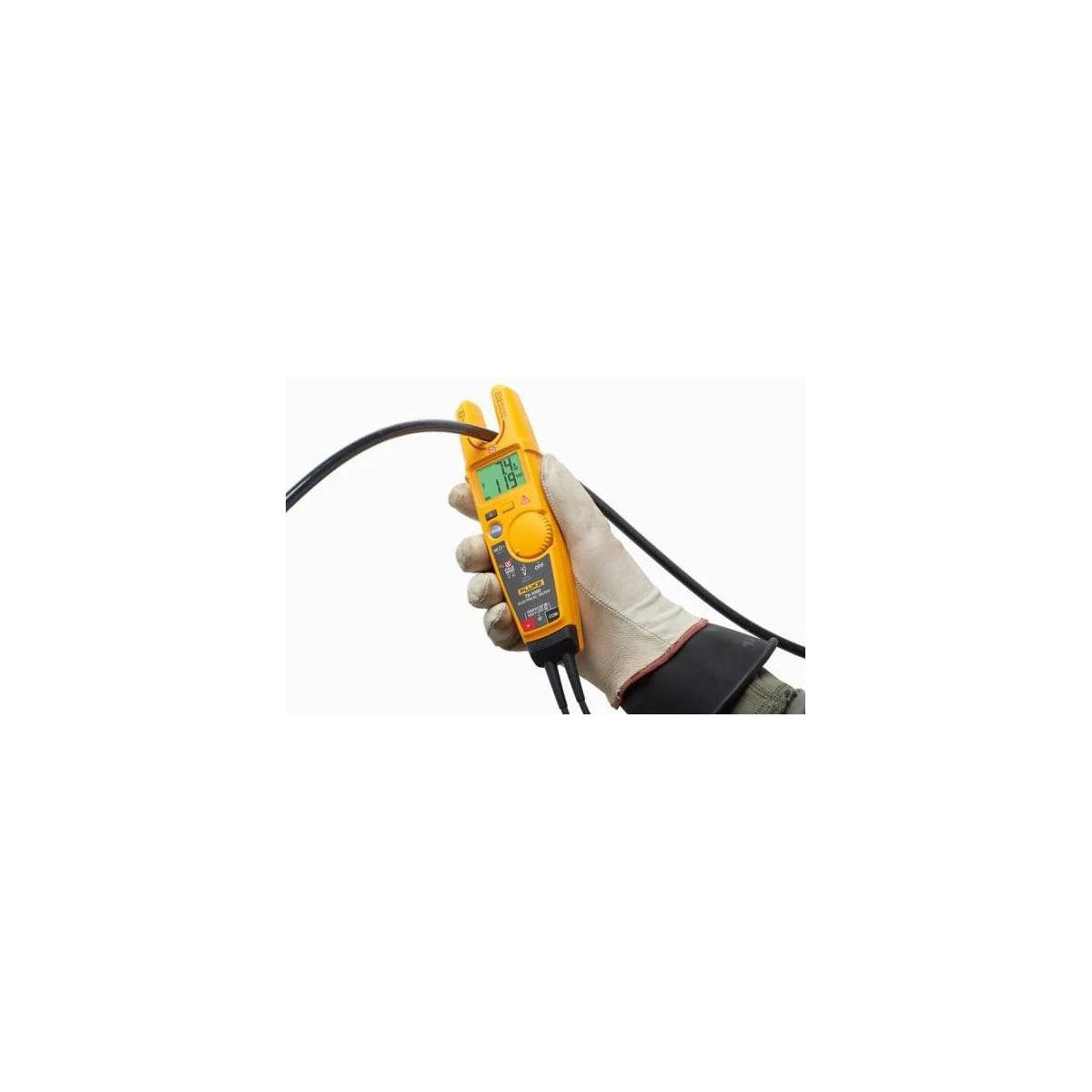

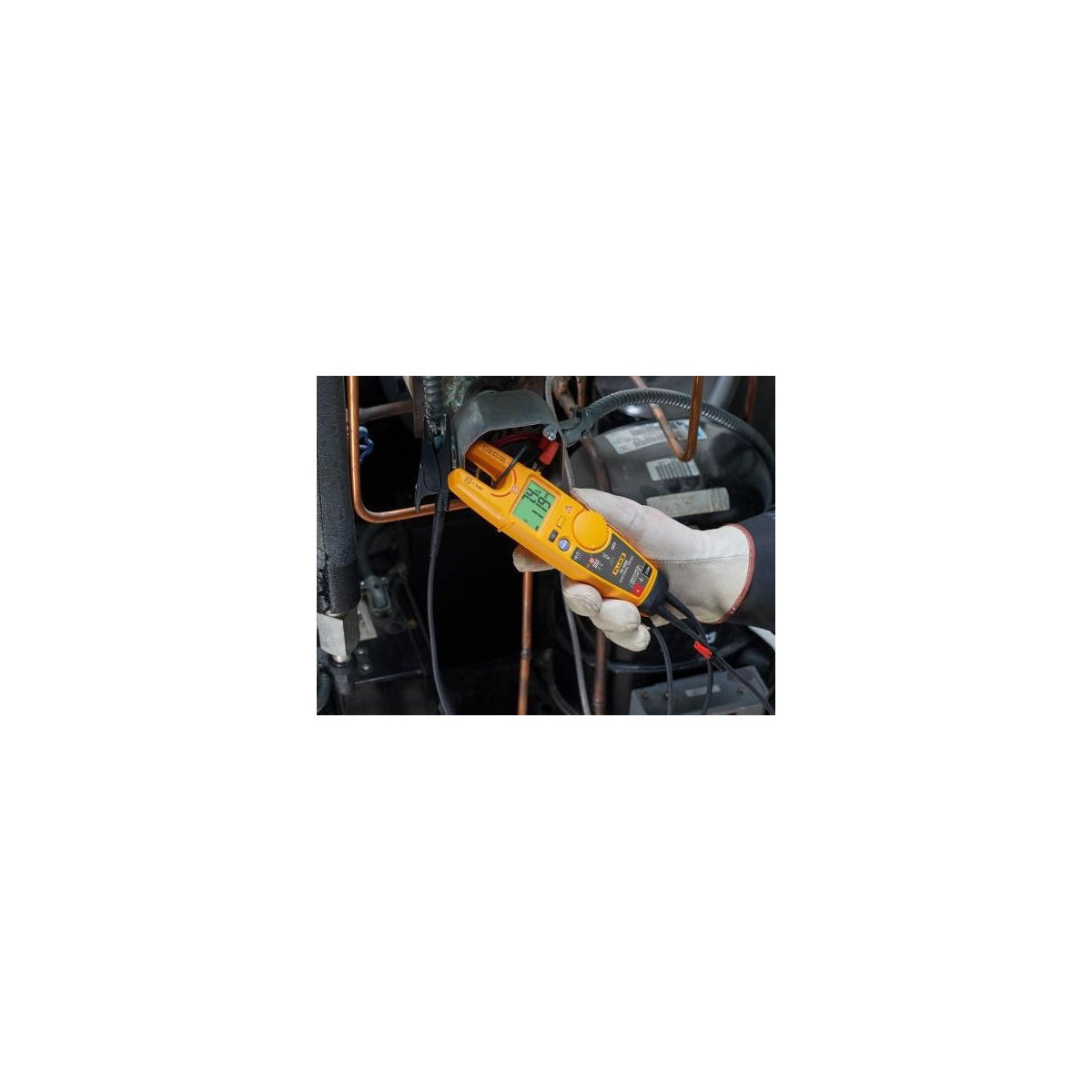

The Fluke T6-1000 Electrical Tester is designed for quick and safe True RMS voltage and current measurements without the need for test leads, making it an essential tool for electrical distributors, lighting solutions providers, wire and cable specialists, and switchgear suppliers. Utilizing FieldSense™ technology, it measures voltage and current simultaneously by sliding the 17.8 mm open fork over conductors, accommodating wires up to AWG 4/0 (120 mm²). It also supports traditional voltage measurements with attached test leads for DC voltages up to 1000 V.

Specifications

• Battery Type and Life: 2 x AA (IEC LR6), 360 hours continuous use, typically 200 hours with FieldSense
• Fork Opening: 17.8 mm (widest in the industry)
• Operating Temperature: -10 °C to +50 °C (+14 °F to +122 °F)
• Storage Temperature: -30 °C to +60 °C (-22 °F to +140 °F)
• Operating Relative Humidity: 0–95% (5 °C to 30 °C), 0–75% (30 °C to 40 °C), 0–45% (40 °C to 50 °C)
• Operating Altitude: up to 2000 m
• Storage Altitude: up to 10,000 m
• Safety Ratings: IEC 61010-1 Pollution Degree 2, IEC 61010-2-032, IEC 61010-2-033; CAT IV 600 V / CAT III 1000 V
• Electromagnetic Compatibility: IEC 61326-1; CISPR 11 Group 1, Class A
• Voltage Measurement Range (FieldSense ac voltage true-rms): up to 1000 V
• Current Measurement Range (FieldSense ac current true-rms): up to 200 A
• Frequency Range (FieldSense): 45 Hz to 66 Hz
• Resistance Measurement Range: up to 100 kΩ
• Product Weight: 1.1 lb (approximate)

Features

• FieldSense™ technology enables simultaneous voltage and current measurements without direct contact with live conductors
• Open fork design allows measurements on large conductors up to AWG 4/0 (120 mm²)
• True RMS measurement for accurate readings on non-linear loads
• Attached test leads provide traditional voltage measurement capability up to 1000 V DC
• Safety rated for CAT IV 600 V / CAT III 1000 V environments
• Battery door circuit protects against electric shock and ensures safe operation
• Low battery indicator to prevent inaccurate readings
• Durable design with double insulation and compliance with international safety and EMC standards
