T/Y+JUG, Wire Connector
SKU: #15086
Part: #T/Y+JUG
UPC: 051128552193
T/Y+JUG, Wire Connector
SKU: #15086
Part: #T/Y+JUG
UPC: 051128552193
Total Price: $0.14 per each Sold in increments of 500 each
Description
T/Y+JUG Wire Connector by 3M – Electrical Wire Connector

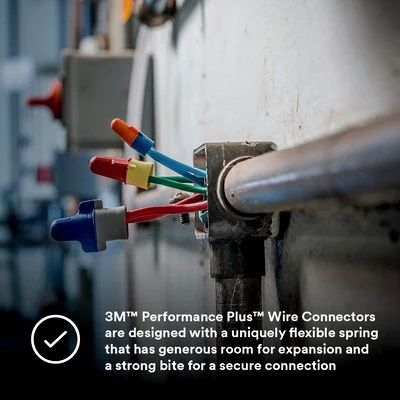

The 3M T/Y+JUG Wire Connector is designed specifically for residential electrical applications, replacing multiple traditional wire nuts such as yellow, orange, blue, and gray connectors. It simplifies wire connector selection by covering wire combinations from 22 to 12 AWG, reducing inventory needs for electrical distributors and lighting solutions providers. Engineered with a flexible spring, it allows generous room for expansion and provides a secure, strong bite for reliable wire connections. This wire connector is suitable for use with copper wire and supports a maximum voltage of 600 volts, making it an essential component for wire and cable installations.
Specifications
- Material: Plastic
- Connection Type: Wire
- Maximum Voltage: 600 volts
- Maximum Operating Temperature: 105 degrees Celsius
- Flame Retardant: Yes
- Product Weight: 1.57 lbs
- Manufacturer: 3M
- Manufacturer Part #: T/Y+JUG
- Wire Size Range: 22 to 12 AWG (as per catalog details)
Features

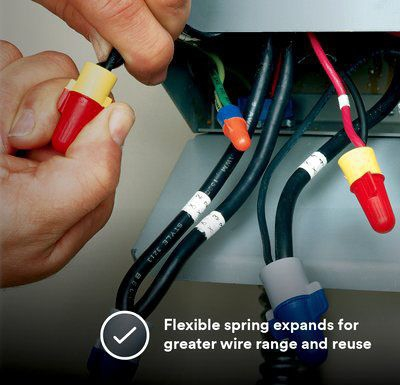

- Flexible spring design allows for expansion and reuse
- Strong bite ensures secure, reliable wire connections
- Replaces multiple wire nuts, simplifying connector selection
- UL Listed for 600 volts on copper wire
- Flame retardant construction enhances safety in residential wiring
- Reduces inventory complexity for electrical distributors and switchgear suppliers
