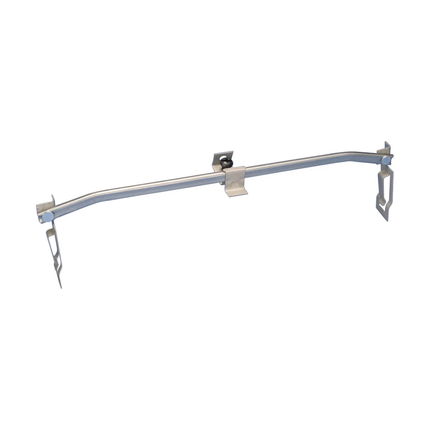

The T-Grid Box Hanger bracket provides secure mounting support for electrical junction boxes across suspended ceiling systems. It features an adjustable 30 inches T-grid span design for reliable installation in institutional and office environments.

• Rating: Engineered for standard electrical box mounting applications
• Installation compatibility: Designed for 30 inches grid spacing in suspended ceiling systems, requiring minimal installation tools
• Build: Durable metal fabrication for long-term structural integrity
• Application: Supports junction boxes above drop ceilings without additional framing
• Compliance: Meets electrical code requirements for secure bracket mounting

Features

• Dual height feature permits 1-1/2" (38 mm) deep electrical box to be mounted flush with tile or offset 3/4" (19 mm) for plaster ring
• Allows 2-1/8" (54 mm) deep electrical box to be mounted flush with tile
• Snaps easily onto T-Grid
• Hanger comes complete with box mounting clip and screw

Specifications

• Weight: 0.21 kilogram
• Material: Steel
• Finish: Pregalvanized
• T-Grid Span: 762
• Ultimate Static Load (F): 80
• Sub Brand: CADDY
