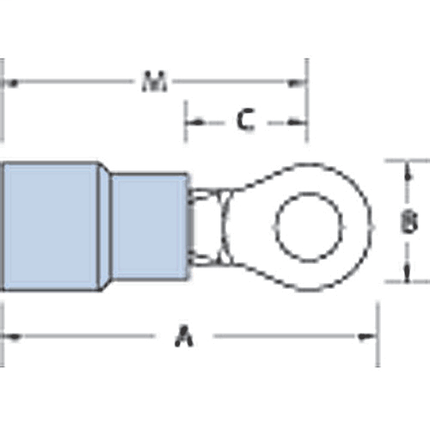

T&B RB14-8 18-14 Nylon Ring Terminal – Wire and Cable Termination

The T&B RB14-8 insulated nylon ring terminal is designed for secure and reliable electrical connections in wire ranges 18-14 AWG with a stud size of #8. Manufactured by Thomas & Betts, this copper terminal features electro tin-plated finish and nylon insulation, making it suitable for wire and cable applications requiring durable and flame-resistant components. This product is ideal for electrical distributors and switchgear suppliers seeking quality wire termination solutions with enhanced safety and performance.

Specifications

• Material: Copper
• Insulation Type: Insulated Nylon
• Finish: Electro Tin-Plated
• Color: Blue
• Wire Range: 18-14 AWG
• Stud Size: #8
• Product Weight: 1.5 lbs
• Flammability Class: Rated V-2 Per UL94

Features

• Durable copper construction with electro tin-plated finish for corrosion resistance
• Insulated nylon grip for electrical safety and mechanical protection
• Flame retardant rating ensures compliance with UL94 V-2 standards
• Color-coded blue insulation for easy wire size identification
• Compatible with wire sizes 18-14 AWG and stud size #8 for versatile electrical connections
