SystemOne Fire-Rated Poke-Through 4" Fitting Only - Through-Floor Fittings

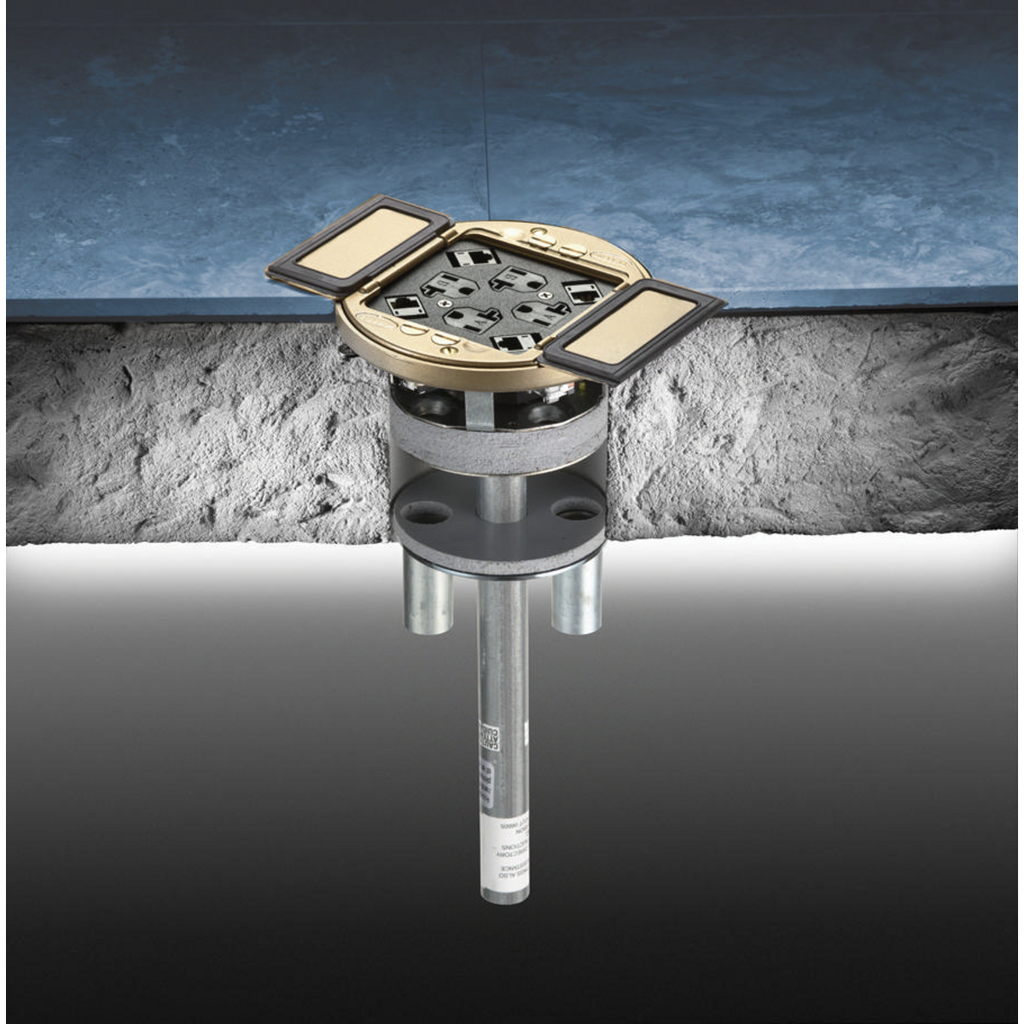

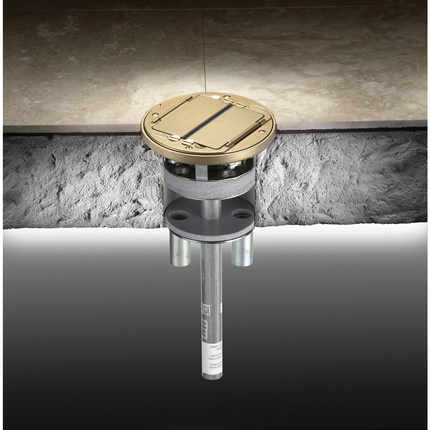

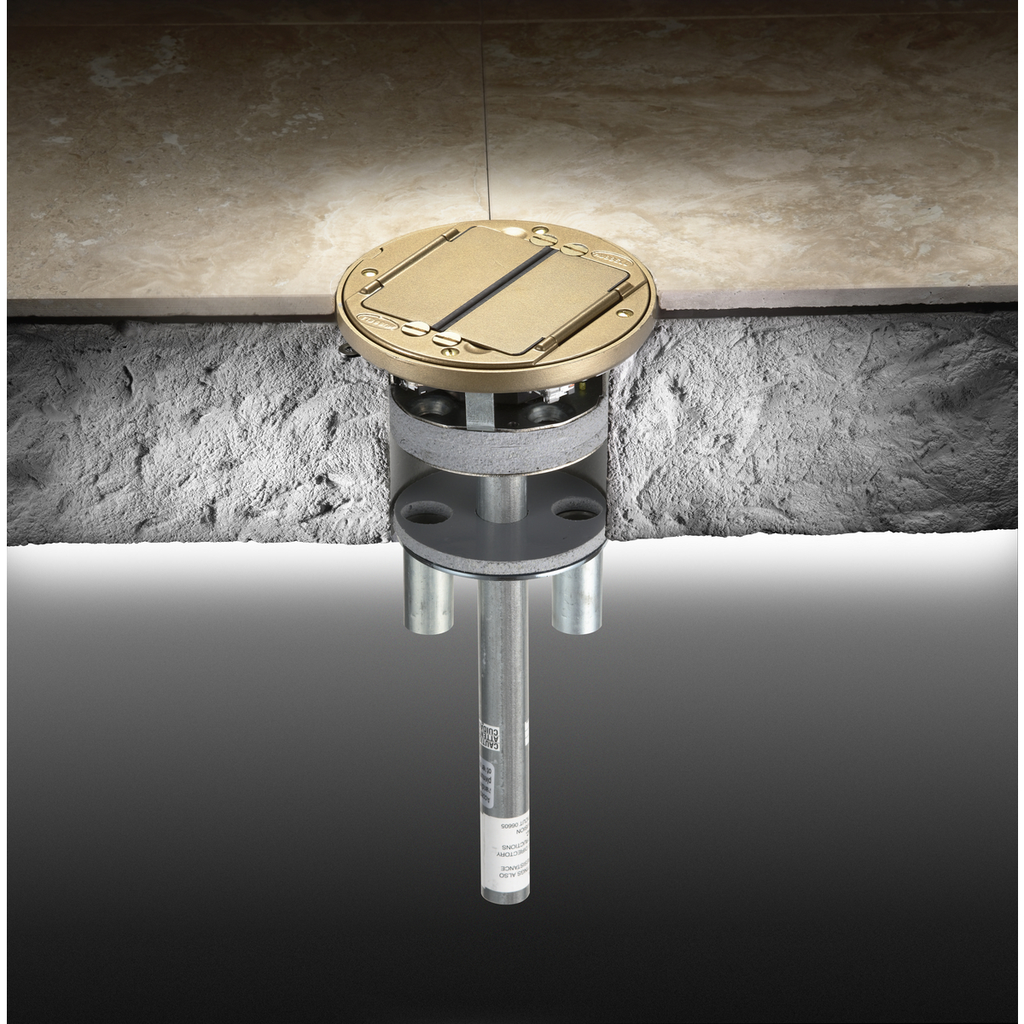

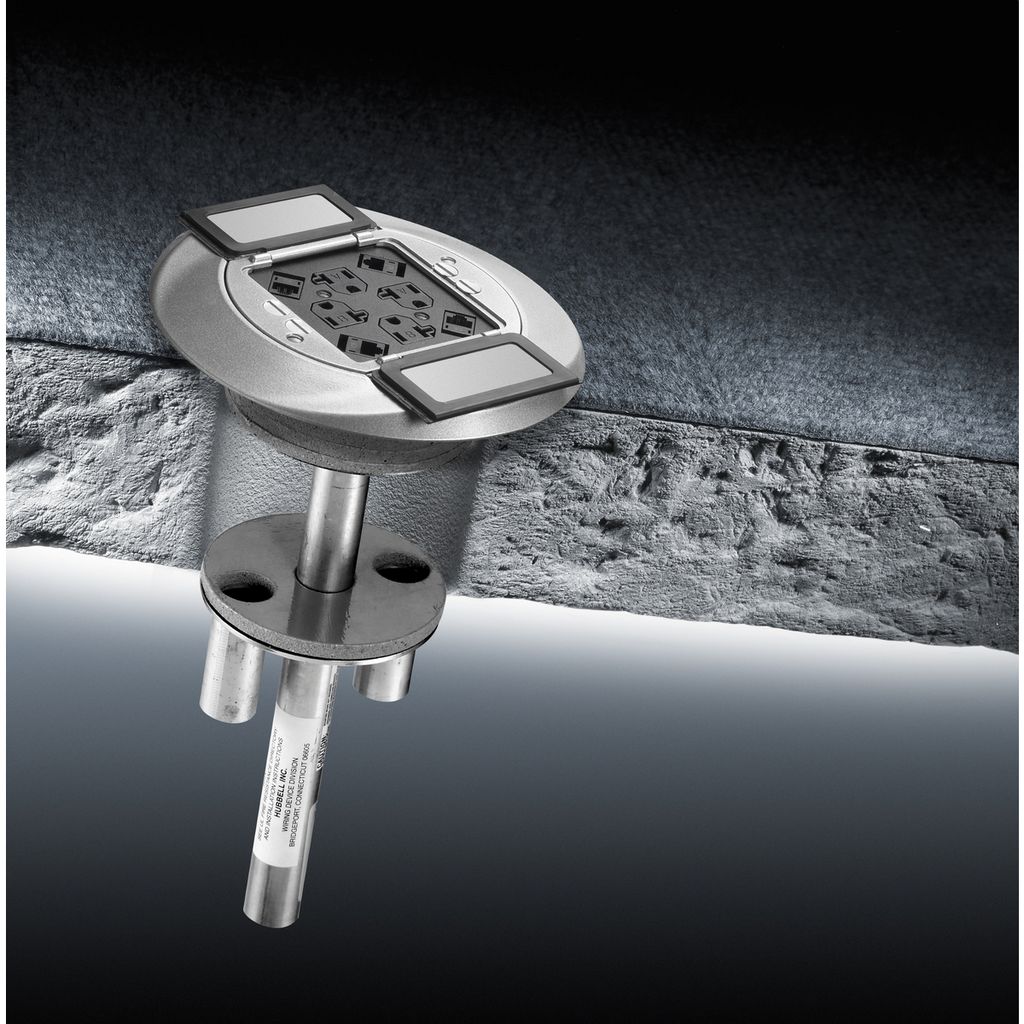

The SystemOne Fire-Rated Poke-Through fitting by Hubbell Wiring Device-Kellems is designed for in-floor delivery systems, providing a reliable solution for electrical distributors and lighting solutions in commercial and retrofit applications. This 4-inch core through-floor fitting supports power and low voltage wiring through (1) 3/4" EMT for power and (2) 3/4" EMTs for low voltage, making it suitable for wire and cable management in concrete floors. It is fabricated from composite materials and is UL listed for fire resistance, ensuring safety and compliance in demanding installations.

Specifications

• Application: Through-Floor Fittings
• Material: Composite
• Mounting: 4" Core Hole in Concrete Floor
• Cable Entry: Through Cover
• Number of Outlet: (4) 20A, 125V Receptacles, (4) Hubbell Keystone Openings
• Width: 9.1 in
• Product Weight: 8.9270 lbs
• Fire Resistance Rating: 4 Hours (D900)
• Construction: Fabricated
• Knockouts: None
• Country of Origin: United States
• Made in USA: Yes
• Manufacturer: Hubbell Wiring Device-Kellems
• Manufacturer Part #: S1PT4X4FIT
• UPC: 783585371399

Features

• Fire-rated poke-through fitting for safe in-floor power delivery
• Supports power, voice, data, and multimedia wiring
• Designed for retrofit and new construction applications
• Composite construction for durability and compliance
• Mounts in 4-inch cored concrete floors
