SystemOne, Fire-Rated Poke-Through, 4" Fitting Only, (1) 1" EMT for Power, (1) 1" EMT for Low Voltage, with Junction Box
SKU: #151852
Part: #S1PTFITJ
UPC: 783585373010
SystemOne, Fire-Rated Poke-Through, 4" Fitting Only, (1) 1" EMT for Power, (1) 1" EMT for Low Voltage, with Junction Box
SKU: #151852
Part: #S1PTFITJ
UPC: 783585373010
Description

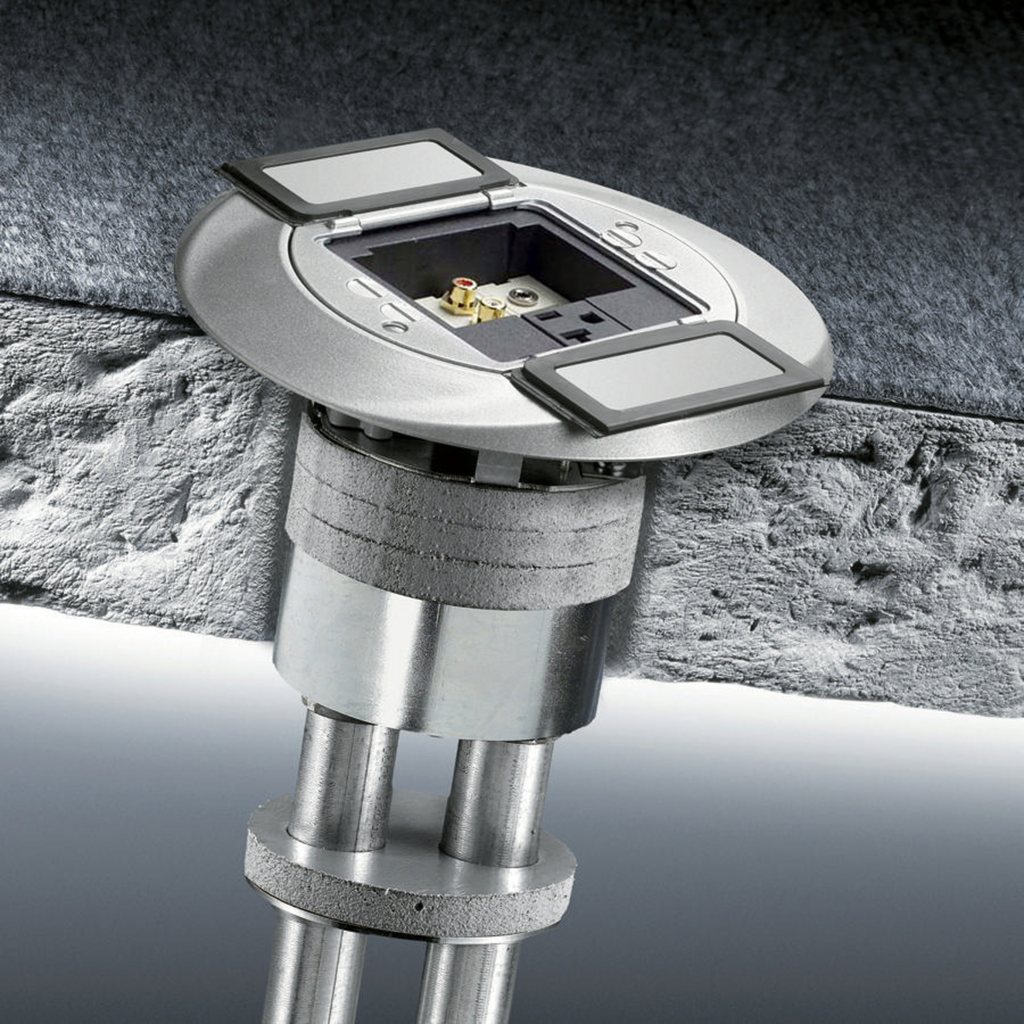

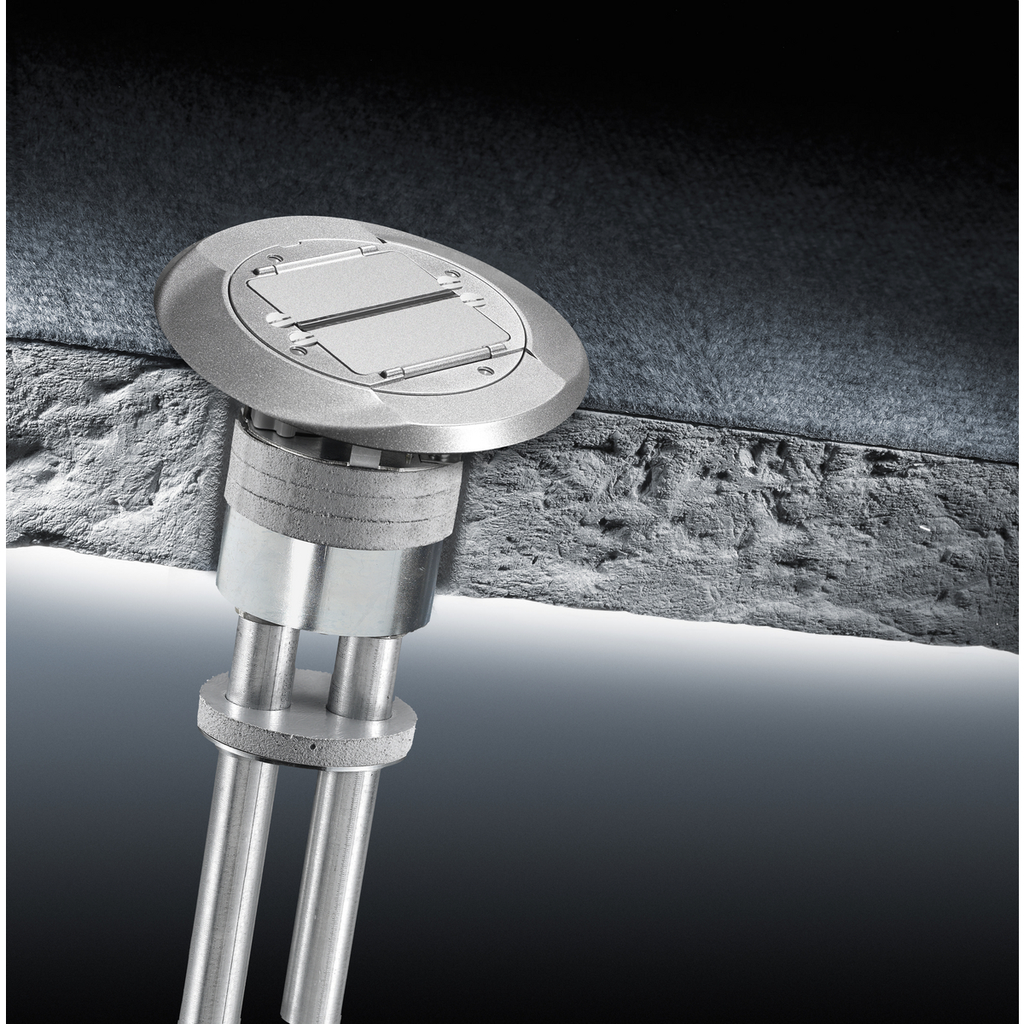

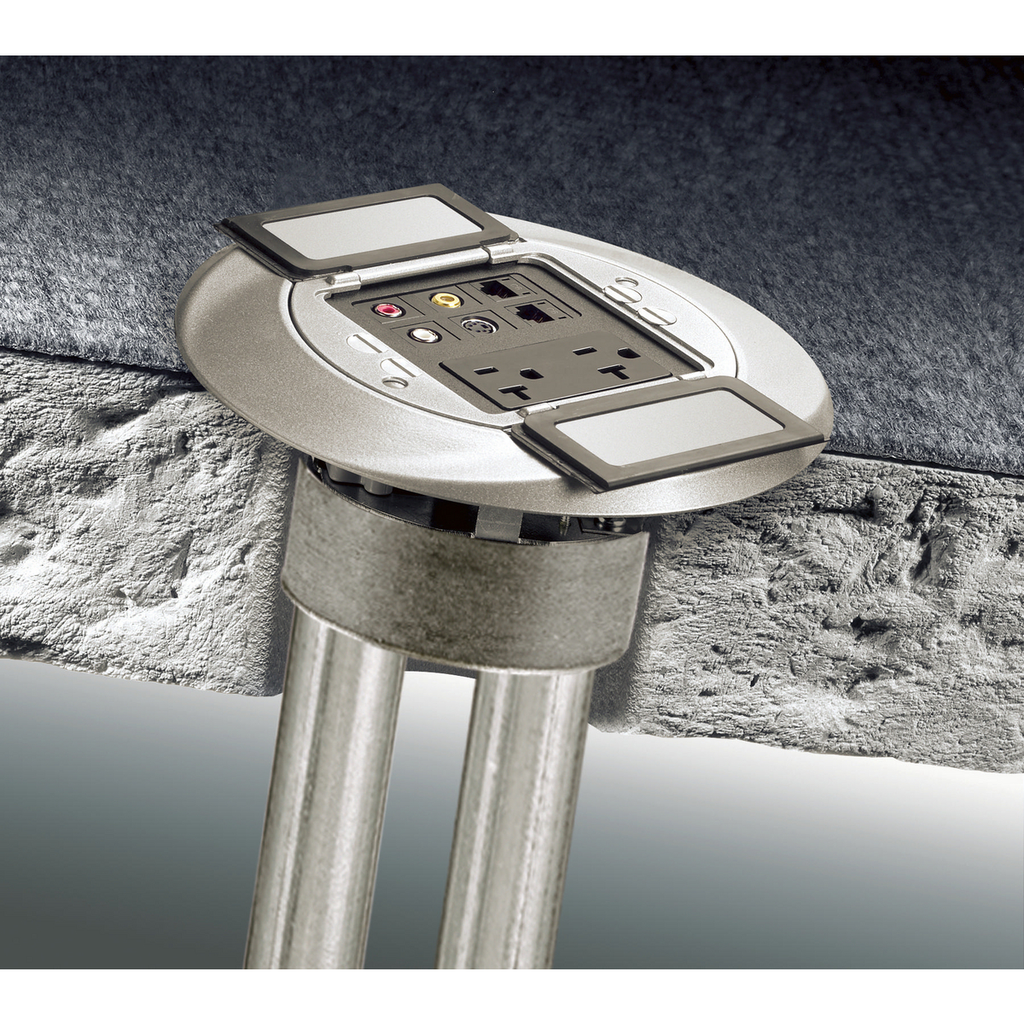

SystemOne Fire-Rated Poke-Through 4" Fitting – Through-Floor Fittings
The SystemOne Fire-Rated Poke-Through 4" Fitting is designed for in-floor delivery systems, providing a fire-rated solution for electrical and low voltage conduit penetration through concrete floors. This fabricated composite fitting accommodates one 1" EMT conduit for power and one 1" EMT conduit for low voltage, integrated with a junction box for secure wiring connections. It is suitable for installation in 4" core holes in concrete floors, meeting fire resistance requirements for reinforced concrete slabs and steel form unit floors with concrete topping. Ideal for electrical distributors and switchgear suppliers requiring reliable through-floor fittings for power and communication wiring.
Specifications
- Application: Through-Floor Fittings
- Material: Composite
- Mounting: 4" Core Hole in Concrete Floor
- Cable Entry: Through Cover
- Knockouts in Junction Box: Top: (1) 1", Bottom: (1) 3/4", Sides: (2) 1/2" and (1) 3/4"
- Width: 9.4 in
- Product Weight: 12.965 lbs
- Number of Outlets: No Devices
- Made in USA: Yes
- Country of Origin: United States
- Construction: Fabricated
- Manufacturer Part #: S1PTFITJ
- UPC: 783585373010
Features
- Fire-rated poke-through fitting suitable for 1 to 4 hour rated concrete floors
- Includes junction box for power and low voltage conduit connections
- Designed for use with 1" EMT conduit for both power and low voltage wiring
- Composite construction ensures durability and compliance with fire resistance standards
- Pre-fabricated assembly for straightforward installation in concrete floors
- Compatible with SystemOne in-floor delivery systems
- Provides secure cable entry through cover for wiring protection
