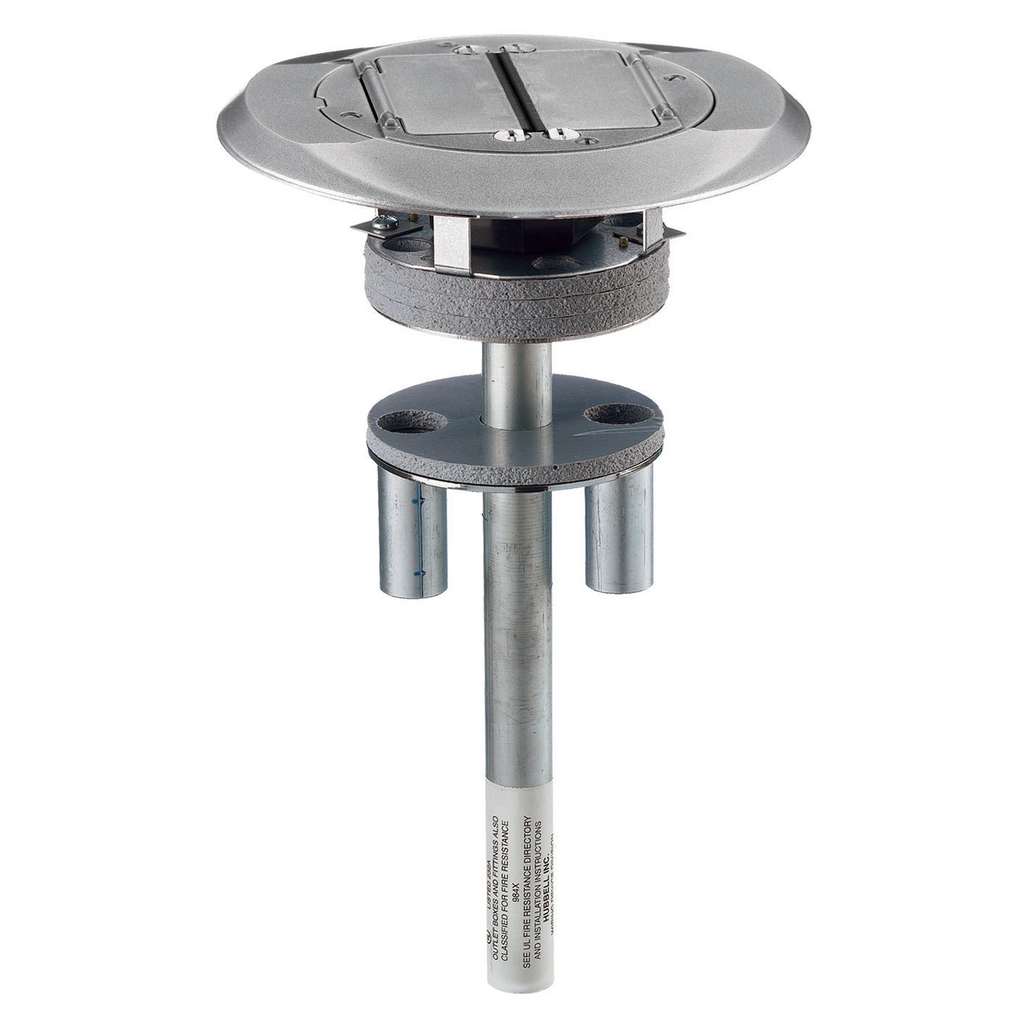

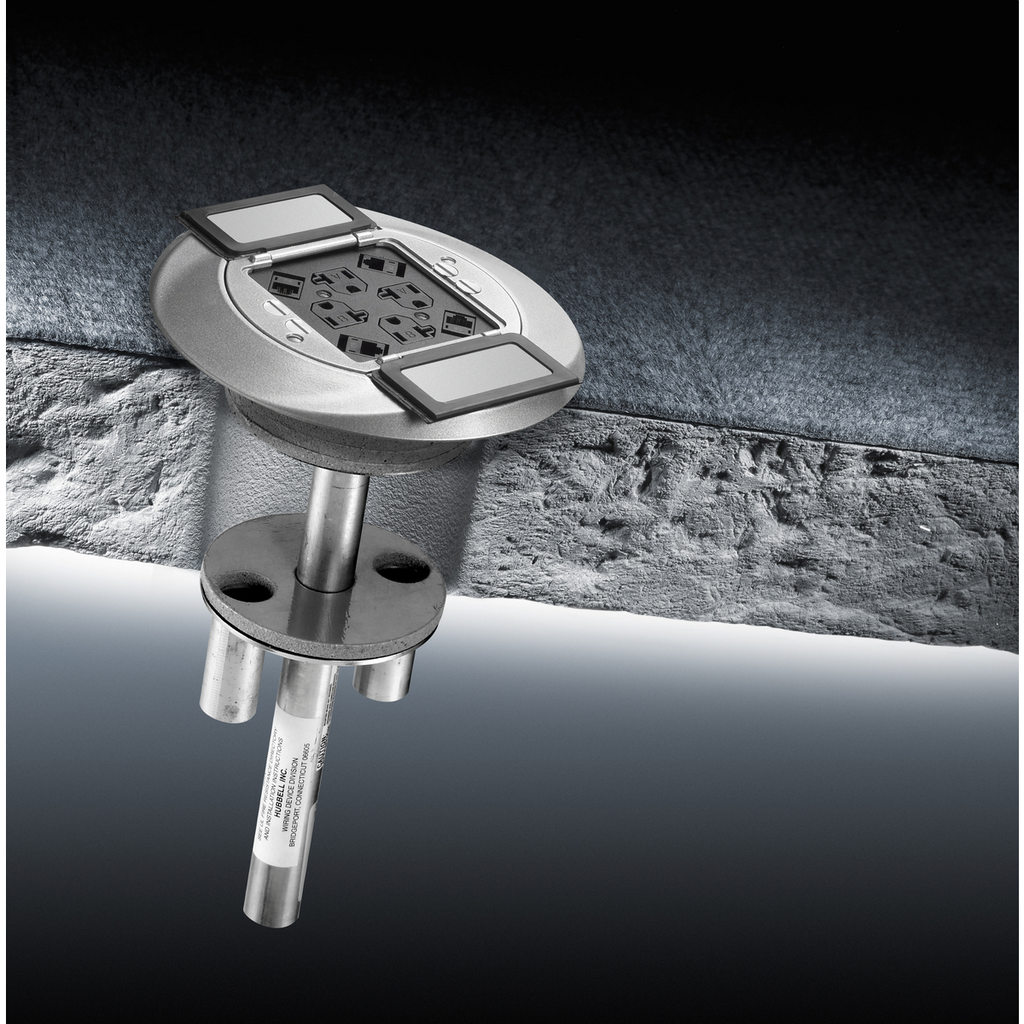

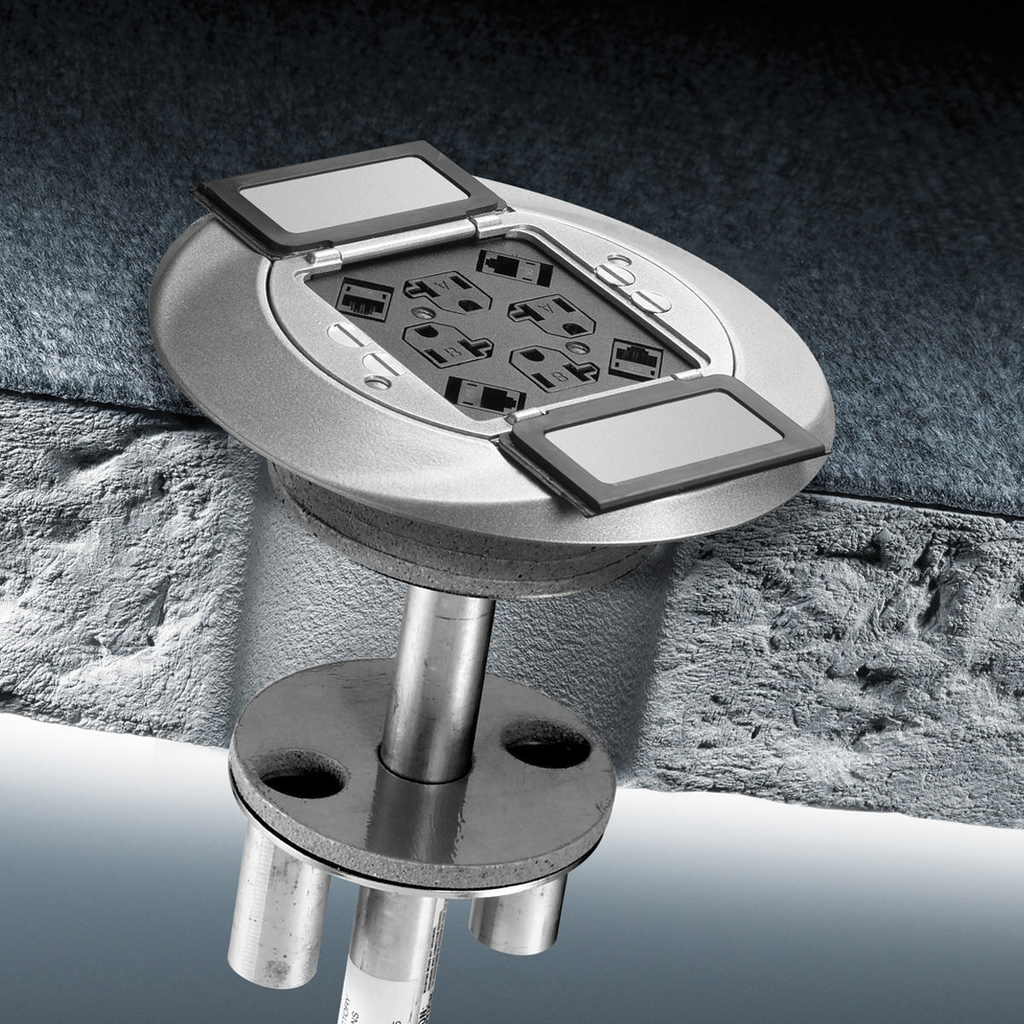

SystemOne Fire-Rated Poke-Through with 20A Receptacles and Keystone Openings

The SystemOne Fire-Rated Poke-Through is a one-piece electrical delivery unit designed for in-floor installation in concrete floors via a 4-inch core hole. It provides a reliable power and communication access solution suitable for electrical distributors and lighting solutions providers, especially those specializing in wire and cable or switchgear supply. This unit features four 20A, 125V receptacles and four Hubbell Keystone openings, making it adaptable for various low-voltage and communication applications. The aluminum finish and composite construction ensure durability and compliance with fire-rating standards for enhanced safety in commercial and institutional environments.

Specifications

• Application: Complete Units
• Number of Outlets: (4) 20A, 125V Receptacles, (4) Hubbell Keystone Openings
• Material: Composite
• Finish: Aluminum
• Color: Aluminum
• Mounting: 4" Core Hole in Concrete Floor
• Cable Entry: Cable Access Door
• Knockouts: Cover - Dual Flip Covers
• Product Weight: 5.0000 lbs
• Width: 9.1 in
• Country of Origin: United States
• Made in USA: Yes
• Construction: Fabricated
• Manufacturer Part #: S1PT4X4AL

Features

• Fire-rated design with 4-hour fire classification for enhanced safety
• One-piece unit simplifies installation and reduces labor time
• Aluminum finish provides corrosion resistance and aesthetic appeal
• Dual flip covers protect outlets and keystone openings when not in use
• Keystone openings accept Hubbell modular jacks and multimedia connectors for flexible communication solutions
• Isolated ground capability for receptacles to support sensitive equipment
• Cable access door enables organized and secure cable entry
• Manufactured in the USA ensuring quality and compliance with industry standards

Downloads & Links

• Catalog Page Asset Reference 2
• Catalog Page Asset Reference 1
• Catalog Full Asset Reference 1
• Catalog Full Asset Reference 2
• Spec Sheet
