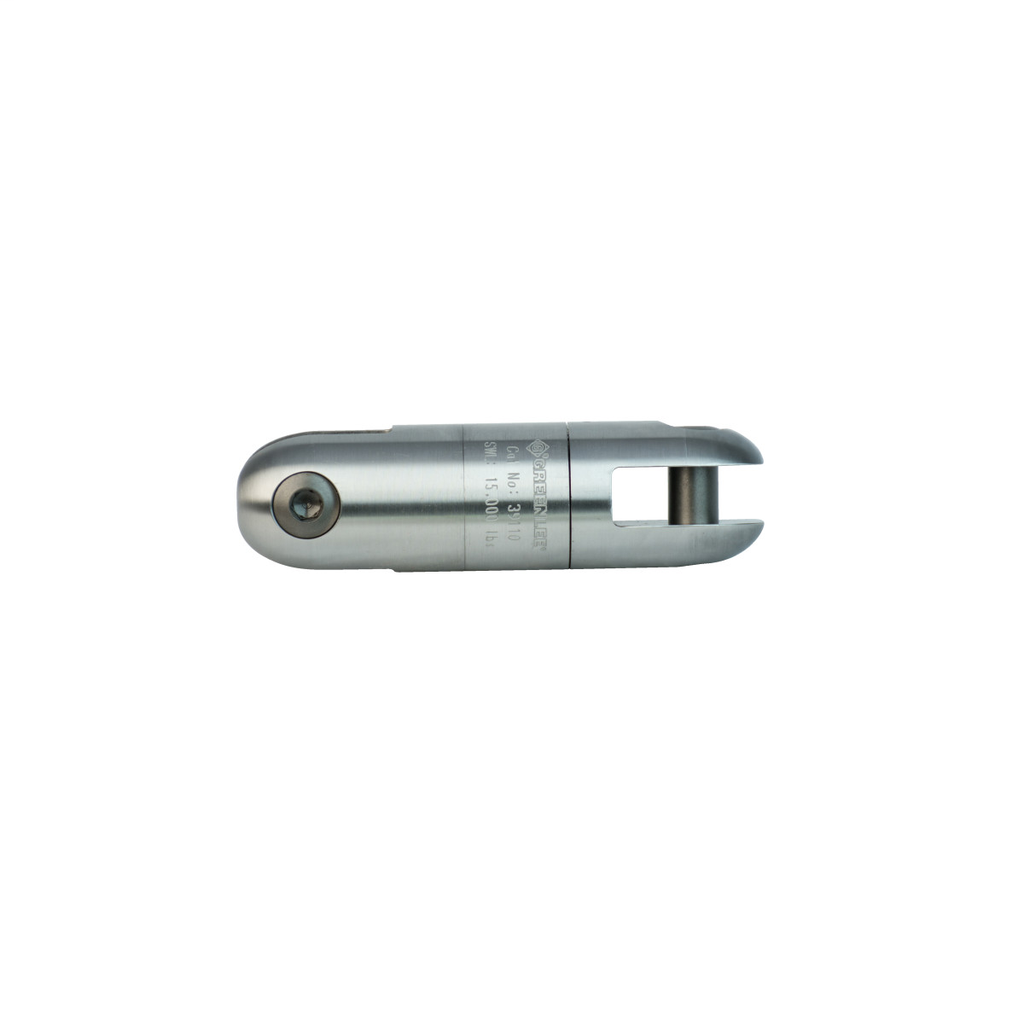

SWIVEL-15,000 LBS – Cable Pulling Swivel Connector

The SWIVEL-15,000 LBS by Greenlee is a heavy-duty cable pulling swivel designed to connect pull ropes to utility products in overhead and underground applications. It facilitates smooth rotation of the pull rope, preventing twisting and tangling during cable installation. This swivel is ideal for electrical distributors, lighting solutions providers, wire and cable installers, and switchgear suppliers requiring reliable, high-capacity pulling hardware.

Specifications

• Maximum Rated Capacity: 15,000 lbs (67 kN)
• Safe Working Limit (Underground): 9,000 lbs (40 kN) with 3:1 safety factor
• Safe Working Limit (Overhead): 3,000 lbs (13 kN) with 5:1 safety factor
• Dimensions: Length 8.25 in (210 mm), Width 2.65 in (67 mm), Height 2.15 in (55 mm)
• Clevis Pin Diameter: 11/16 in (17.5 mm)
• Material: Stainless steel body construction
• Weight: Approximately 3.91 lbs (1.7 kg)
• Country of Origin: Canada
• Manufacturer Part Number: 50391100

Features

• All stainless steel construction ensures durability and corrosion resistance
• Efficient thrust and roller bearing design allows smooth rotation under full load
• Shoulder bolt style clevis pins distribute load evenly, reducing thread stress
• Designed to eliminate rope and cable winding and tangling during pulls
• Not suitable for directional drilling or lifting applications
• Meets safety requirements with clear load capacity ratings for overhead and underground use
• Replacement clevis pins available to maintain rated strength and performance

Downloads and Links

• Greenlee Swivel Instruction Manual (IM 1192)
