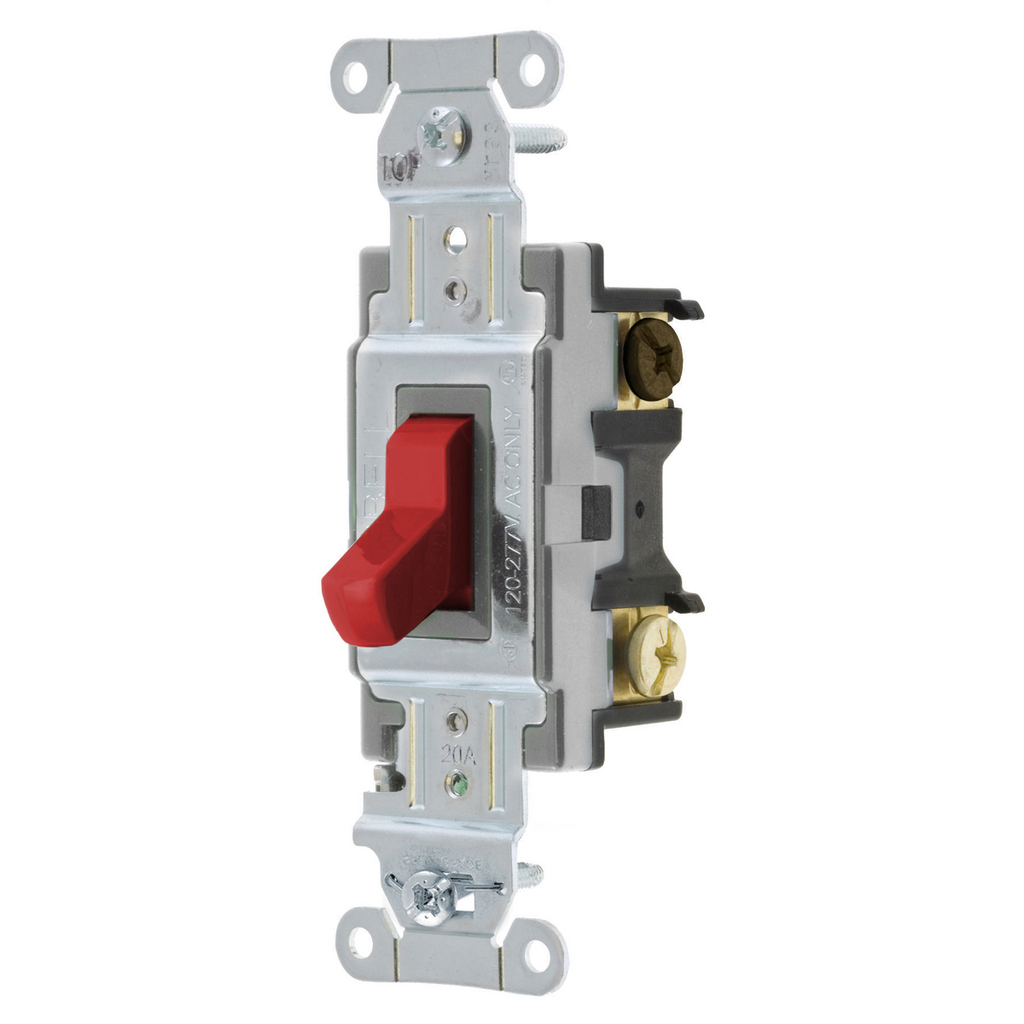

Switches and Lighting Controls, Toggle Switch, Commercial Grade, Three Way, 20A 120/277V AC, Red

This commercial specification grade toggle switch is designed for electrical distributors and lighting solutions providers requiring reliable three-way switching. It supports 20 amperes at 120/277 volts AC and features both back and side wiring options for versatile installation in commercial environments. Ideal for indoor dry locations unless additional protection is applied, this switch is suitable for wire and cable systems and is compatible with standard switchgear configurations.

Specifications

• Application: Commercial Spec Grade
• Current: 20 amperes
• Amperage Rating: 20 A
• Voltage Rating: 120/277V AC
• Action: SPDT (Single Pole Double Throw)
• Number of Poles: Single Pole
• Contact Configuration: Two Position
• Connection: Back and Side Wired
• Material: Nylon toggle, thermoplastic base and top
• Mounting: Screw Mount
• Operating Cycles: 50,000 Cycles
• Environmental Conditions: Indoor Dry unless protected by additional means
• Contact Rating: Per UL 20
• Width: 3.6 in
• Dielectric Voltage Withstand: 1500V AC minimum for 1 minute
• Overload Capacity: Minimum 4.8 times rated current for 100 cycles
• Temperature Rise: 30°C maximum at rated current
• Terminal Accommodation: #14 AWG min. to #10 AWG max., solid and stranded copper wire only
• Flammability Rating: UL 94V-2
• Operating Temperature Range: -40°C to 75°C continuous
• Country of Origin: China
• Manufacturer: Hubbell Wiring Device-Kellems
• Manufacturer Part Number: CSB320R

Features

• Thread cleaning captive mounting screw for secure installation
• Abuse resistant nylon toggle for durability
• Steel, zinc plated mounting bridge provides corrosion resistance
• Auto grounding mounting bridge and brass ground screw for safety
