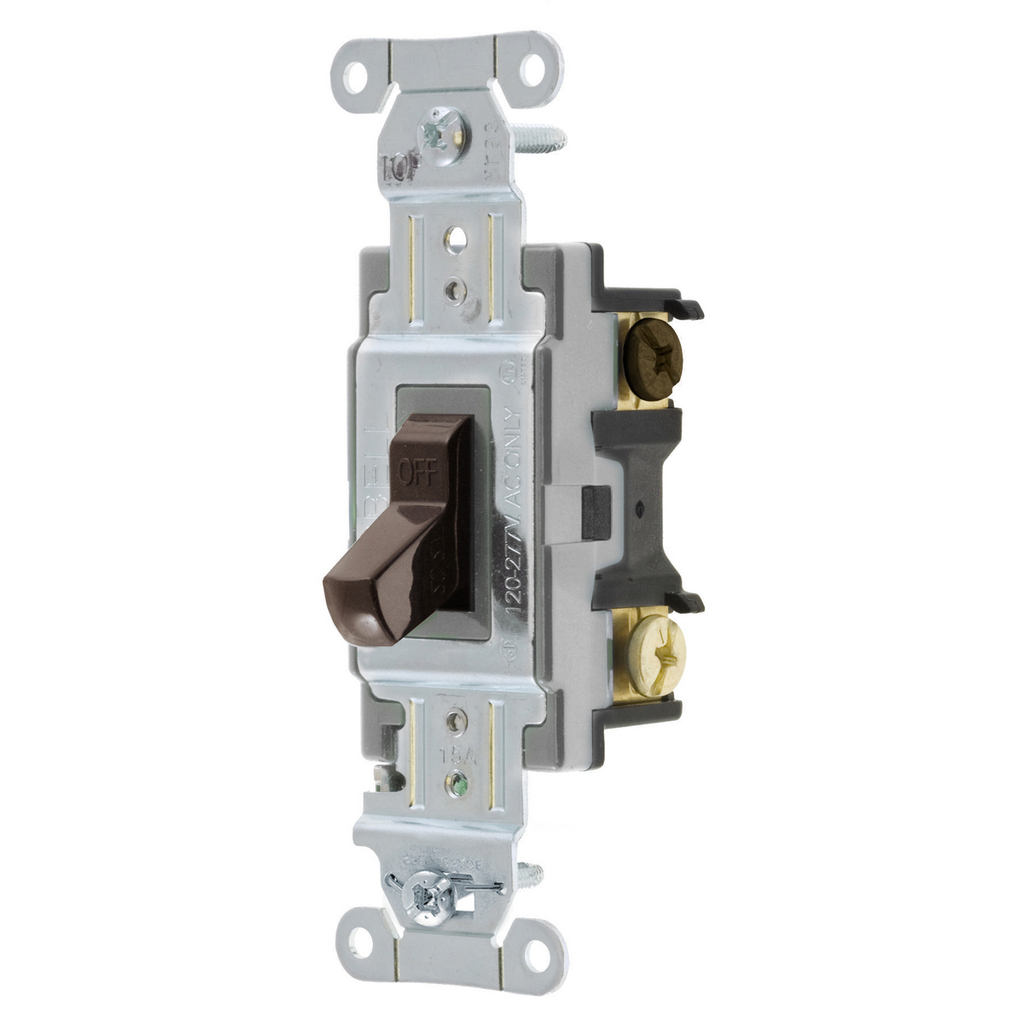

Switches and Lighting Controls, Toggle Switch, Commercial Grade, Three Way, 15A 120/277V AC, Side Wired, Brown Toggle

This toggle switch is a commercial specification grade electrical component designed for lighting control and switching applications. Suitable for use by electrical distributors and lighting solutions providers, it operates at 15 amperes with a voltage rating of 120/277V AC. The device features side wired connections and a three-way configuration, making it compatible with a variety of wire and cable installations in indoor dry environments. Manufactured by Hubbell Wiring Device-Kellems, this switch is engineered for durability and reliability in commercial electrical systems.

Specifications

• Application: Commercial Spec Grade
• Current: 15 amperes
• Amperage Rating: 15 A
• Voltage Rating: 120/277V AC
• Action: SPDT (Single Pole Double Throw)
• Number of Poles: Single Pole
• Contact Configuration: Two Position
• Connection: Side Wired Only
• Mounting: Screw Mount
• Material: Nylon
• Color: Brown
• Width: 1.9 in
• Operating Cycles: 50,000 Cycles
• Contact Rating: Per UL 20
• Environmental Conditions: Indoor Dry unless protected by additional means
• Country of Origin: China
• Manufacturer Part #: CS315
• Product Weight: 0.1500 lbs

Features

• Commercial grade toggle switch suitable for three-way lighting control circuits
• Side wired terminals for secure and efficient wiring installation
• Durable nylon toggle providing reliable mechanical action
• Designed for indoor dry environments with screw mount installation
• UL 20 contact rating ensuring compliance with safety standards
• Long operational life rated for 50,000 cycles
