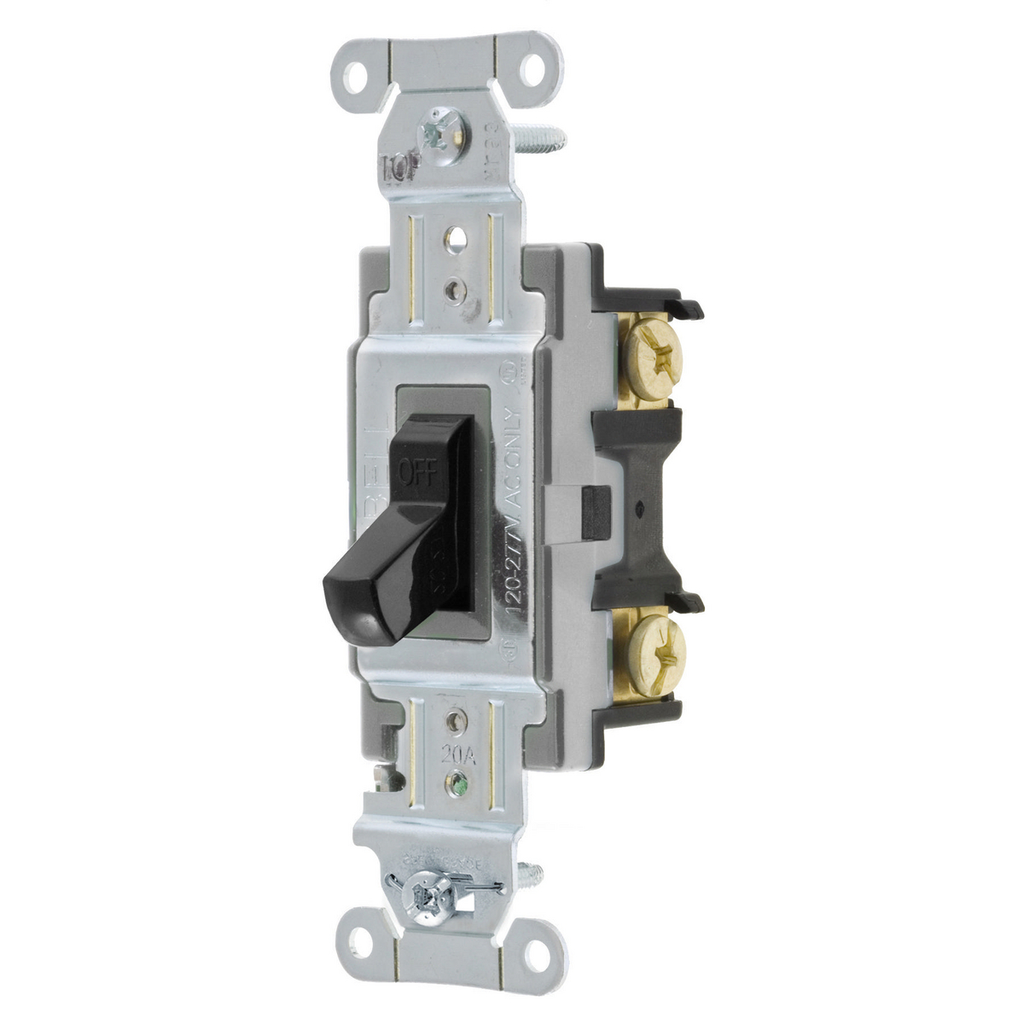

Switches and Lighting Controls, Toggle Switch, Commercial Grade, Single Pole, 20A 120/277V AC

This commercial specification grade toggle switch is designed for reliable electrical distribution and lighting control applications in indoor dry environments. It is suitable for use by electrical distributors and switchgear suppliers requiring durable, high-performance wire and cable switching components. The switch supports side wiring and is rated for 20 amperes at 120/277 volts AC, providing a robust solution for commercial lighting and electrical control systems.

Specifications

• Manufacturer: Hubbell Wiring Device-Kellems
• Manufacturer Part #: CS120BK
• Application: Commercial Spec Grade
• Current Rating: 20 amperes
• Voltage Rating: 120/277V AC
• Number of Poles: Single Pole
• Contact Configuration: Two Position
• Connection: Side Wired Only
• Action: Positive Snap
• Material: Nylon Toggle, Thermoplastic Base and Top
• Mounting: Screw Mount
• Operating Cycles: 50,000 Cycles
• Contact Rating: Per UL 20
• Product Weight: 0.1500 lbs
• Width: 1.900 in
• Environmental Conditions: Indoor Dry unless protected by additional means
• Country of Origin: China

Features

• Thread cleaning captive mounting screw for secure installation
• Abuse resistant nylon toggle for enhanced durability
• Steel, zinc plated mounting bridge provides corrosion resistance
• Side wired connection for ease of wiring
• UL Listed and CSA Certified to meet safety standards
• Flammability rating UL 94V-2
• Operating temperature range from -40°C to 75°C continuous
