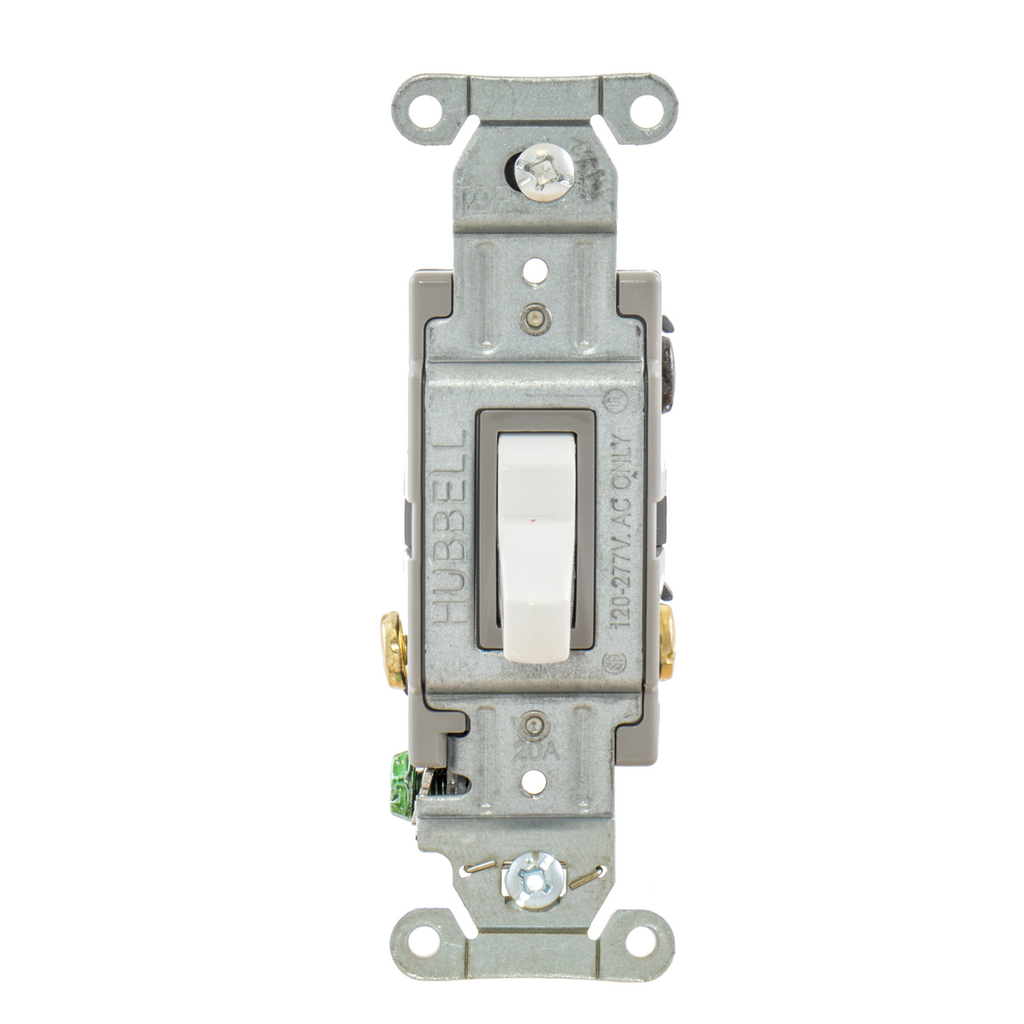

Switches and Lighting Controls, Toggle Switch, Commercial Grade, Four Way, 20A 120/277V AC, Back and Side Wired, White Toggle

This commercial specification grade four-way toggle switch is designed for electrical distributors and lighting solutions requiring reliable wire and cable switching capabilities. It supports 20 amperes at 120 to 277 volts AC and is suitable for indoor dry environments unless additional protection is applied. The switch is back and side wired, allowing flexible installation options, and is built with durable nylon toggle material for abuse resistance.

Specifications

• Application: Commercial Spec Grade
• Current: 20 amperes
• Amperage Rating: 20 A
• Voltage Rating: 120/277V AC
• Action: DPDT (Double Pole Double Throw)
• Number of Poles: Double Pole
• Contact Configuration: Two Position

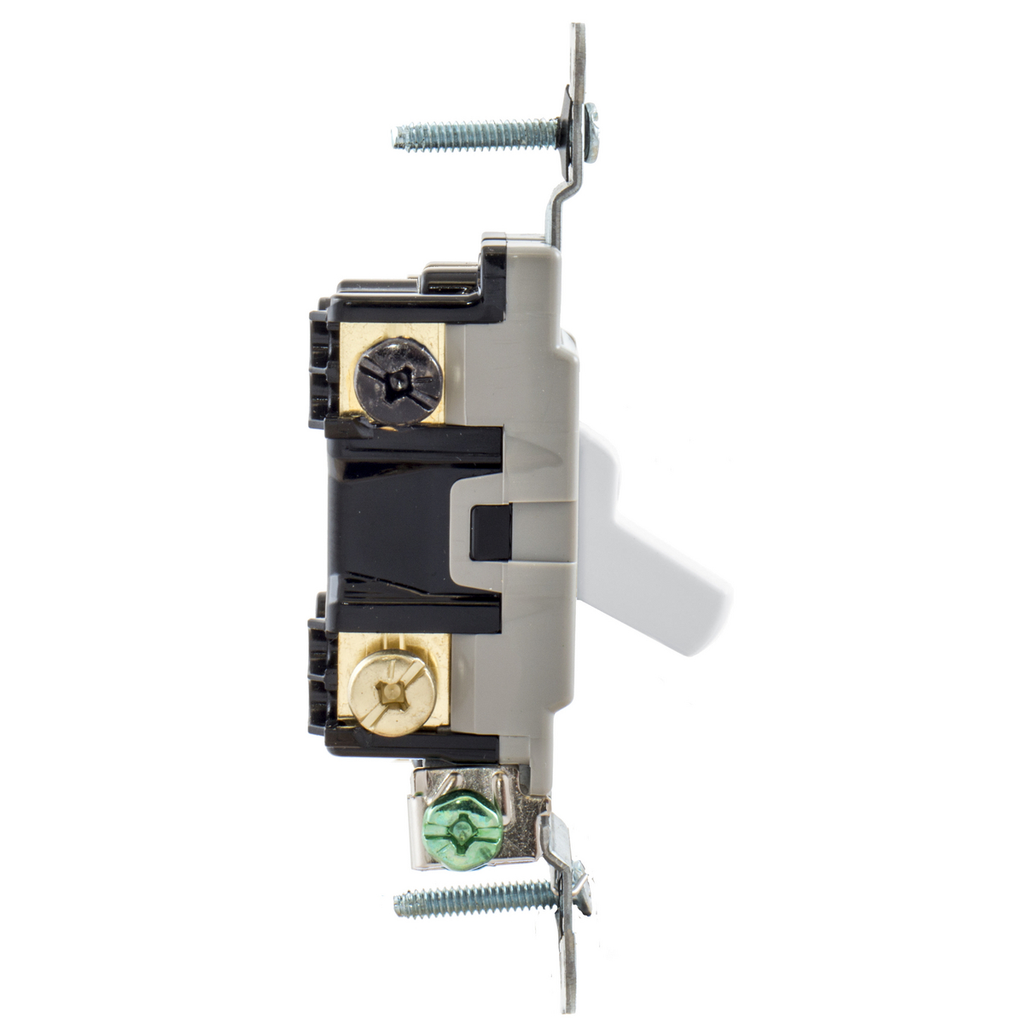

• Connection: Back and Side Wired
• Material: Nylon
• Mounting: Screw Mount
• Width: 1.900 in
• Operating Cycles: 50,000 Cycles
• Environmental Conditions: Indoor Dry unless protected by additional means
• Contact Rating: Per UL 20
• Product Weight: 0.1500 lb
• Country of Origin: China
• Manufacturer: Hubbell Wiring Device-Kellems
• Manufacturer Part #: CSB420W
• Color: White

Features

• Thread cleaning captive mounting screw for secure installation
• Abuse resistant nylon toggle for durability
• Steel, zinc plated mounting bridge provides corrosion resistance

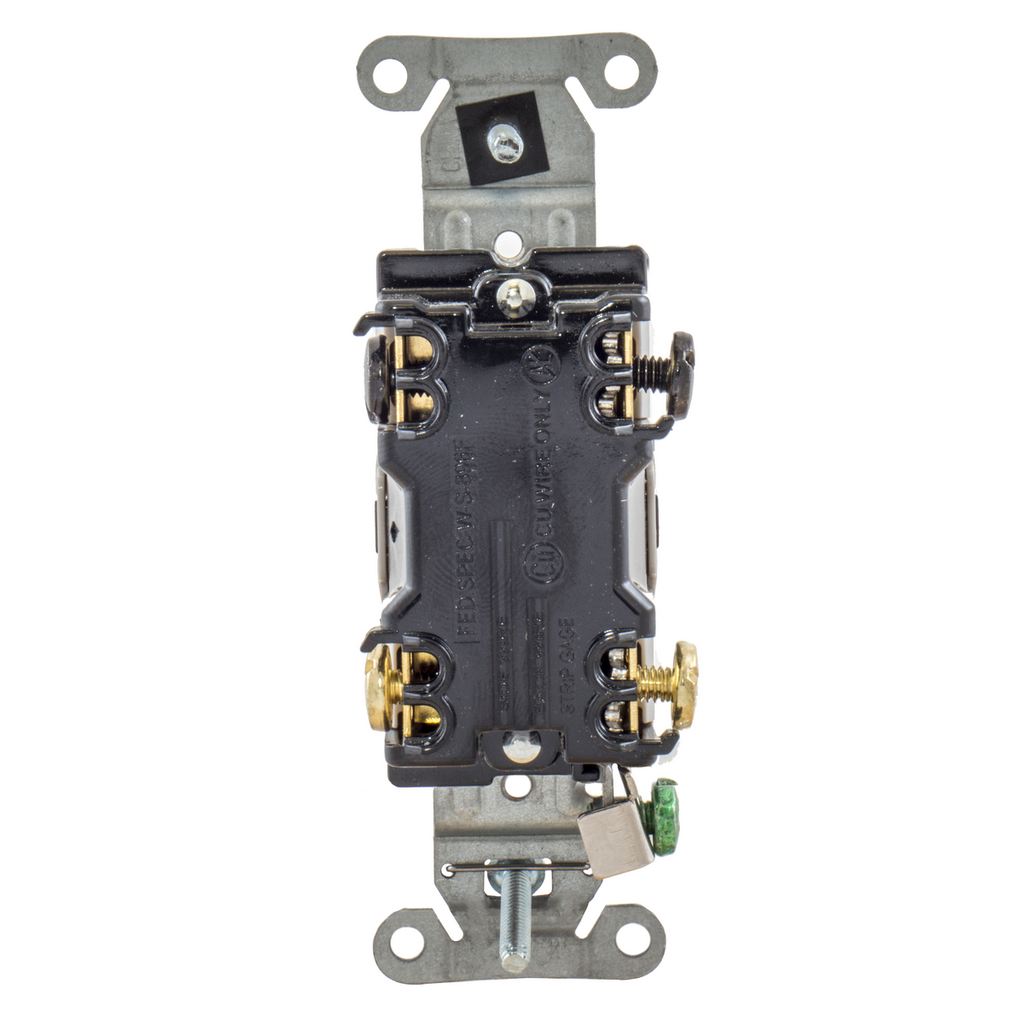

• Back and side wired connections for versatile wiring options
• UL Listed and CSA Certified for safety compliance
• Designed for 20A continuous current with a dielectric voltage withstand of 1500V AC minimum for 1 minute
• Supports #14 AWG to #10 AWG solid and stranded copper wire
• Temperature rise limited to 30°C at rated current
• Flammability rating UL 94V-2
