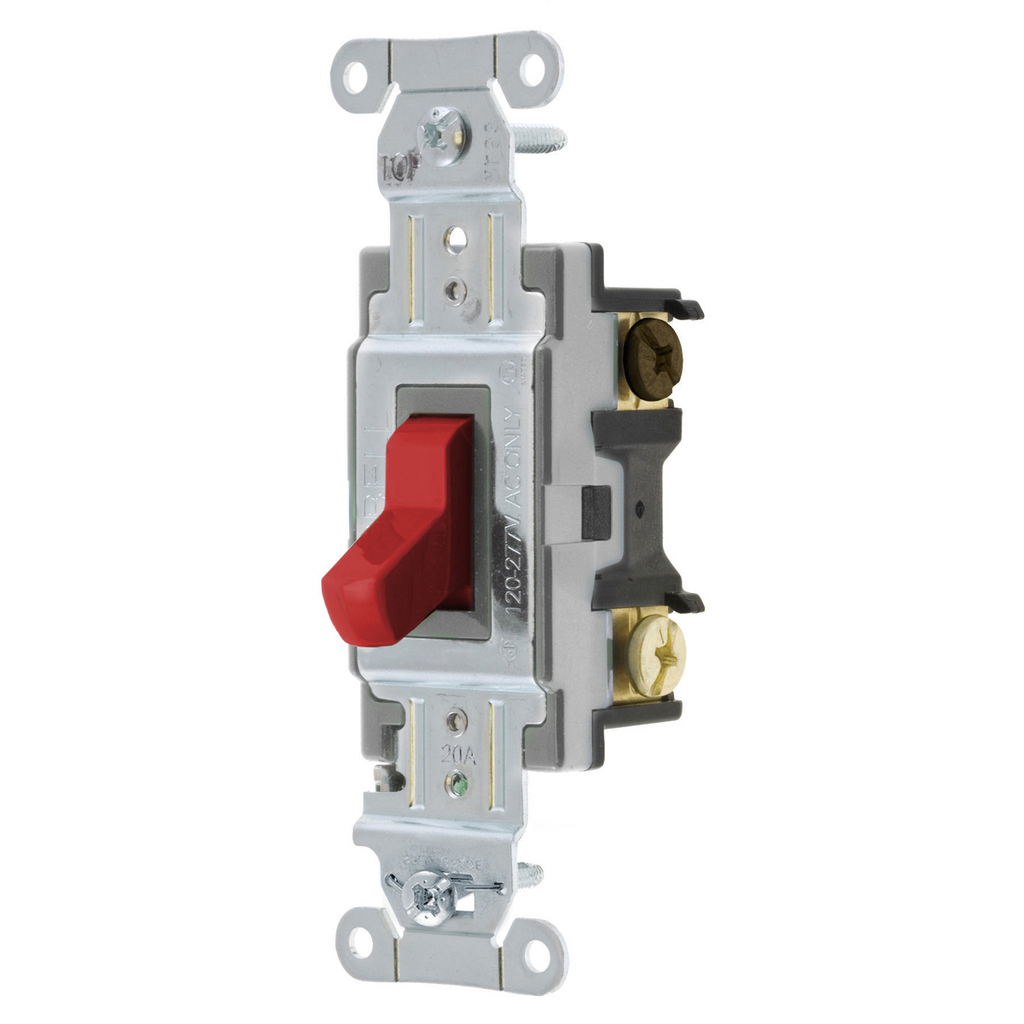

Switches and Lighting Controls, Toggle Switch, Commercial Grade, Four Way, 20A 120/277V AC, Back and Side Wired, Red Toggle
SKU: #139862
Part: #CSB420R
UPC: 783585154343
Switches and Lighting Controls, Toggle Switch, Commercial Grade, Four Way, 20A 120/277V AC, Back and Side Wired, Red Toggle
SKU: #139862
Part: #CSB420R
UPC: 783585154343
Description
Switches and Lighting Controls Toggle Switch - Commercial Grade Four Way 20A 120/277V AC
This commercial specification grade toggle switch is designed for electrical distributors and lighting solutions providers requiring reliable four-way switching capabilities. Suitable for indoor dry environments, it supports 20 amperes at 120/277V AC and features back and side wiring for flexible installation. Ideal for wire and cable applications in commercial buildings, this switch meets industry standards for durability and performance.
Specifications
- Application: Commercial Spec Grade
- Current: 20 amperes
- Amperage Rating: 20 A
- Voltage: 120/277V AC
- Action: DPDT (Double Pole Double Throw)
- Number of Poles: Double Pole
- Contact Configuration: Two Position
- Connection: Back and Side Wired
- Material: Nylon toggle, Thermoplastic (Gray top, Black base)
- Mounting: Screw Mount
- Width: 1.910 in
- Contact Rating: Per UL 20
- Operating Cycles: 50,000 Cycles
- Environmental Conditions: Indoor Dry unless protected by additional means
- Dielectric Voltage Withstand: 1500V AC minimum for 1 minute
- Overload Capacity: Minimum 4.8 times rated current for 100 cycles
- Temperature Rise: 30°C maximum at rated current
- Terminal Accommodations: #14 AWG min. to #10 AWG max. solid and stranded copper wire only
- Flammability Rating: UL 94V-2
- Operating Temperature: Max continuous 75°C; Min continuous -40°C without impact
- Country of Origin: China
- Manufacturer: Hubbell Wiring Device-Kellems
- Manufacturer Part Number: CSB420R
Features
- Thread cleaning captive mounting screw for secure installation
- Abuse resistant nylon toggle for durability
- Steel, zinc plated bridge is corrosion resistant
- Auto grounding mounting bridge enhances safety
- Back and side wired connections allow flexible wiring options
