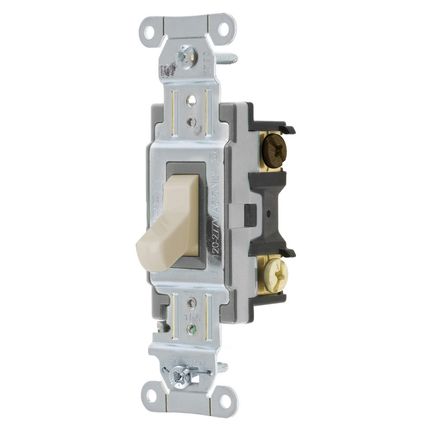

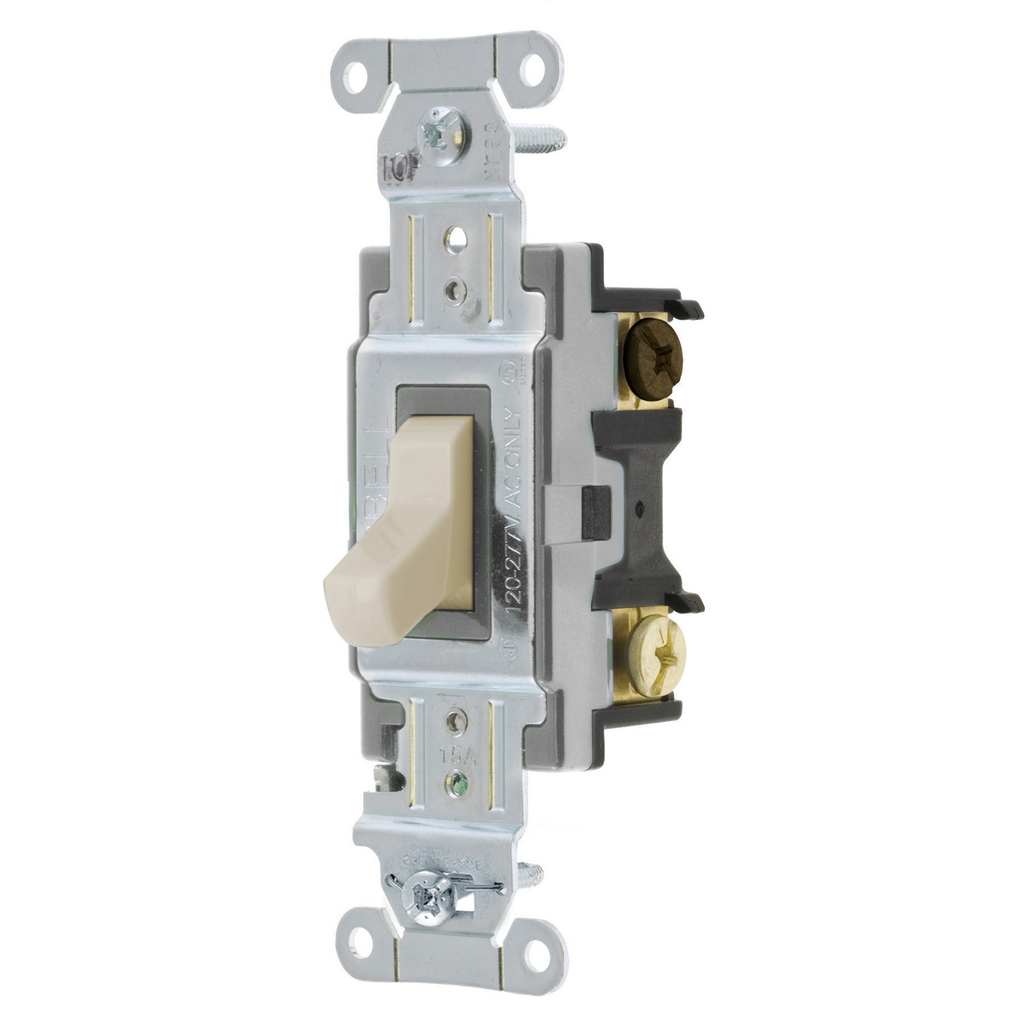

Switches and Lighting Controls Toggle Switch – Commercial Grade Four Way

This commercial grade toggle switch is designed for electrical distributors and lighting solutions applications requiring a reliable four-way switch. Rated for 15 amperes at 120/277V AC, it supports back and side wired connections suitable for indoor dry environments. This switch is ideal for use in wire and cable installations and is compliant with UL standards, making it a dependable component for switchgear suppliers.

Specifications

• Application: Commercial Spec Grade
• Amperage Rating: 15 A
• Current: 15 amperes
• Voltage: 120/277V AC
• Action: DPDT (Double Pole Double Throw)
• Number of Poles: Double Pole
• Contact Configuration: Two Position
• Contact Rating: Per UL 20
• Operating Cycles: 50,000 Cycles
• Connection: Back and Side Wired
• Mounting: Screw Mount
• Material: Nylon
• Color: Almond
• Width: 1.910 in
• Environmental Conditions: Indoor Dry unless protected by additional means
• Enclosure: None
• Insulation: None
• Country of Origin: China
• Manufacturer: Hubbell Wiring Device-Kellems
• Manufacturer Part #: CSB415LA
• Product Weight: 0.1500 lbs

Features

• Commercial grade construction for durability in demanding environments
• Back and side wiring options for flexible installation
• DPDT action supports four-way switching applications
• UL 20 contact rating ensures compliance with safety standards
• Long operational life with 50,000 operating cycles
• Nylon toggle for robust mechanical performance
• Screw mounting for secure attachment
• Light almond color for aesthetic integration in commercial settings
