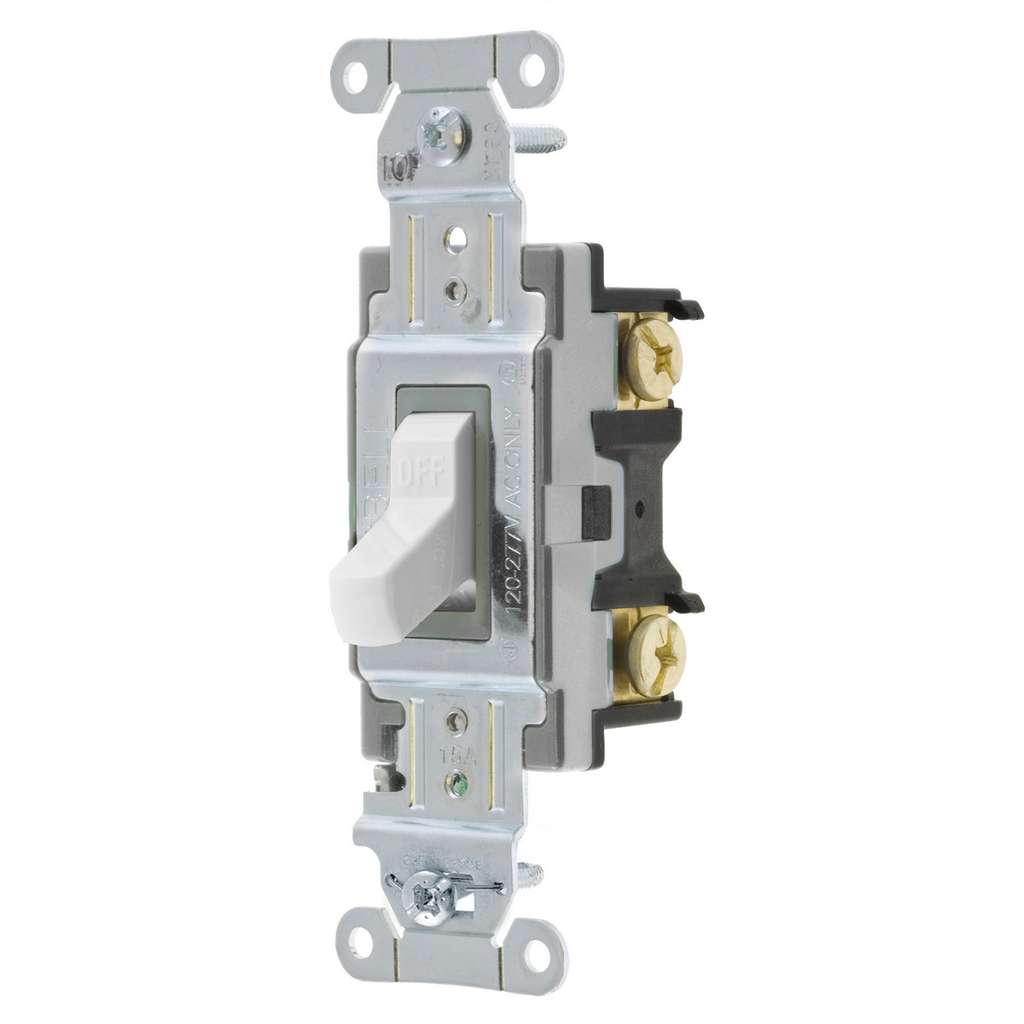

Features

• Thread cleaning captive mounting screw
• Abuse resistant nylon toggle
• Steel, zinc plated bridge is corrosion resistant

Specifications

• Country of Origin: China
• Current / Amperage Rating: 15 A
• Dimensions: 4.18 in x 1.49 in x 1.83 in
• Width: 1.900 in
• Each - Width: 1.900 in
• Height: 1.83 in
• Industry Standard(s): UL Listed
• Length: 4.18 in
• Performance: Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute;Electrical - Max. Continuous Current - 15A;Electrical - Max. Working Voltage - 277V AC;Electrical - Overload - Minimum 4.8 times rated current for 100 cycles;Electrical - Temperature Rise - 30°C maximum at rated current;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact;Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
• Temperature Rise - Max.: 30°C maximum at rated current
• Amperage Rating: 15 A
• Color: White
• Number of Poles: Double Pole
• Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
• Size: 4.18 in x 1.49 in x 1.83 in
• Standard: UL Listed
• Type: Toggle
• Voltage Rating: 120-277 VAC
• Connectivity: Back and Side Wired
• Dielectric Strength: Withstands 1500V AC minimum for 1 minute
• Number Of Poles: Double Pole
• Style: Double Pole
• Weight: 0.15 lb.
• Wire Size: #14 AWG to #10 AWG
• Class Code: A16
• Description - Invoice: SWITCH, COMM, DP, 15A 120/277V, B+S, WH
• Freight Class Code: 06168002
• Harmonization Code: 8536509040
• Image Actual Or Representative: A
• MSDS Flag: No
• Sub Class Code: A16A250
• Current Rating: 15 A
• Material: Nylon
• Series: General Purpose
• Base Unit of Measure: EA
• BOX SIZE: 3.700x9.900x4.500 (in)
• Carton - Gross Weight per Pack: 1.85 lb.
• Carton - Number of Sub Packs: 10
• Carton - Pack Description: Carton
• Carton - SCC-14 Next Lower Level Sub Pack: 783585153858
• Carton - Total Units: 10 EA
• Case - Total Units: 50 EA
• Case Weight: 10.300 lb.
• Each - Pack Description: Each
• Lowest Level UOM: Each
• Pallet Height: 46.800 in
• Pallet Length: 48.000 in
• Pallet Weight: 834.300 lb.
• Pallet Width: 40.000 in

Certifications

• EU RoHS Indicator: Yes
