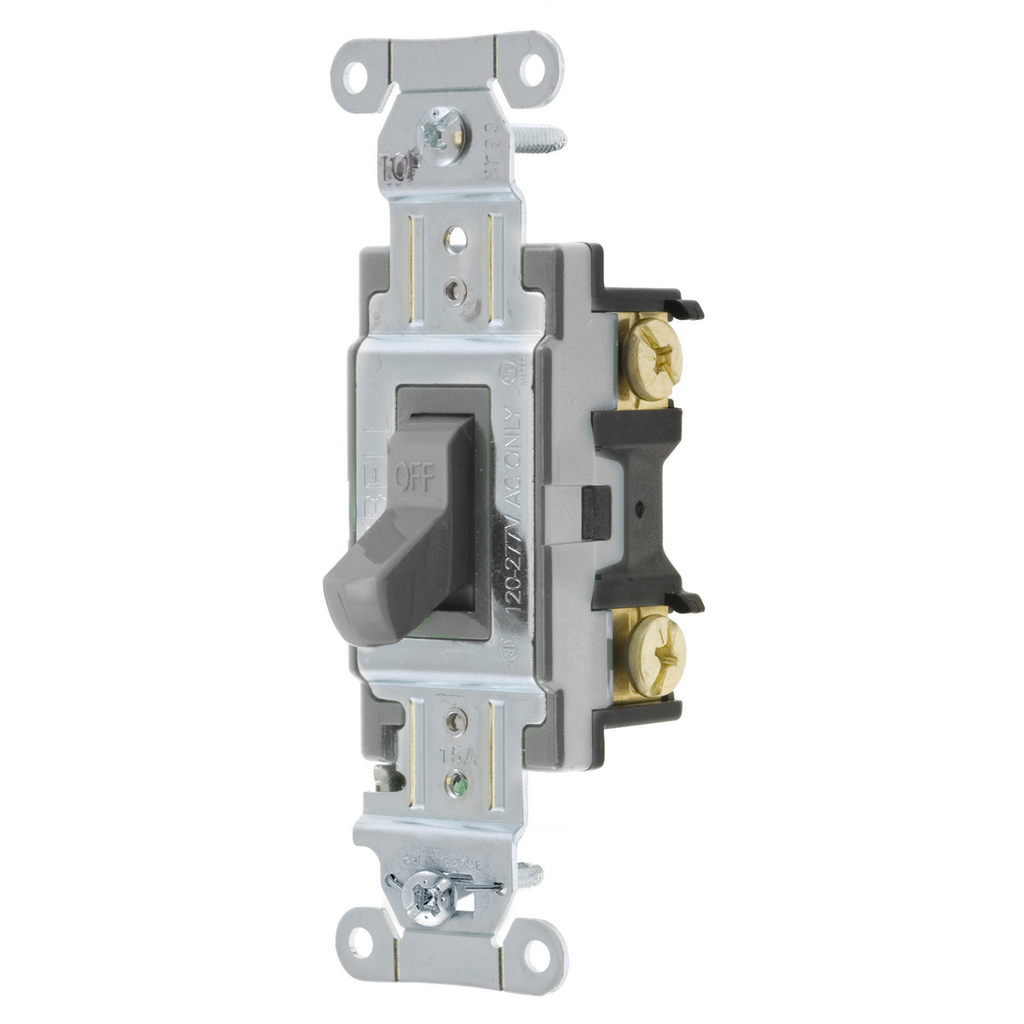

Switches and Lighting Controls, Toggle Switch, Commercial Grade, Double Pole, 15A 120/277V AC, Back and Side Wired, Gray

This commercial specification grade toggle switch is designed for electrical distributors and lighting solutions providers requiring reliable, high-performance switching devices. It supports double pole operation with a 15 ampere rating at 120/277 volts AC, suitable for indoor dry environments. The switch features back and side wiring options and is built for use in commercial electrical and lighting control applications.

Specifications

• Application: Commercial Spec Grade
• Current Rating: 15 amperes
• Voltage Rating: 120/277V AC
• Number of Poles: Double Pole
• Contact Configuration: Two Position
• Connection: Back and Side Wired
• Material: Nylon toggle, Thermoplastic base and top
• Color: Gray
• Mounting: Screw Mount
• Width: 1.91 in
• Operating Cycles: 50,000 Cycles
• Contact Rating: Per UL 20
• Environmental Conditions: Indoor Dry unless protected by additional means
• Manufacturer: Hubbell Wiring Device-Kellems
• Manufacturer Part Number: CSB215GY
• Country of Origin: China

Features

• Positive Snap action for reliable switching
• Thread cleaning captive mounting screw for secure installation
• Abuse resistant nylon toggle for durability
• Steel, zinc plated bridge provides corrosion resistance
• UL Listed and CSA Certified
• Fed. Spec. W-S-896 compliant
