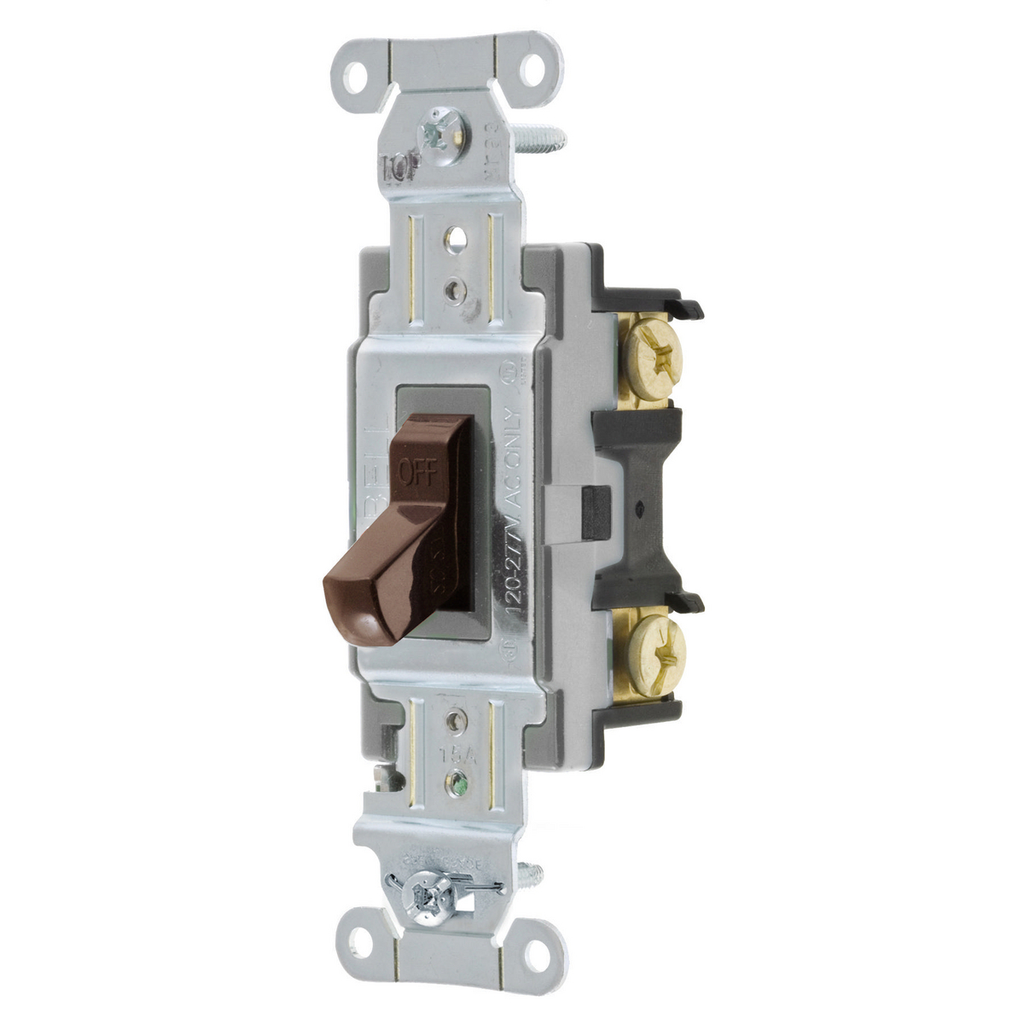

Switches and Lighting Controls Toggle Switch - Commercial Grade Double Pole 15A

This commercial grade toggle switch is designed for electrical distributors and lighting solutions providers requiring reliable, specification-grade switchgear. It is a double pole switch rated for 15 amperes at 120/277V AC, suitable for commercial applications. The switch supports both back and side wiring, facilitating versatile installation in indoor dry environments when protected by additional means.

Specifications

• Application: Commercial Spec Grade
• Amperage: 15 amperes
• Voltage Rating: 120/277V AC
• Number of Poles: Double Pole
• Connection: Back and Side Wired
• Mounting: Screw Mount
• Material: Nylon Toggle, Thermoplastic Top (Gray) and Base (Black)
• Contact Rating: Per UL 20
• Contact Configuration: Two Position
• Operating Cycles: 50,000 Cycles
• Environmental Conditions: Indoor Dry (unless protected by additional means)
• Width: 1.910 in
• Product Weight: 0.1500 lbs
• Country of Origin: China

Features

• Positive Snap Action for reliable switching
• Thread cleaning captive mounting screw for secure installation
• Abuse resistant nylon toggle
• Steel, zinc plated bridge for corrosion resistance
• UL Listed and CSA Certified
• Dielectric voltage withstands 1500V AC minimum for 1 minute
• Overload capacity minimum 4.8 times rated current for 100 cycles
• Temperature rise limited to 30°C maximum at rated current
• Terminal accommodations for #14 AWG minimum to #10 AWG maximum solid and stranded copper wire
• Flammability rating UL 94V-2
• Operating temperature range: -40°C to 75°C continuous
