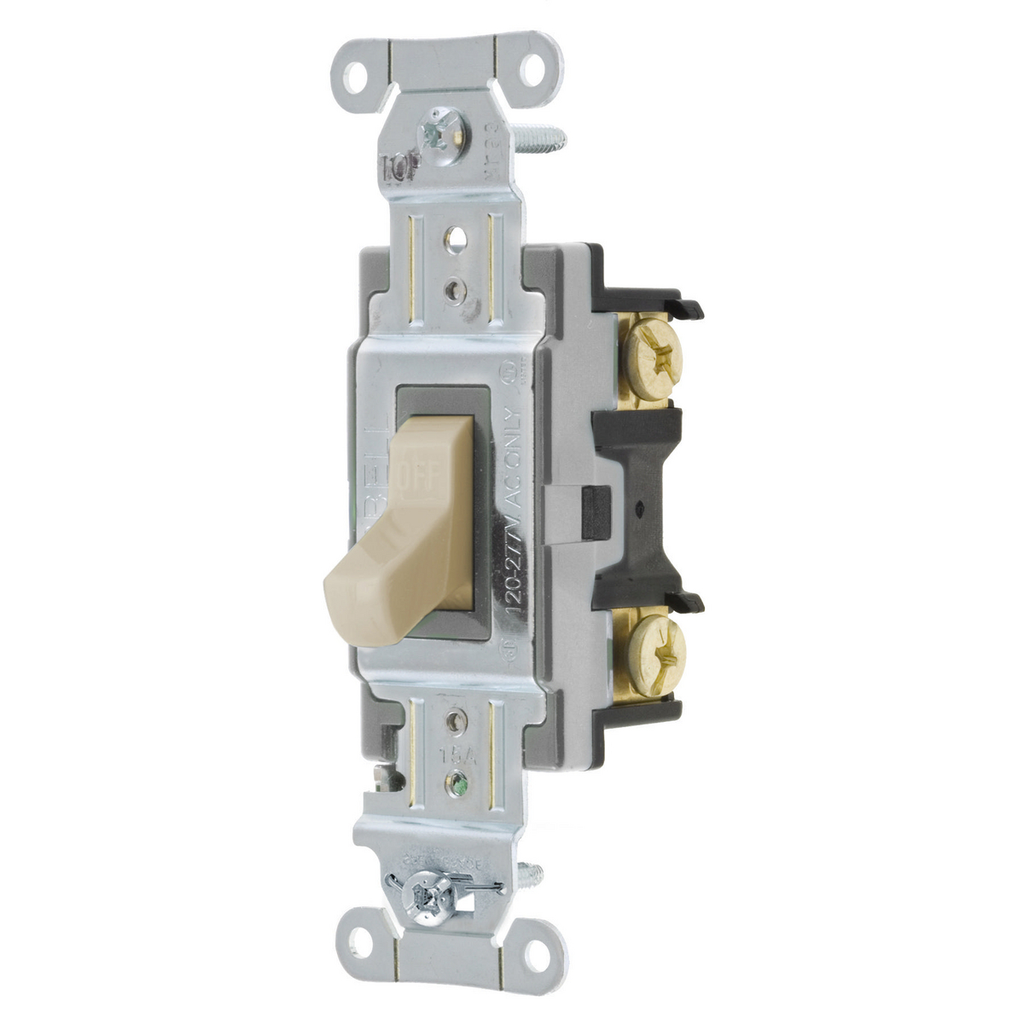

Switches and Lighting Controls, Toggle Switch, Commercial Grade, Double Pole, 15A 120/277V AC, Almond

This commercial grade toggle switch is designed for electrical distributors and lighting solutions providers requiring reliable double pole switching for 15 ampere circuits at 120 to 277 volts AC. It supports back and side wiring, making it suitable for a variety of commercial and industrial applications involving wire and cable installations. The switch is constructed with durable nylon materials and features corrosion-resistant components, meeting specification-grade performance standards.

Specifications

• Manufacturer: Hubbell Wiring Device-Kellems
• Manufacturer Part #: CSB215AL
• Amperage Rating: 15 A
• Voltage Rating: 120-277 V AC
• Number of Poles: Double Pole
• Material: Nylon (toggle), Thermoplastic (top and base)
• Color: Almond
• Dimensions (L x W x H): 4.16 in x 1.91 in x 1.66 in
• Terminal Wire Accommodation: #14 AWG min. to #10 AWG max., solid and stranded copper wire only
• Dielectric Voltage Withstand: 1500 V AC minimum for 1 minute
• Overload Capacity: Minimum 4.8 times rated current for 100 cycles
• Temperature Rise: 30°C maximum at rated current
• Operating Temperature Range: -40°C to 75°C continuous
• Flammability Rating: UL 94V-2
• Country of Origin: China
• Product Weight: 0.15 lb

Features

• Thread cleaning captive mounting screw for secure installation
• Abuse resistant nylon toggle for durability
• Steel zinc-plated mounting bridge providing corrosion resistance
• Silver alloy contacts for reliable electrical performance
• Brass terminal screws and ground screw for secure wiring connections
• Auto grounding mounting bridge enhances safety
