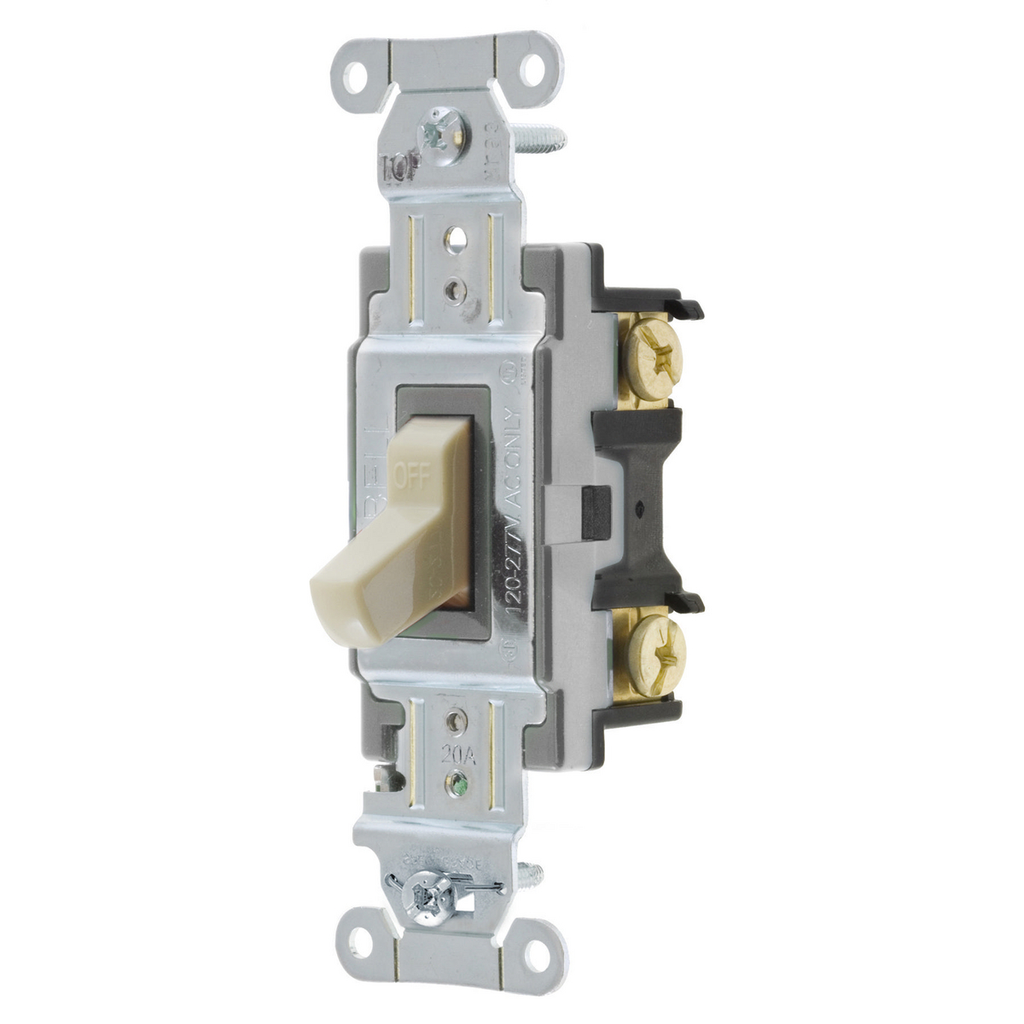

Specification Grade Commercial Series Toggle Switches by Hubbell Wiring Device-Kellems

This Specification Grade Commercial Series toggle switch is designed for general purpose AC applications in commercial environments. It is a single pole switch rated for 20 amperes at 120/277 volts AC, suitable for lighting solutions and electrical distribution systems requiring reliable switching. The switch features side wired connections and an ivory nylon toggle, making it a practical choice for electrical distributors and switchgear suppliers focused on durable and specification-grade components.

Specifications

• Manufacturer: Hubbell Wiring Device-Kellems
• Manufacturer Part #: CS120I
• Application: Commercial Spec Grade
• Current Rating: 20 amperes
• Voltage Rating: 120-277 VAC
• Number of Poles: Single Pole
• Connection: Side Wired Only
• Material: Nylon
• Color: Ivory
• Mounting: Screw Mount
• Contact Rating: Per UL 20
• Contact Configuration: Two Position
• Operating Temperature: Maximum continuous 75°C, Minimum continuous -40°C without impact
• Operating Cycles: 50,000 Cycles
• Dimensions (L x W x H): 4.18 in x 1.49 in x 1.83 in
• Product Weight: 0.15 lb
• Environmental Conditions: Indoor dry unless protected by additional means
• Compliance: UL Listed, RoHS Compliant
• Country of Origin: China

Features

• Thread cleaning captive mounting screw for secure installation
• Abuse resistant nylon toggle for durability
• Steel zinc plated bridge providing corrosion resistance
• Auto grounding mounting bridge with zinc plated steel
• Silver alloy contacts ensuring reliable electrical performance
• Brass ground screw and terminal screws for enhanced conductivity
• Designed for side wired connection only to meet specification grade standards
