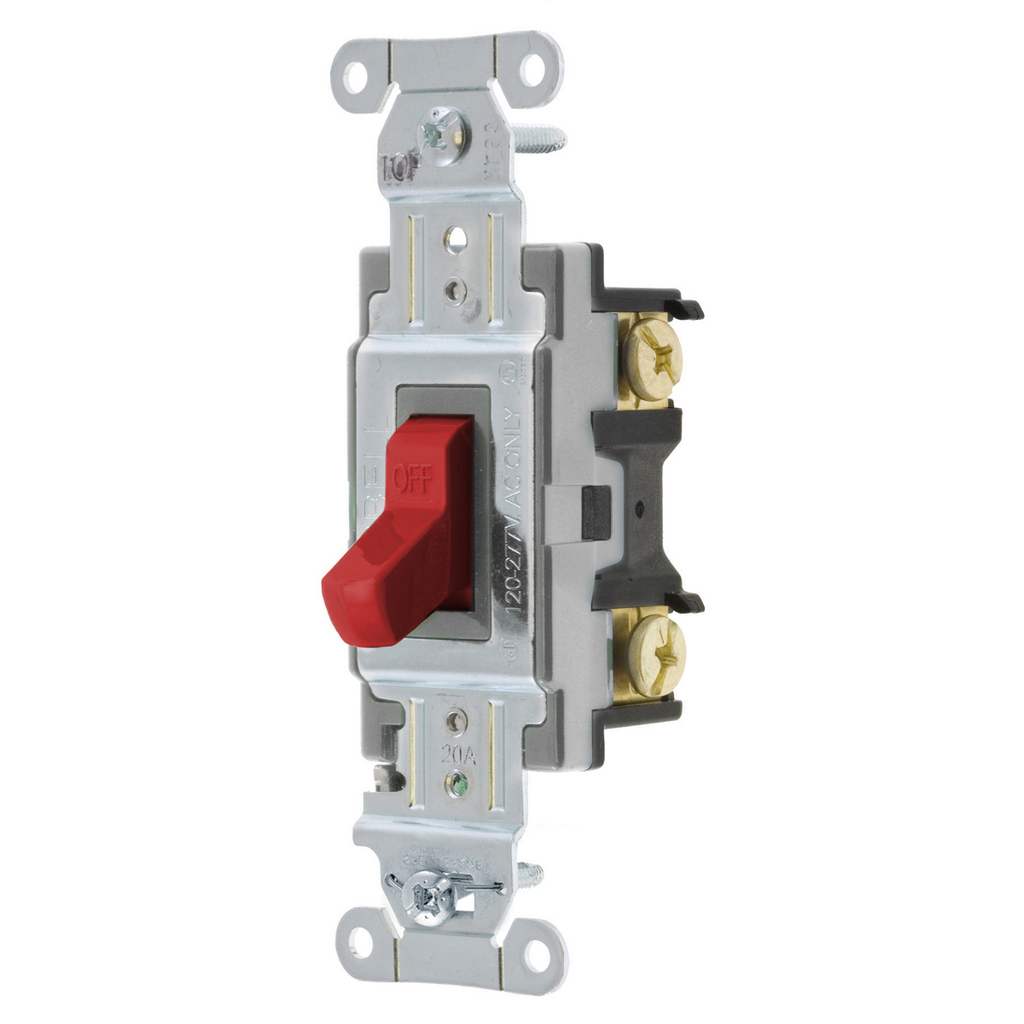

Switches and Lighting Controls, Specification Grade Commercial Series, Toggle Switches, General Purpose AC, Single Pole, 20A 120/277V AC, Back and Side Wired, Red
SKU: #139411
Part: #CSB120R
UPC: 783585154077
Switches and Lighting Controls, Specification Grade Commercial Series, Toggle Switches, General Purpose AC, Single Pole, 20A 120/277V AC, Back and Side Wired, Red
SKU: #139411
Part: #CSB120R
UPC: 783585154077
Description
Switches and Lighting Controls Specification Grade Commercial Series Toggle Switches
This specification grade toggle switch is designed for commercial electrical applications, providing reliable general-purpose AC switching. Suitable for use by electrical distributors and lighting solutions providers, it supports 20 amperes at 120/277V AC with single pole operation. The switch features back and side wiring and is intended for indoor dry environments unless additional protection is applied. It is compatible with standard screw mounting and constructed with durable nylon material for longevity.
Specifications
- Manufacturer: Hubbell Wiring Device-Kellems
- Manufacturer Part #: CSB120R
- Application: Commercial Spec Grade
- Amperage Rating: 20 A
- Current: 20 amperes
- Voltage: 120/277V AC
- Number of Poles: Single Pole
- Contact Configuration: Two Position
- Connection: Back and Side Wired
- Action: Positive Snap
- Operating Cycles: 50,000 Cycles
- Material: Nylon
- Color: Red
- Mounting: Screw Mount
- Contact Rating: Per UL 20
- Width: 1.900 in
- Product Weight: 0.1500 lb
- Environmental Conditions: Indoor Dry unless protected by additional means
- Country of Origin: China
Features
- Specification grade quality for commercial use
- General purpose AC toggle switch with single pole operation
- Back and side wired for flexible installation
- Durable nylon construction with red toggle for visibility
- Positive snap action for reliable switching performance
- Designed for indoor dry environments
- Complies with UL contact rating standards
- Long operating life with 50,000 cycles
