Switches and Lighting Controls, Occupancy Sensors, H-Moss Control Unit, 120/277V AC 60HZ, For use with Ceiling and Wall Mounted Sensors, Manual On
SKU: #139927
Part: #CU300M
UPC: 783585159362
Switches and Lighting Controls, Occupancy Sensors, H-Moss Control Unit, 120/277V AC 60HZ, For use with Ceiling and Wall Mounted Sensors, Manual On
SKU: #139927
Part: #CU300M
UPC: 783585159362
Total Price: $89.10 per each Sold in increments of 1 each
Description

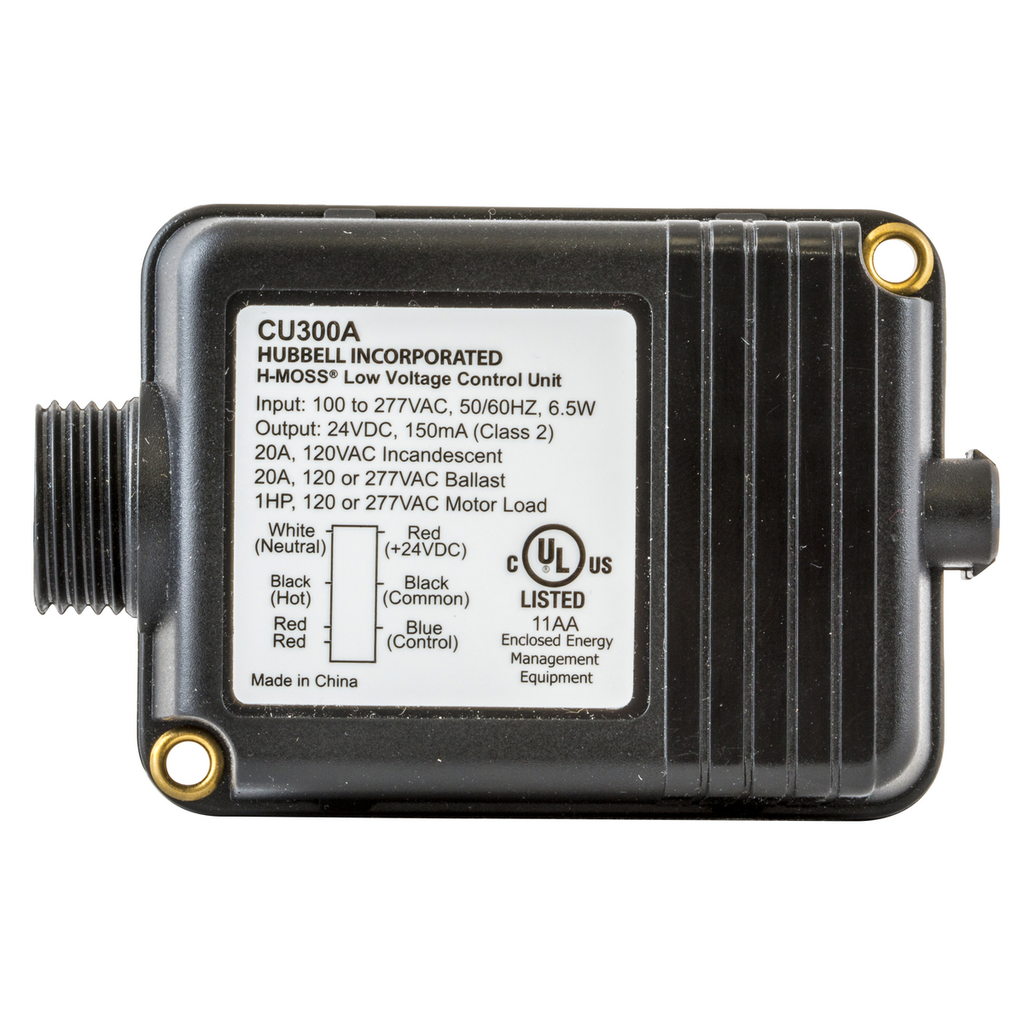

Switches and Lighting Controls, Occupancy Sensors, H-Moss Control Unit, 120/277V AC 60HZ, Manual On
This H-Moss Control Unit by Hubbell Wiring Device-Kellems is designed for use with ceiling and wall mounted occupancy sensors in manual ON applications. It serves as a key component in lighting control systems for electrical distributors and lighting solutions providers, enabling efficient management of wire and cable connections and integration with switchgear suppliers. The unit operates at 120/277V AC 60Hz and supports manual ON operation to control lighting loads in indoor dry environments unless protected by additional means.
Specifications
- Application: Manual On
- Voltage: 120/277V AC 60Hz
- Load Ratings: Incandescent - 0 to 1800 Watts (120V), Ballast - 0 to 2400 Watts (120V), Ballast - 0 to 5540 Watts (277V)
- Control Output: Input Voltage
- Operating Cycles: 6,000 Cycles Minimum
- Material: Thermoplastic
- Color: Black
- Mounting: Screw Mount
- Connector: Wire Leads
- Width: 3.4 in
- Product Weight: 18.15 lbs
- Environmental Conditions: Indoor Dry Unless Protected By Additional Means
- Country of Origin: China
- Manufacturer: Hubbell Wiring Device-Kellems
- Manufacturer Part Number: CU300M
Features
- Manual ON input designed for use with a momentary pushbutton switch to close relay and turn on load
- Supports loads including incandescent, ballast, and motor loads up to 1HP at 120 or 277VAC
- Mounts inside or outside junction box or fluorescent ballast cavity
- Powers up to 4 sensors
- Short circuit protected 24VDC, 150mA Class 2 output
- Plenum rated for use in air handling spaces
- Compatible with Hubbell occupancy sensors and lighting control systems
