Features

• Optional Side Guard for close wall applications
• Clamping plate for secure back or side wiring
• Thermoset body provides resistance to electrical arc tracking
• Standard Product

Specifications

• Country of Origin: United States
• Current / Amperage Rating: 30 A
• Dimensions: 5.52 in x 4.4 in x 3.3 in
• Width: 4.620 in
• Each - Width: 4.620 in
• Height: 3.3 in
• Horsepower - Maximum: 20
• Industry Standard(s): CSA-C22.2 No.14 Industrial Control File LR-46186;UL 508, Industrial Control File #E70402
• Length: 5.52 in
• Performance: Electrical - Dielectric Voltage - Min. 2,200V AC minimum for 1 minute;Electrical - Electrical Life - Min. 6,000 Cycles at rated switch load;Electrical - Max. Working Voltage - 600V AC RMS;Environmental - Flammability - UL94HB/VO;Environmental - Operating Temperature - Max. 75°C,Min. -40°C continuous w/o impact;Mechanical - Mechanical Life - Min. 10,000 minimum cycles;Mechanical - Switch Rating - 25 inch pounds;Mechanical - Terminal Accommodations - #10 AWG Max;Mechanical - Terminal Torque - 20 inch pounds;Mechanical - Wire Type - Solid and stranded copper wire only
• Application: Red Slide
• Current Rating: 30
• Enclosure Type: NEMA 3R
• Size: 5.52 in x 4.4 in x 3.3 in
• Special Features: Standard Product
• Standard: CSA-C22.2 No.14 Industrial Control File LR-46186;UL 508, Industrial Control File #E70402
• Type: Disconnect Switches
• Amperage Rating: 30 A
• Connectivity: Pressure Terminal Screws
• Dielectric Strength: 2,200V AC minimum for 1 minute
• Display Size: Standard Sized Product
• Environmental Conditions: Indoor and Outdoor
• Load Capacity: Inductive
• Operating Cycles: 10,000 Cycles Minimum
• Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
• Phase: Single Phase
• Style: Standard Duty
• Wattage: 18000 W
• Weight: 1.55 lb.
• Class Code: A16

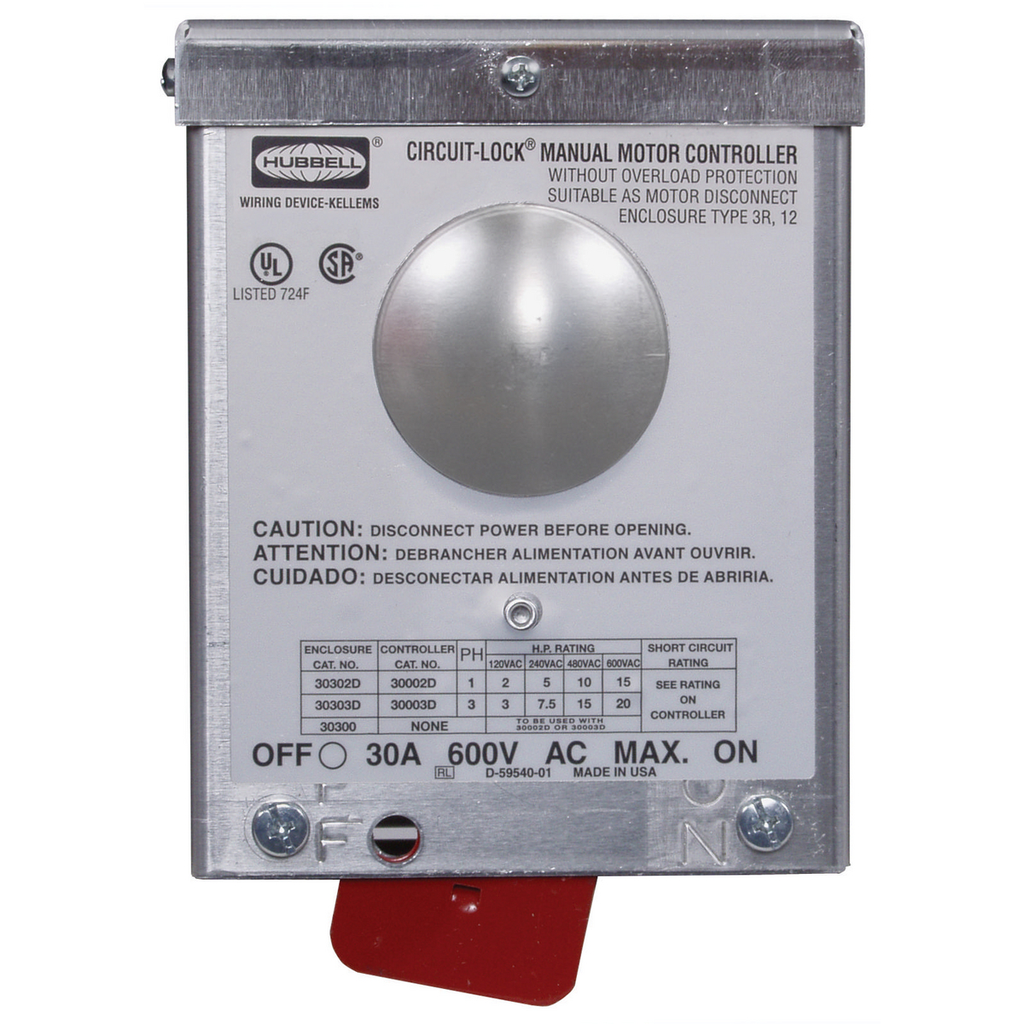

• Description - Invoice: 30A 600V 3P DISC SW W/NEMA 3R
• Freight Class Code: 06168002
• Harmonization Code: 8536509901
• Image Actual Or Representative: A
• MSDS Flag: No
• Replaced Catalog Number: HBL13R89
• Sub Class Code: A16A240
• Material - Mounting Hardware: Screw Mounting
• Series: Non-Fused
• Base Unit of Measure: EA
• BOX SIZE: 6.300x10.000x8.000 (in)
• Carton - Gross Weight per Pack: 6.6 lb.
• Carton - Number of Sub Packs: 4
• Carton - Pack Description: Carton
• Carton - SCC-14 Next Lower Level Sub Pack: 783585202686
• Carton - Total Units: 4 EA
• Each - Pack Description: Each
• Lowest Level UOM: Each
