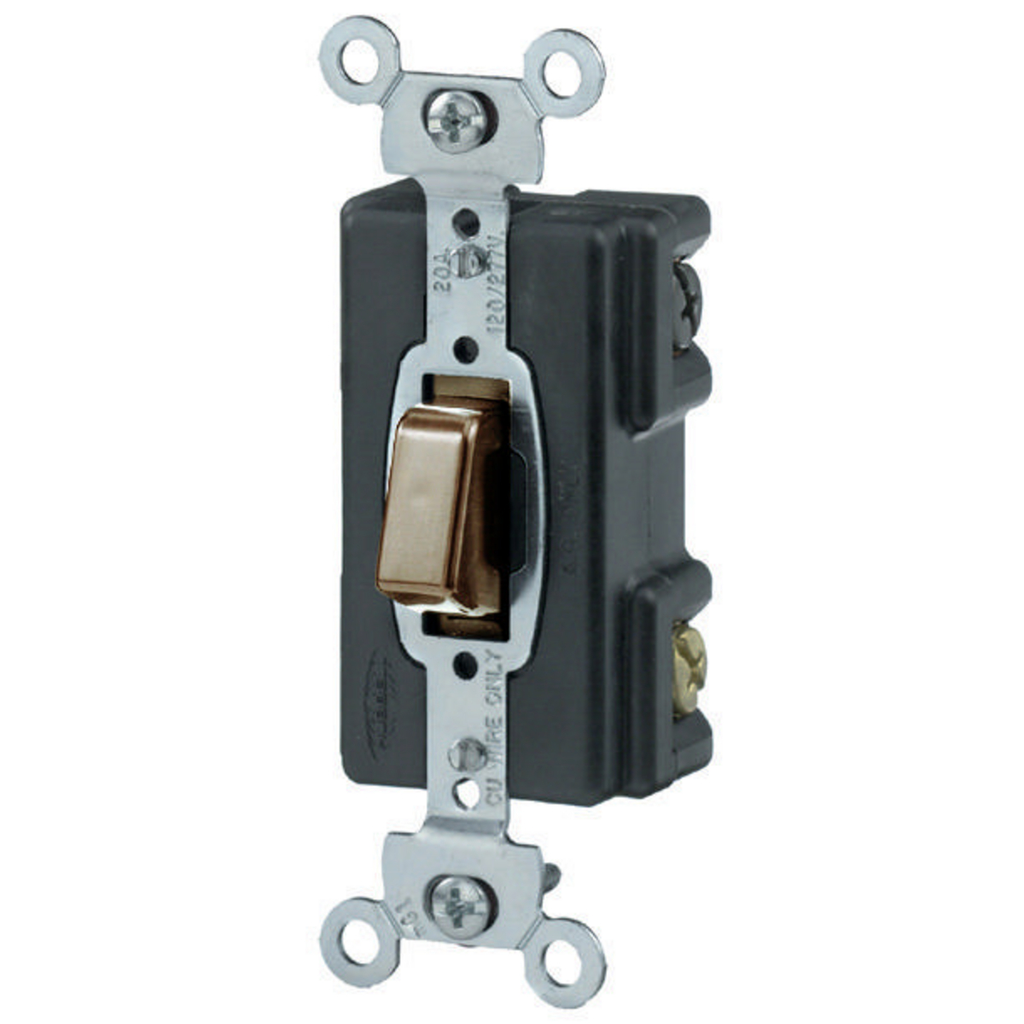

Switches and Lighting Controls, Industrial Grade, PresSwitch, General Purpose AC, Three Way, 20A 120/277V AC, Screw Terminals, Brown

This industrial-grade three-way PresSwitch is designed for controlling AC electrical loads from two points. Suitable for heavy duty industrial applications, it provides reliable switching performance with a 20 ampere rating at 120/277V AC. Ideal for electrical distributors and lighting solutions requiring durable wire and cable control devices or switchgear components. The switch features screw terminal connections and a push button actuator for secure and straightforward installation.

Specifications

• Application: Heavy Duty Industrial
• Amperage Rating: 20 A
• Current: 20 amperes
• Voltage: 120/277V AC
• Number of Poles: Single Pole
• Contact Configuration: Two Position
• Operating Cycles: 10,000 EST
• Color: Brown
• Width: 1.900 in
• Mounting: Mounting Screws
• Connection: Terminal Screws
• Actuator: Push Button
• Action: SPDT
• Product Weight: 0.2000 lb
• Country of Origin: United States
• Made in USA: Yes
• Environmental Conditions: Indoor Dry unless protected by additional means
• Manufacturer Part #: HBL1283
• Manufacturer Name: Hubbell Wiring Device-Kellems

Features

• Industrial-grade construction for heavy duty use
• Three-way switching capability for controlling AC loads from two locations
• Durable screw terminal connections ensure secure wiring
• Push button actuator for reliable operation
• Designed for indoor dry environments unless additional protection is applied
• Complies with general purpose AC applications at 20 amperes
• Manufactured in the USA by Hubbell Wiring Device-Kellems

Downloads & Links

• HBL1283 AutoCAD Drawing
• Warranty Document Asset Reference
• Catalog Page Asset Reference 1
• Hubbell Marine Full Line Catalog
• Sales Drawing Asset Reference
• Catalog Full Asset Reference
• Catalog Page Asset Reference 2
• Spec Sheet
