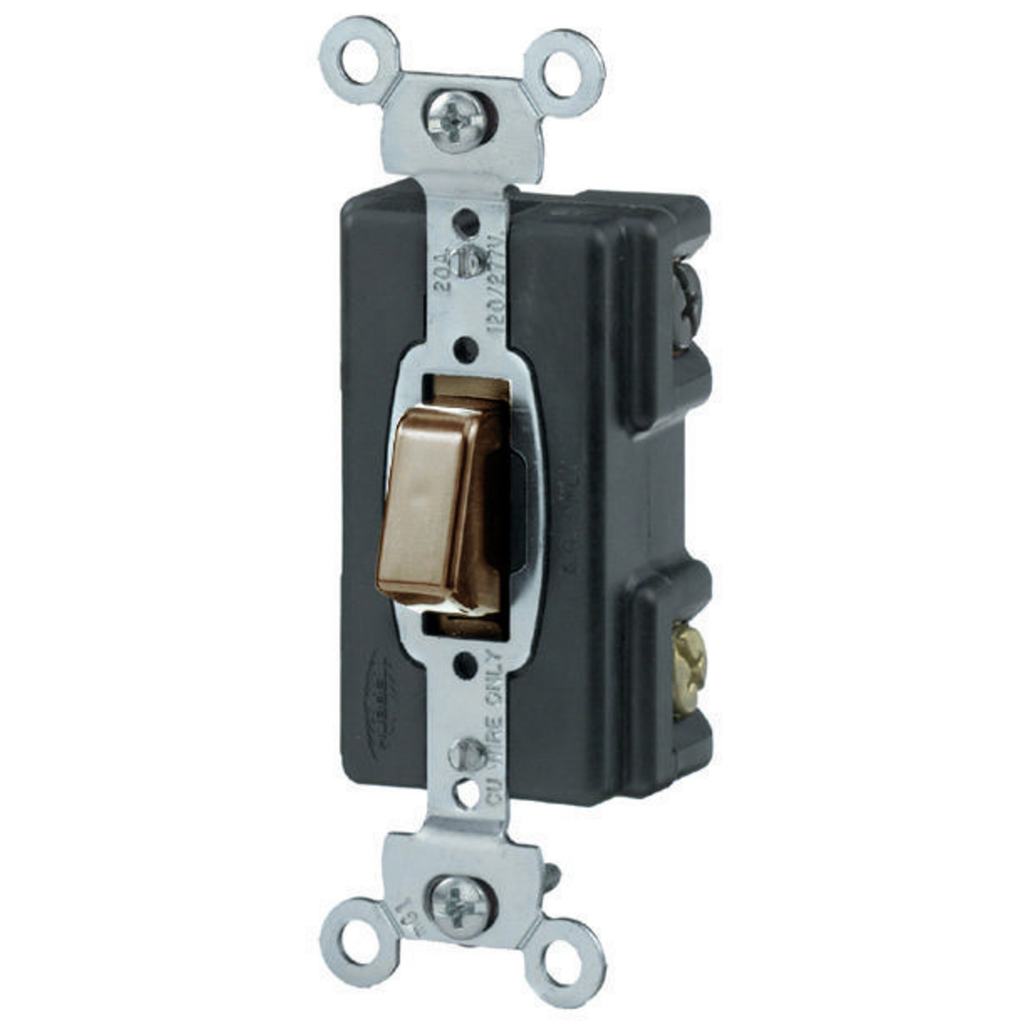

Switches and Lighting Controls, Industrial Grade PresSwitch, Four Way, 20A 120/277V AC

This industrial grade PresSwitch is designed for heavy duty electrical applications, suitable for use in lighting control and switchgear supply. It features a four-way configuration with a double pole double throw (DPDT) action, supporting 20 amperes at 120/277V AC. The switch is ideal for indoor dry environments unless additional protection is applied. Manufactured in the USA by Hubbell Wiring Device-Kellems, it is built to meet the demands of electrical distributors and professionals requiring reliable wire and cable control components.

Specifications

• Application: Heavy Duty Industrial
• Amperage Rating: 20 A
• Current: 20 amperes
• Voltage: 120/277V AC
• Number of Poles: Double Pole
• Action: DPDT
• Actuator: Push Button
• Connection: Terminal Screws
• Mounting: Mounting Screws
• Operating Cycles: 10,000 EST
• Color: Brown
• Width: 1.910 in
• Contact Configuration: Two Position
• Environmental Conditions: Indoor Dry unless protected by additional means
• Country of Origin: United States
• Made in USA: Yes
• Manufacturer Part #: HBL1284

Features

• Industrial grade construction for heavy duty applications
• DPDT four-way switch configuration for versatile wiring options
• Push button actuator for reliable operation
• Screw terminal connections for secure wiring
• Designed for indoor dry environments
• Manufactured in the USA ensuring quality and compliance
• Rated for 10,000 operating cycles
