Switches and Lighting Controls, Industrial Grade Pilot Light Toggle Switches - Three Way, 20A 120/277V AC

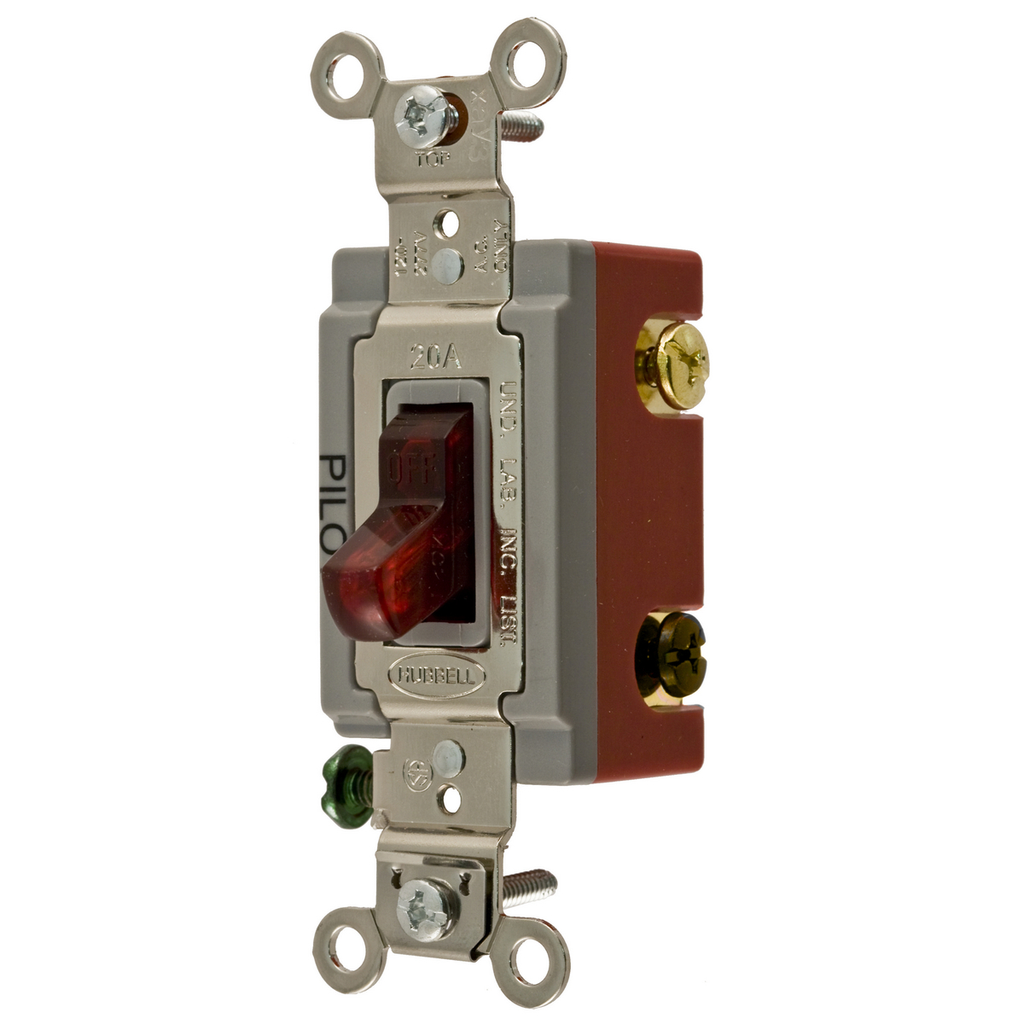

This industrial-grade pilot light toggle switch is designed for use in electrical distributor and lighting solutions applications requiring reliable switching control. It is suitable for general-purpose AC circuits and features a three-way configuration with a 20 amp rating at 120/277 volts AC. The switch supports back and side wiring connections and is intended for indoor dry environments unless additional protection is provided. Ideal for use in wire and cable assemblies or as part of switchgear supplier offerings, this robust switch combines durability with precision operation.

Specifications

• Manufacturer: Hubbell Wiring Device-Kellems
• Manufacturer Part #: HBL1223PL
• Application: Back and Side Wired
• Action: SPDT (Single Pole Double Throw)
• Current/Amperage: 20 amperes
• Contact Rating: Per UL 20
• Number of Poles: Single Pole
• Contact Configuration: Two Position
• Operating Cycles: 50,000 Cycles
• Mounting: Screw Mount
• Connection: Back and Side Wired
• Color: Red
• Width: 2.000 in
• Product Weight: 0.2000 lb
• Environmental Conditions: Indoor Dry unless protected by additional means
• Country of Origin: China
• Enclosure: None
• Insulation: None

Features

• Industrial grade construction suitable for heavy-duty environments
• Pilot light toggle switch providing visual indication of switch status
• Back and side wired terminals for flexible installation
• Red toggle actuator for easy identification
• Designed to meet UL safety standards with a contact rating per UL 20
• Durable screw mount design for secure installation
• Reliable operation with 50,000 operating cycles
